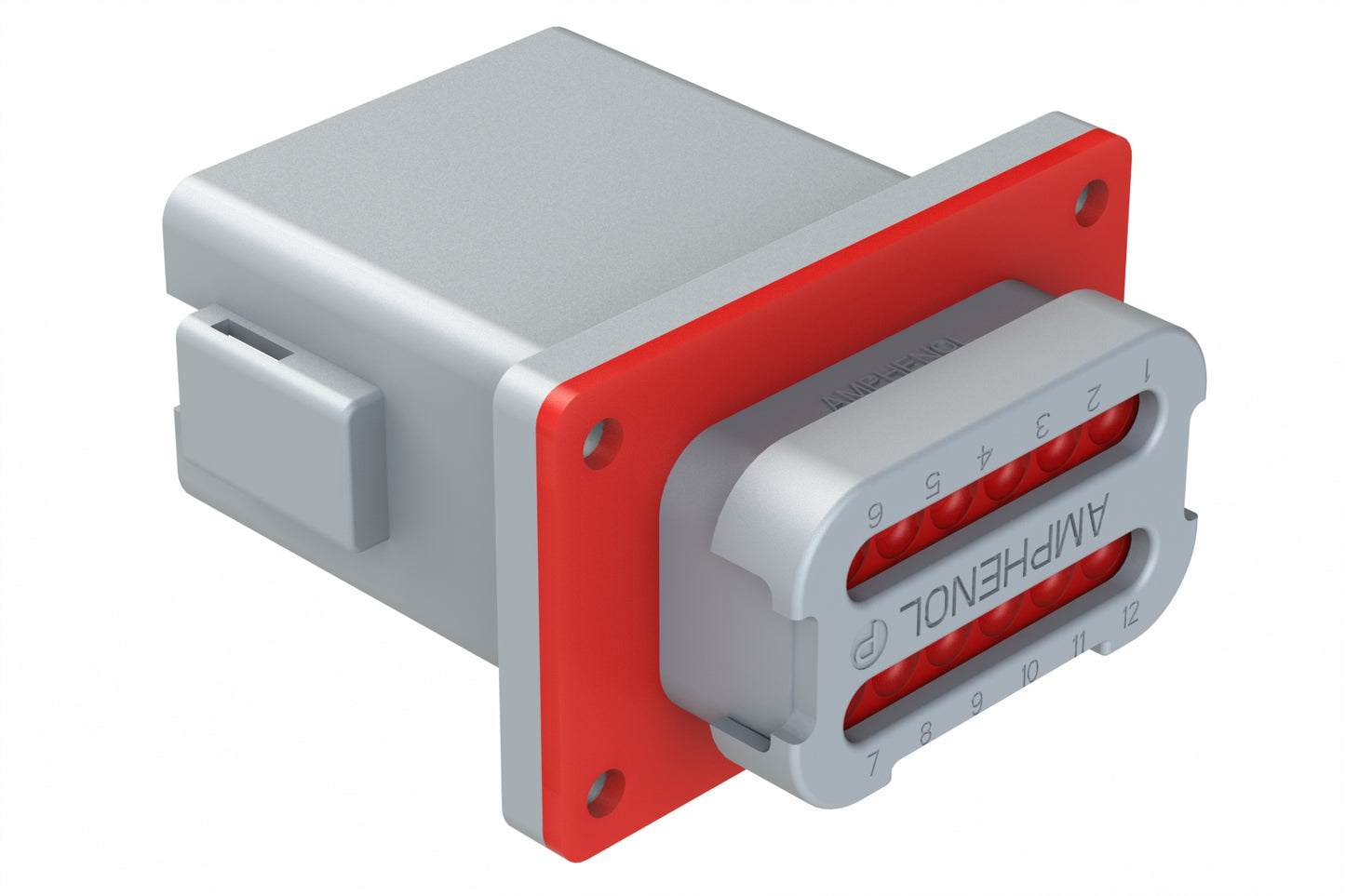

AT04-12PA-PM01-EC01 12 Position, Flange Mount Receptacle, A Position Key, Endcap
AT04-12PA-PM01-EC01 12 Position, Flange Mount Receptacle, A Position Key, Endcap
IMAGE MAY DIFFER
SKU:AT04-12PA-PM01-EC01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
No. of Positions: 12Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silcone Rubber
Mating Part: AT06-12SA* Plug
Wire Range: 14-20 AWG (2.24mm - 3.68mm)
Shape: Rectangular
12 Position, Flange Mount Receptacle, A Position Key, Endcap
