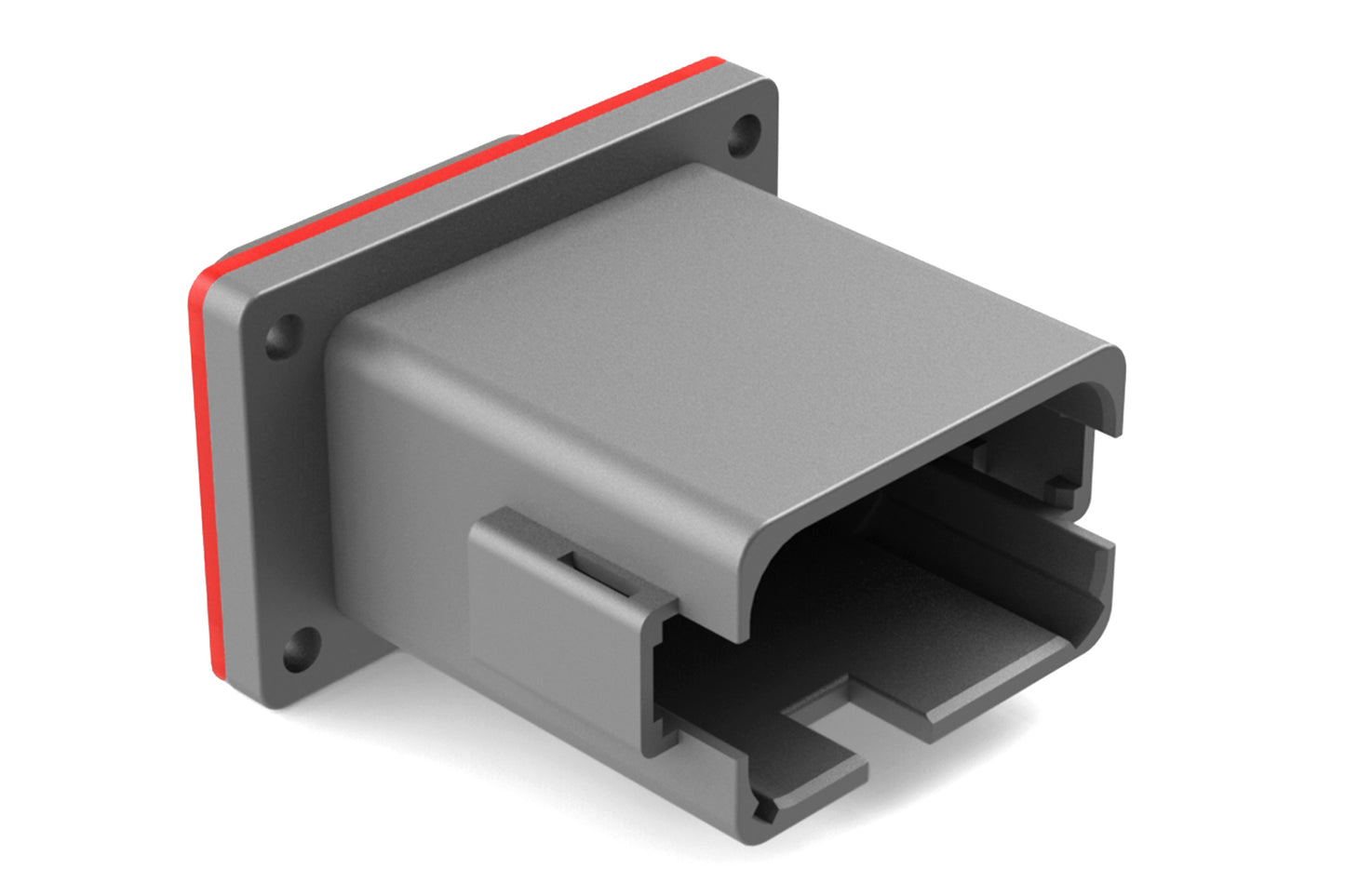

AT04-12PA-PM02 12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A

Name: AT04-12PA-PM02 12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A
Brand: Amphenol Sine Systems
SKU: AT04-12PA-PM02
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-12PA-PM02

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 12
Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (mated connector to panel) / IP69K & IP68 (mated connector to connector)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-12SA* Plug
Wedge Part: AW12P
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Wire Range: 14-20AWG
Shape: Rectangular

12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A
