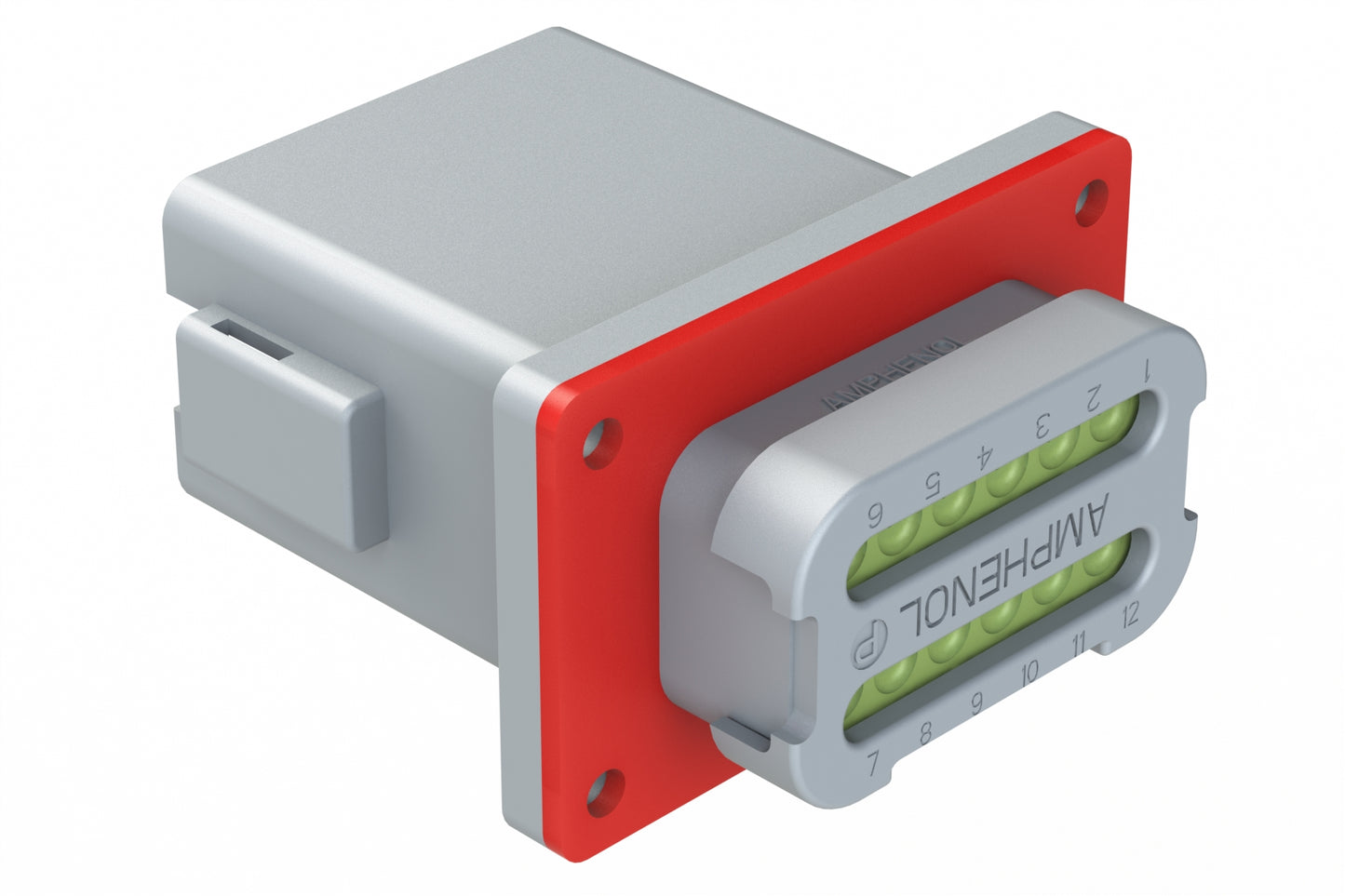

AT04-12PA-PM02-EC01 12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A, End Cap
AT04-12PA-PM02-EC01 12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A, End Cap
IMAGE MAY DIFFER
SKU:AT04-12PA-PM02-EC01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
No. of Positions: 12Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (mated connector to panel) / IP69K & IP68 (mated connector to connector)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silcone Rubber
Mating Part: AT06-12SA* Plug
Wire Range: 14-20 AWG (1.35mm - 3.05mm)
Shape: Rectangular
12 Position Receptacle, Panel Mount, Reduced Diameter, Keyed A, End Cap
