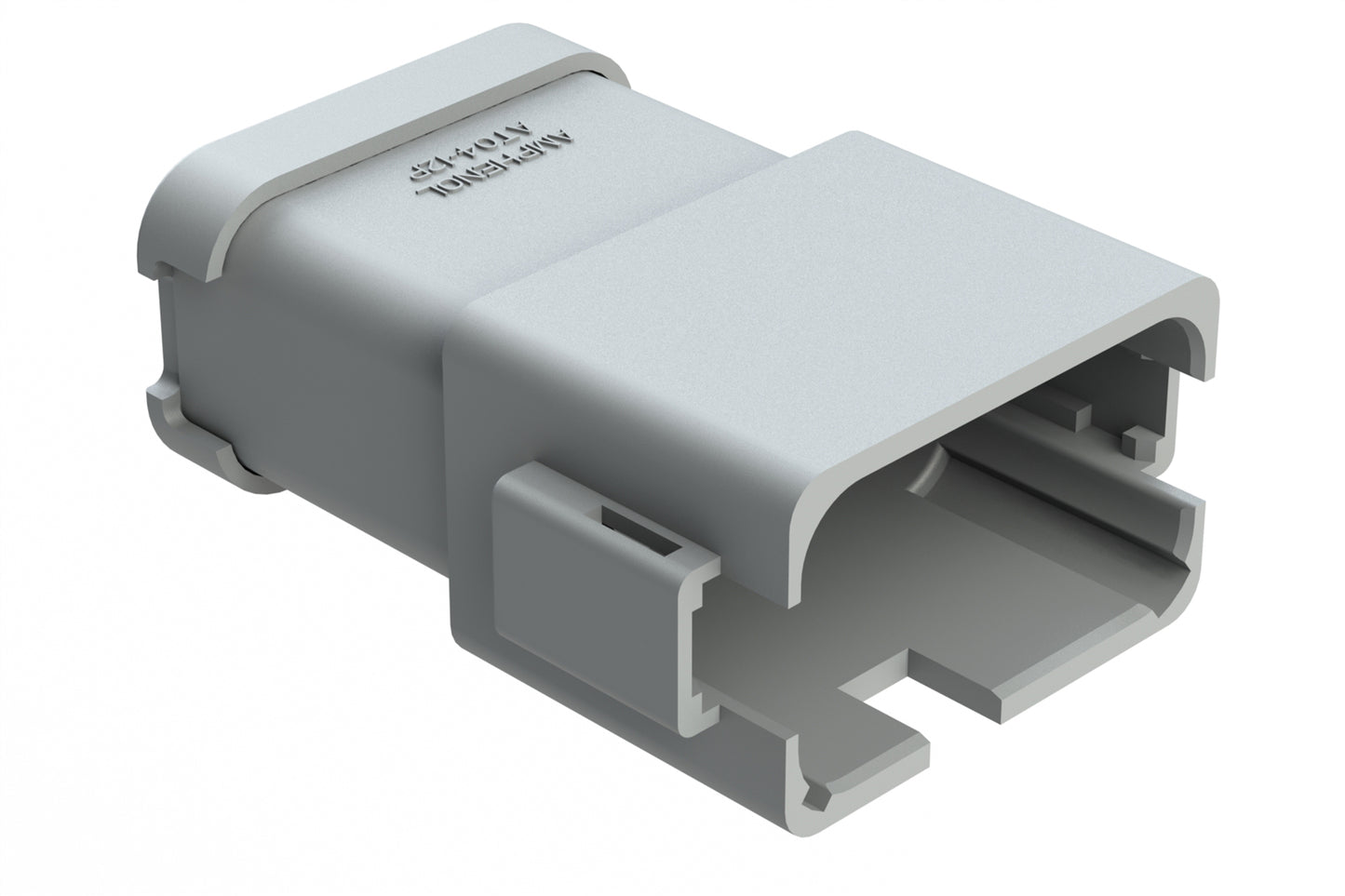

AT04-12PA-SS01 12-Way Receptacle, Male Connector with A Position Key and Extended Shroud and Solid Rear Grommet and Endcap, Grey. DT04-12PA-C017
AT04-12PA-SS01 12-Way Receptacle, Male Connector with A Position Key and Extended Shroud and Solid Rear Grommet and Endcap, Grey. DT04-12PA-C017
IMAGE MAY DIFFER
SKU:AT04-12PA-SS01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 12 A Position KeyGender: Male
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-12SA* Plug
Seal Diameter: Blocked Grommet
Shape: Rectangular
12-Way Receptacle, Male Connector with A Position Key and Extended Shroud and Solid Rear Grommet and Endcap, Grey
