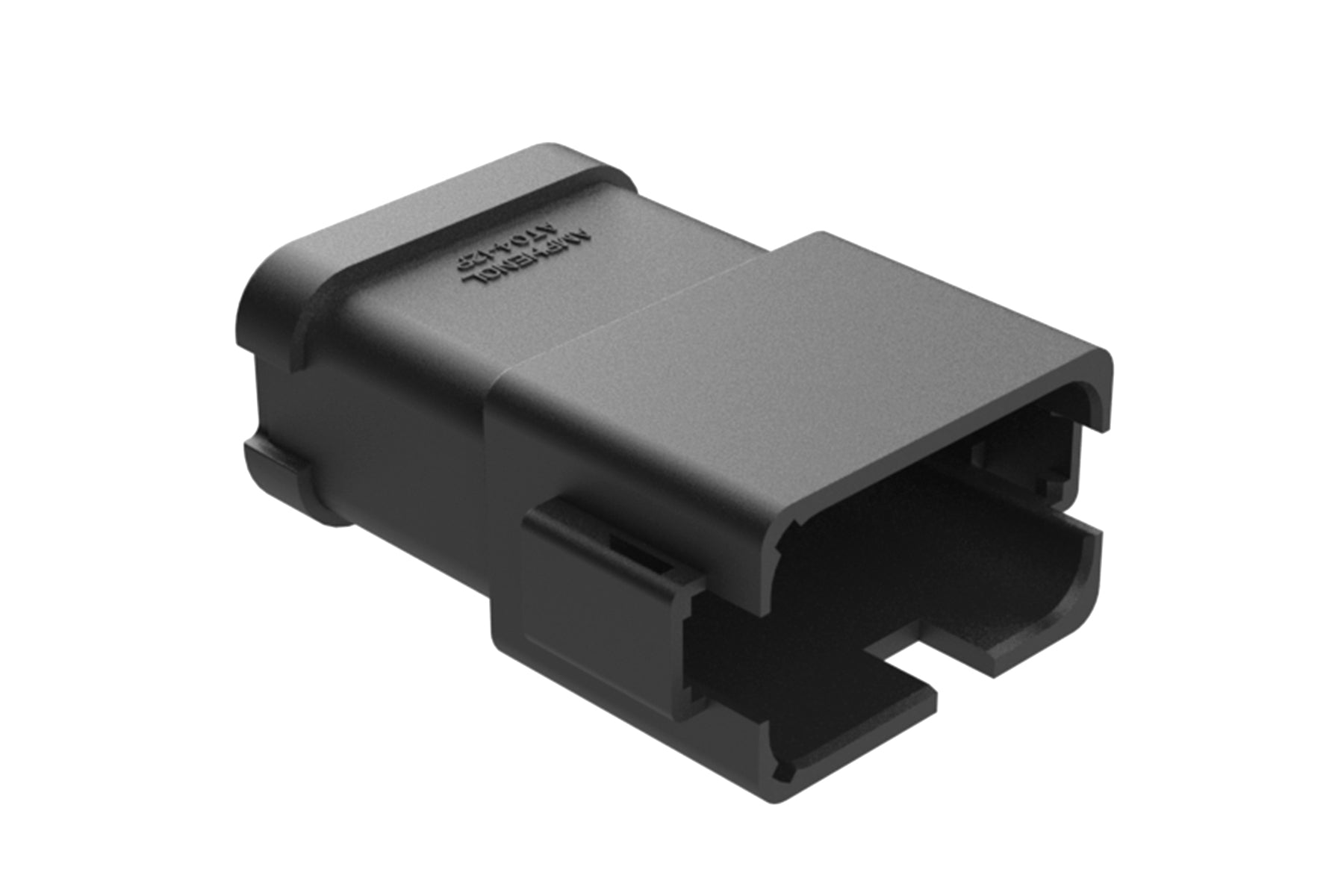

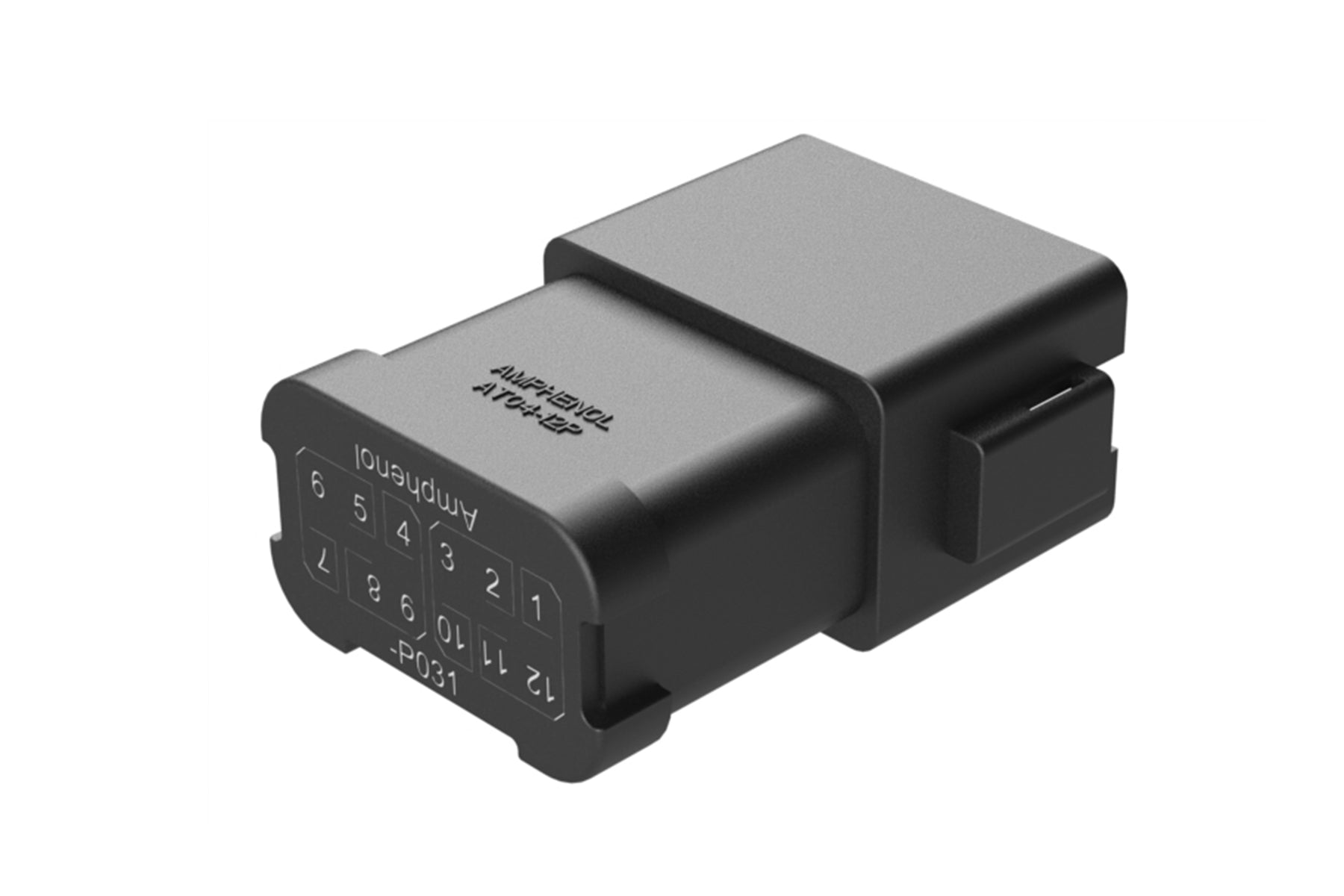

AT04-12PB-P031 12-way receptacle, (4) 3 Pin busbar=13 amps, gold plating, keyed B, black. Contacts included. DT04-12PB-P031
AT04-12PB-P031 12-way receptacle, (4) 3 Pin busbar=13 amps, gold plating, keyed B, black. Contacts included. DT04-12PB-P031
IMAGE MAY DIFFER
SKU:AT04-12PB-P031
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 12Gender: Male
Contact Size: contacts included
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Polyamide (PA)
Seal Material: Silicone Rubber
Mating Part: AT06-12SB* Plug
Wire Range: 14-20 AWG
Shape: Rectangular
12-way receptacle, (4) 3 Pin busbar=13 amps, gold plating, keyed B, black. Contacts included
