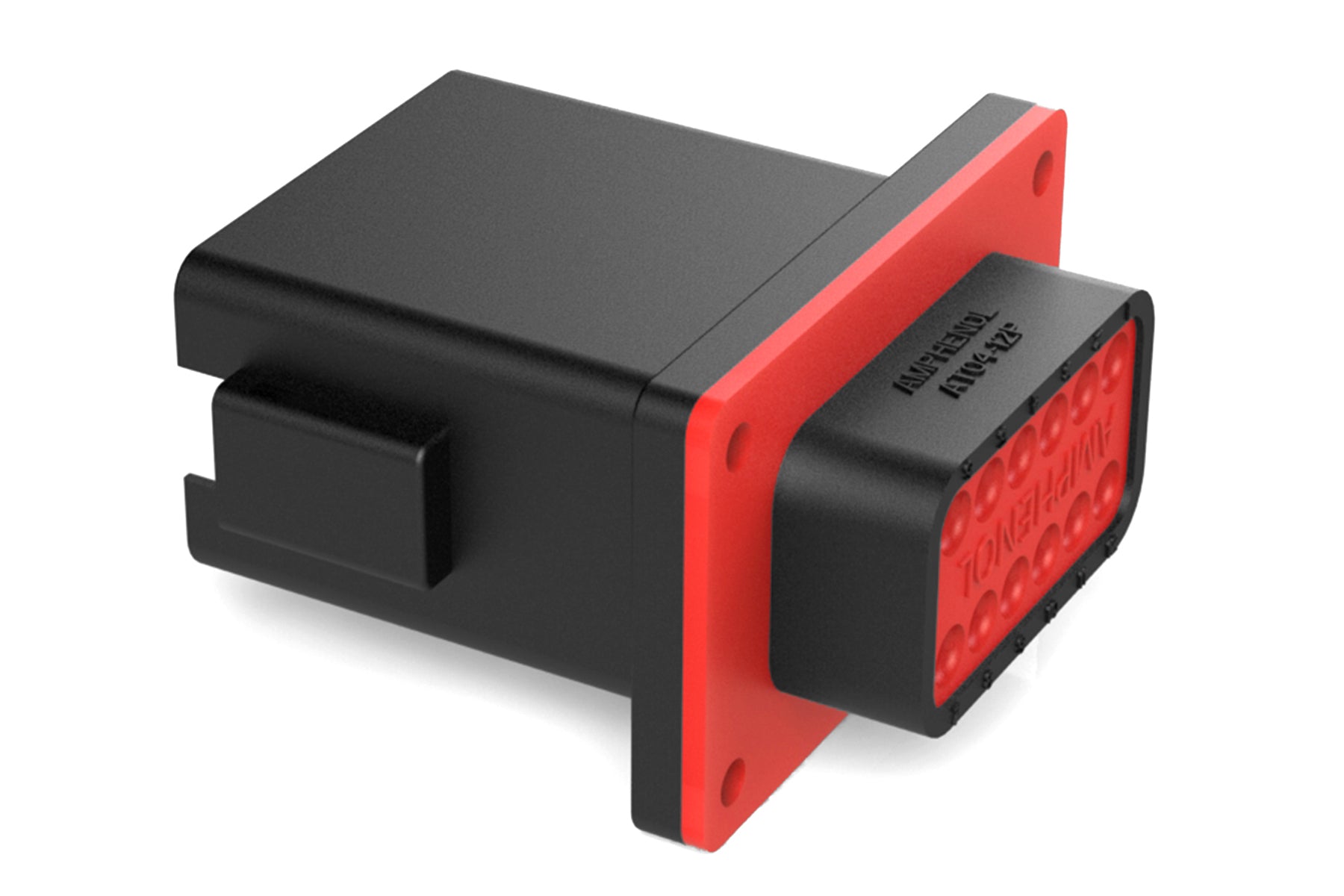

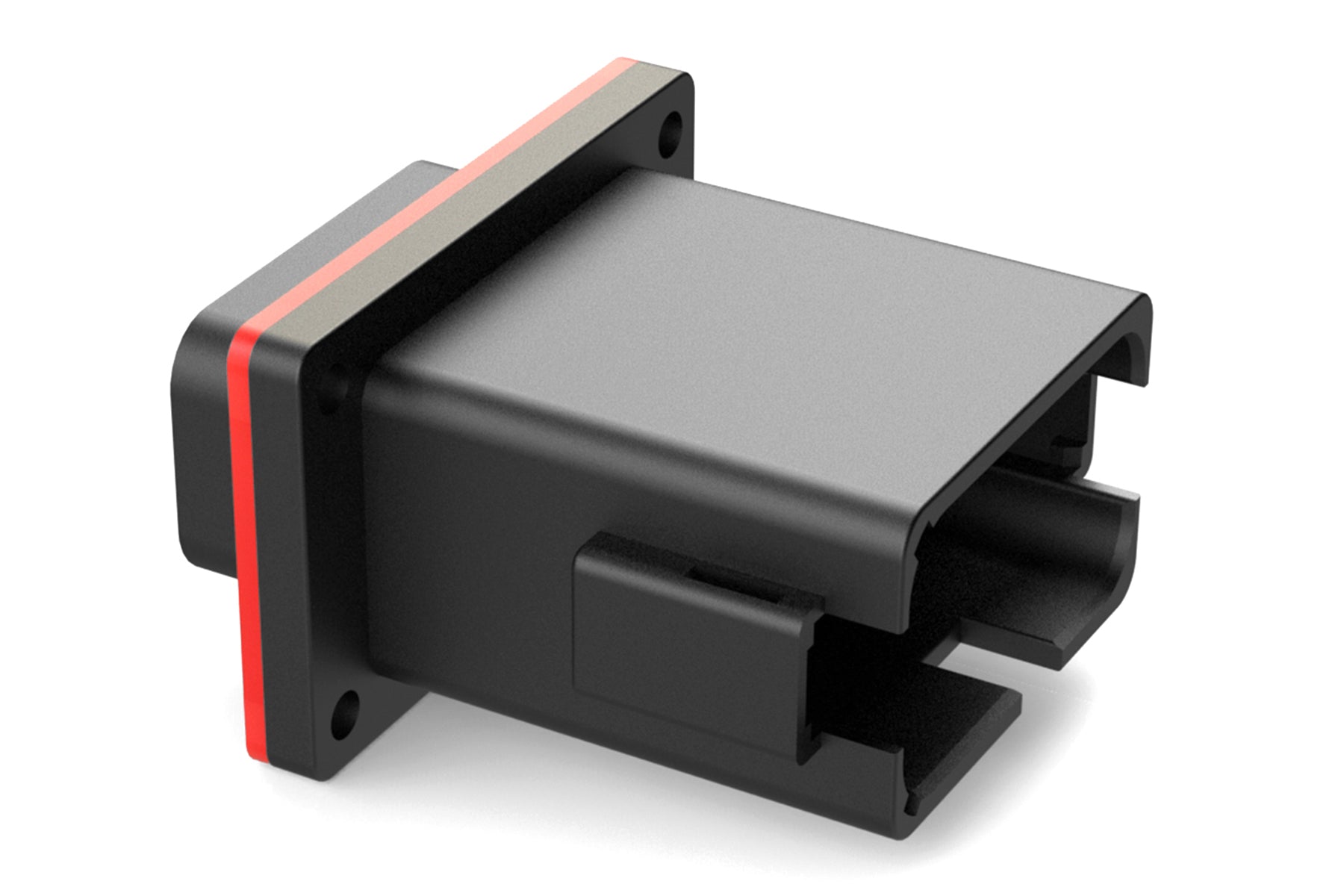

AT04-12PB-PM01 12 Position Receptacle, Keyed B
AT04-12PB-PM01 12 Position Receptacle, Keyed B
IMAGE MAY DIFFER
SKU:AT04-12PB-PM01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 12Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (mated connector to panel) / IP69K & IP68 (mated connector to connector)
Insulation Resistance: 1000 megohms min. at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-12SB* Plug
Wedge Part: AW12P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20AWG
Shape: Rectangular
12 Position Receptacle, Keyed B
