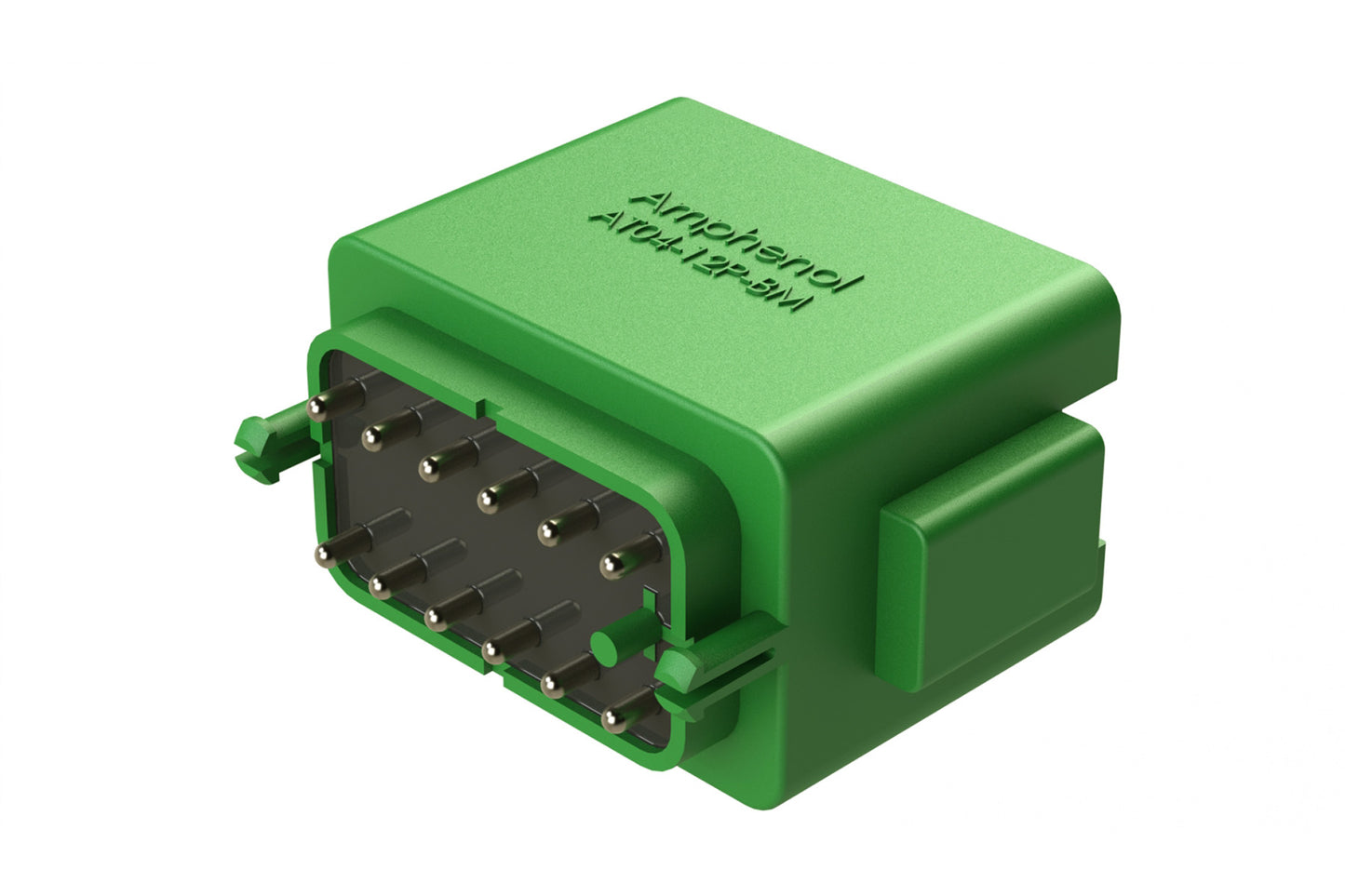

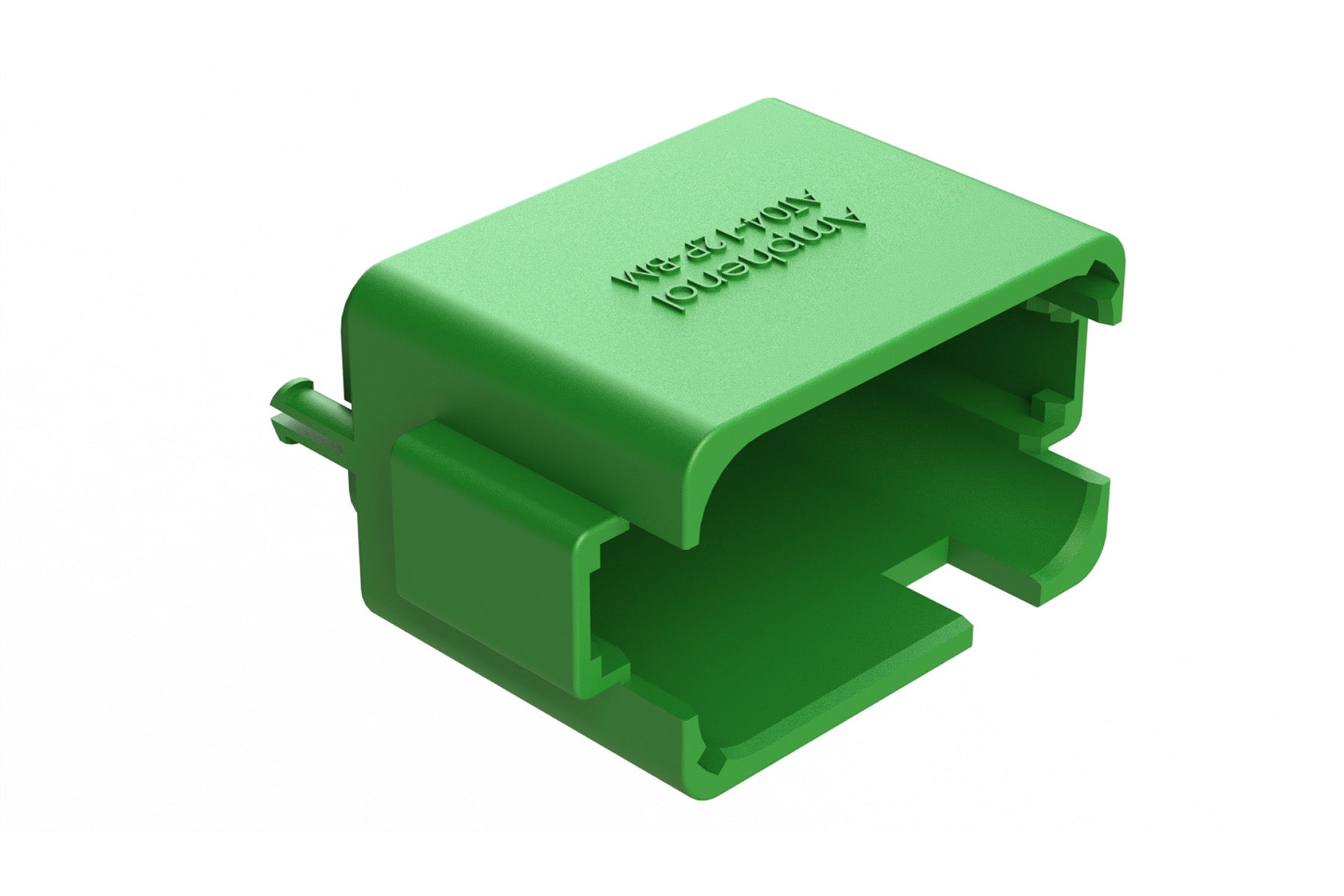

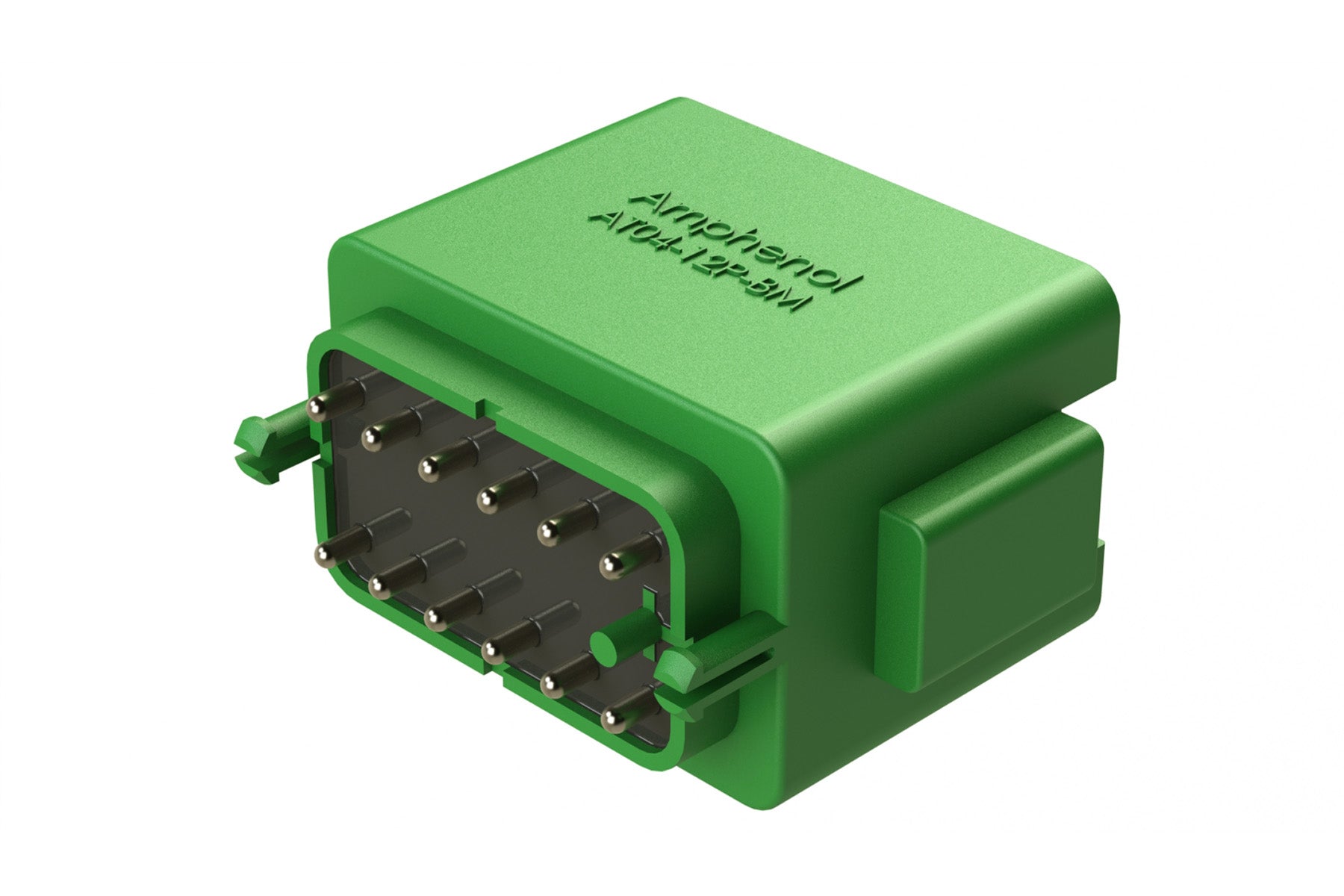

AT04-12PC-BM04 12 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, Potting, Green

Name: AT04-12PC-BM04 12 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, Potting, Green
Brand: Amphenol Sine Systems
SKU: AT04-12PC-BM04
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-12PC-BM04

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 12
Gender: Male
Contact Size: 16
Contact Material: Copper Alloy
Colour: Green
IP Rating: IP67 (mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Mating Part: AT06-12SC* Plug
Wire Range: 14-20 AWG
Shape: Rectangular

12 Position PCB Flangeless (Snap Fit) Board Mount Receptacle, Pin, Nickel Contact Plating, Potting, Green
