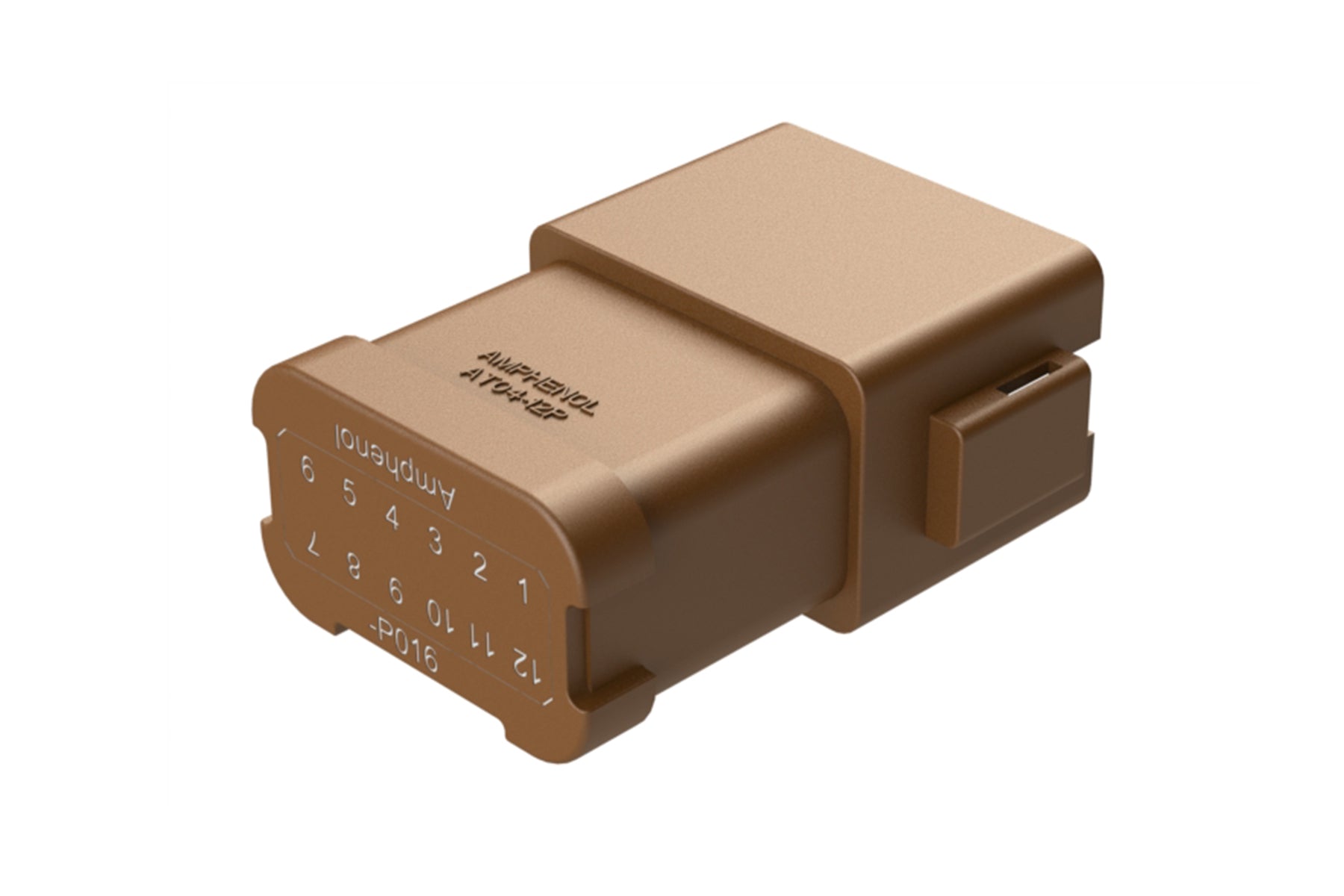

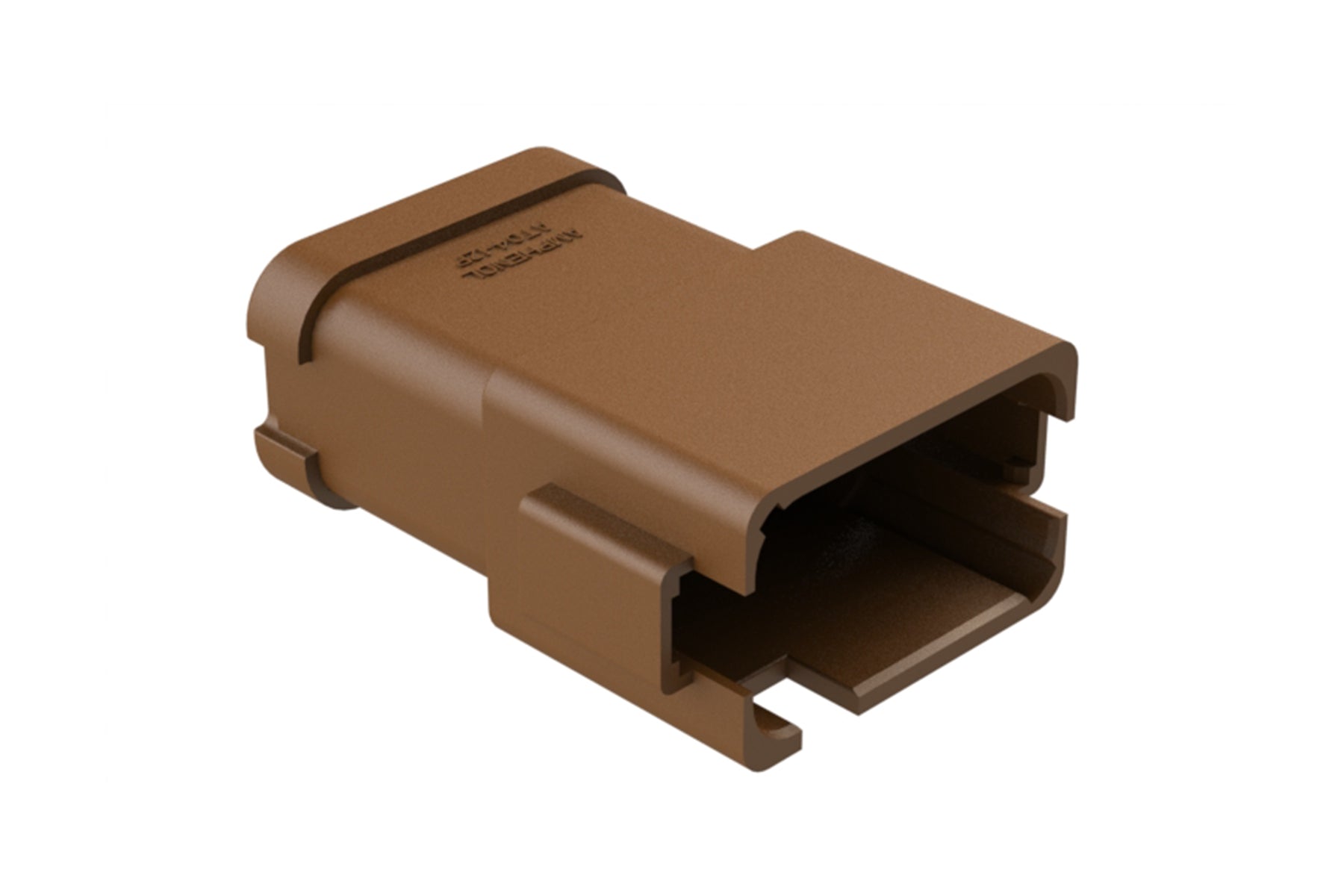

AT04-12PD-P016 12-way receptacle, (1) 12 Pin busbar=78 amps, gold plating, keyed D, brown. Contacts included. DT04-12PD-P016
AT04-12PD-P016 12-way receptacle, (1) 12 Pin busbar=78 amps, gold plating, keyed D, brown. Contacts included. DT04-12PD-P016
IMAGE MAY DIFFER
SKU:AT04-12PD-P016
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Specifications
No. of Positions: 12Gender: Male
Contact Size: contacts included
Contact Material: Copper Alloy
Colour: Brown
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Polyamide (PA)
Seal Material: Silicone Rubber
Mating Part: AT06-12SD* PLUG
Wire Range: 14-20 AWG
Shape: Rectangular
12-way receptacle, (1) 12 Pin busbar=78 amps, gold plating, keyed D, brown. Contacts included
