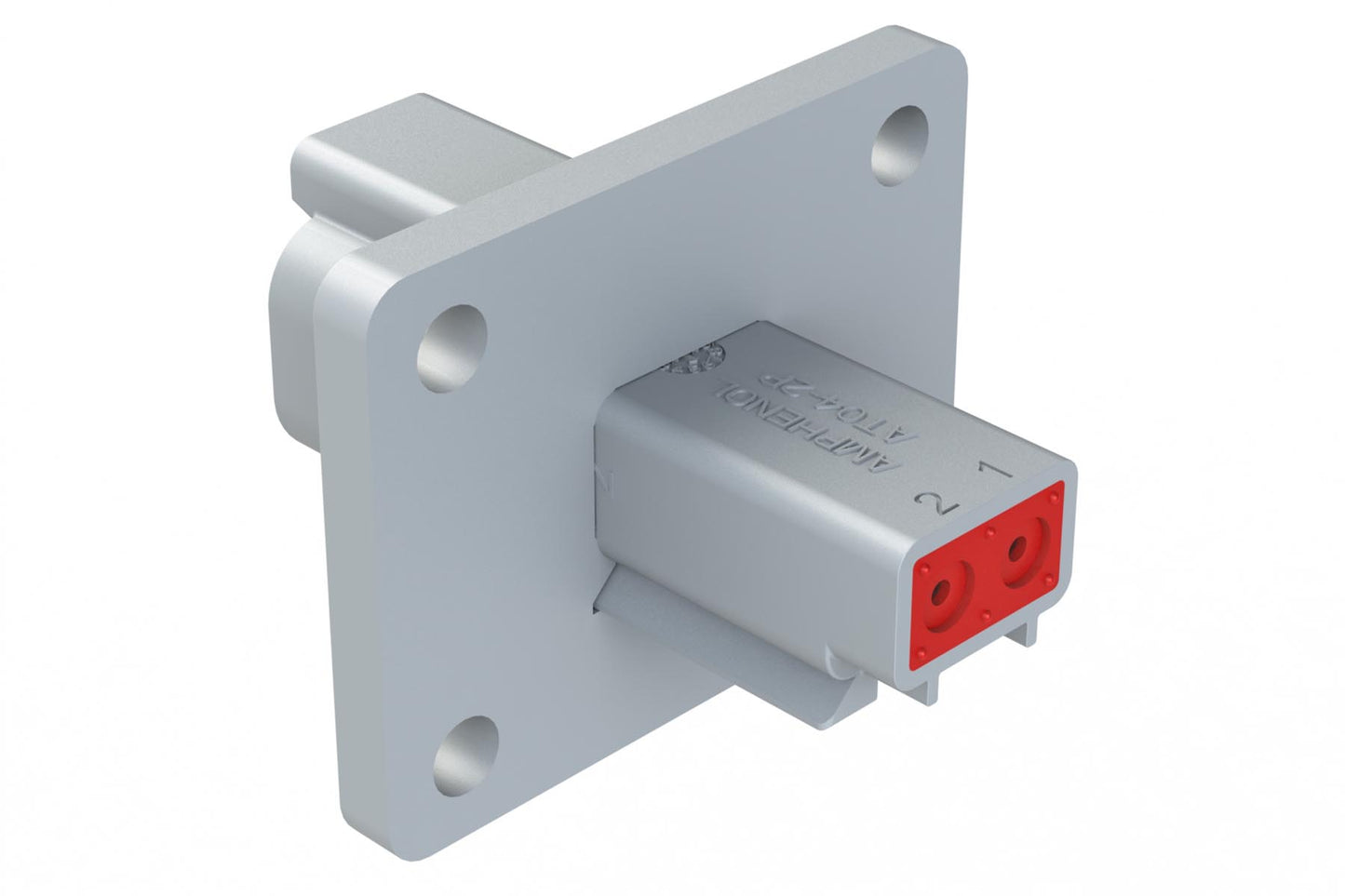

AT04-2P-L012 2 Position Receptacle Flange Mount Connector, Pin, Grey. DT04-2P-L012

Name: AT04-2P-L012 2 Position Receptacle Flange Mount Connector, Pin, Grey. DT04-2P-L012
Brand: Amphenol Sine Systems
SKU: AT04-2P-L012
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-2P-L012

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 2
Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-2S* PLUG
Wedge Part: AW2P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Shape: Rectangular

2 Position Receptacle Flange Mount Connector, Pin, Grey
