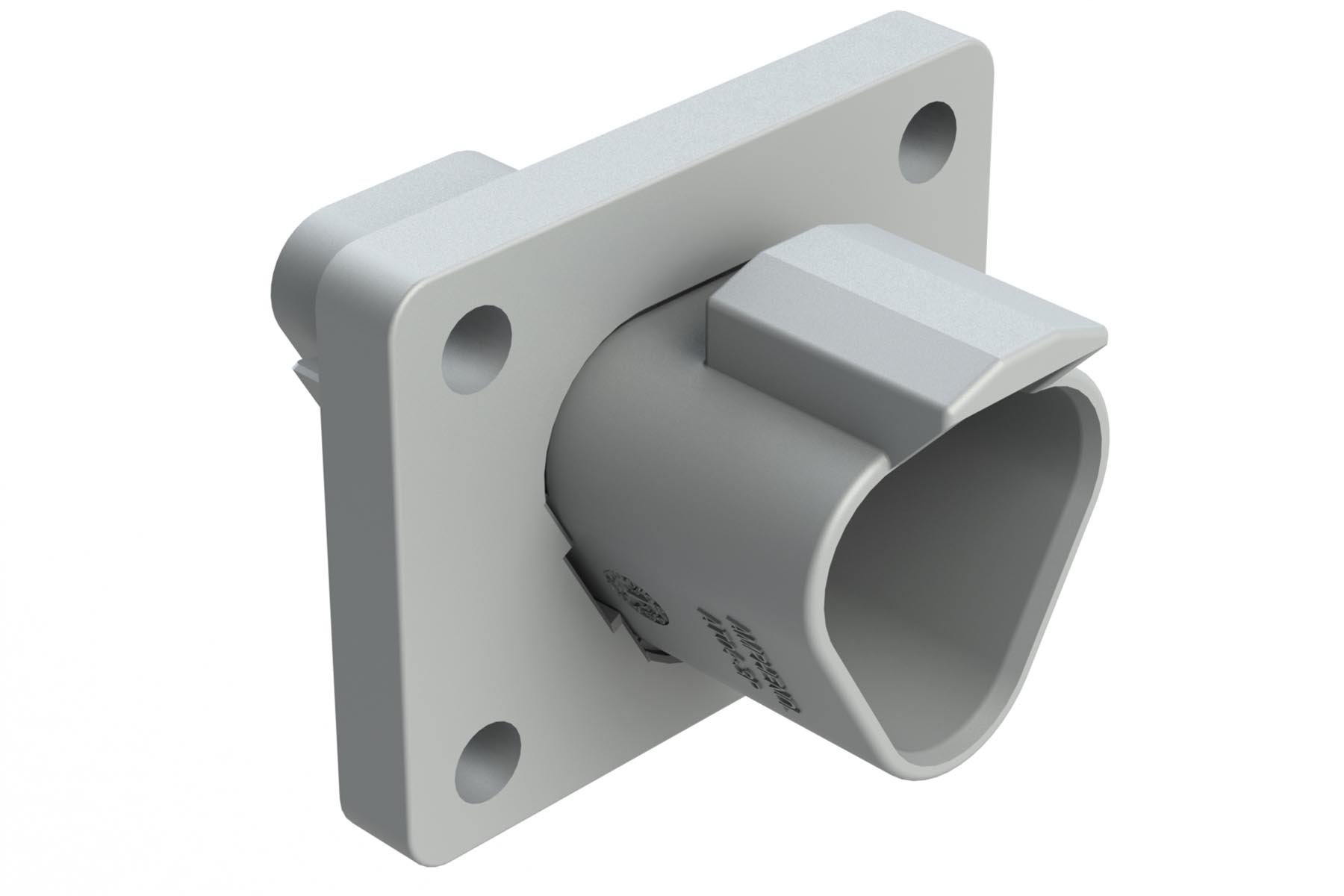

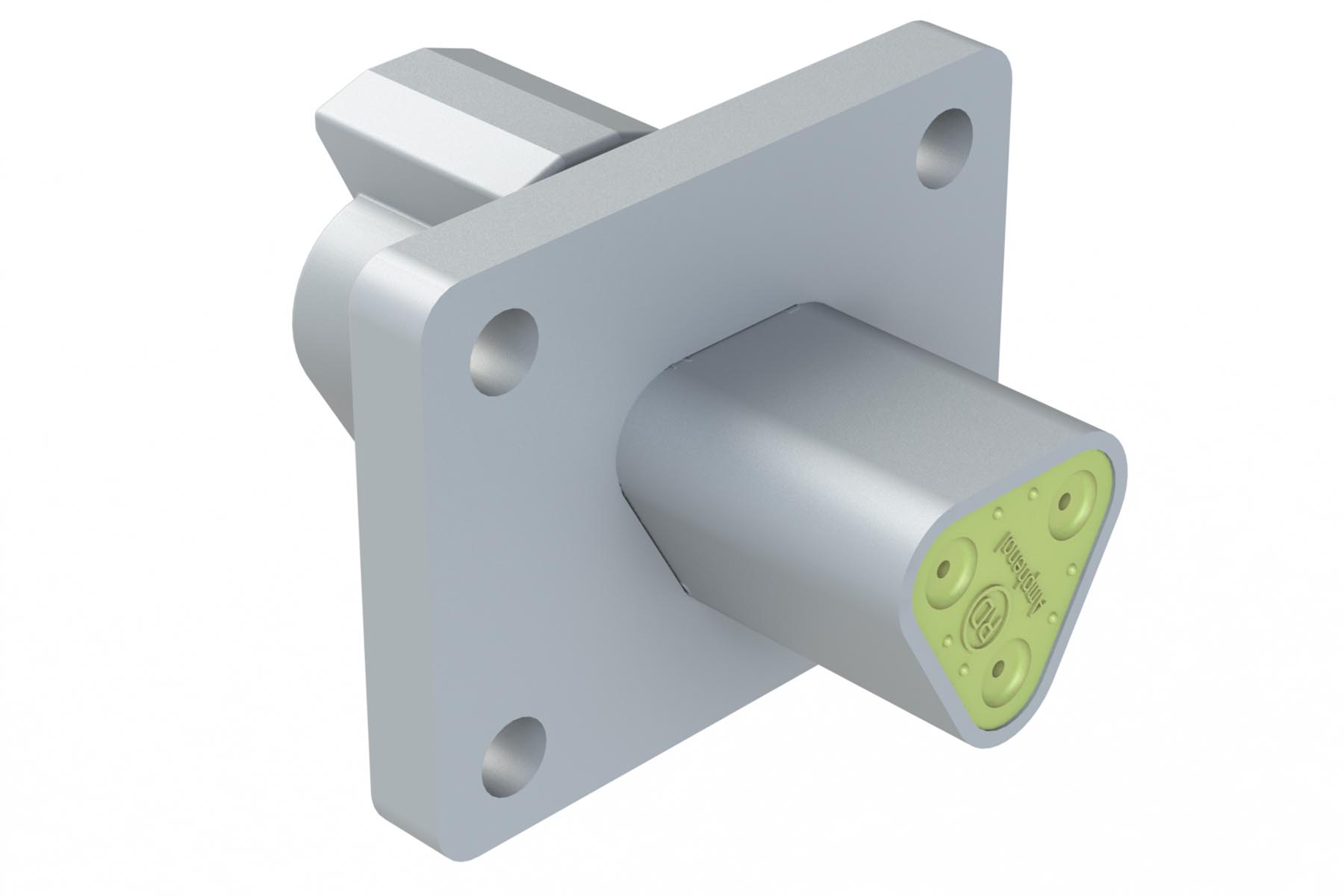

AT04-3P-CL03 3 Position Receptacle Flange Mount Connector, Pin, Grey, Reduced Diameter Seal. DT04-3P-CL03
AT04-3P-CL03 3 Position Receptacle Flange Mount Connector, Pin, Grey, Reduced Diameter Seal. DT04-3P-CL03
IMAGE MAY DIFFER
SKU:AT04-3P-CL03
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone rubber
Mating Part: AT06-3S* PLUG
Wedge Part: AW3P
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Shape: Rectangular
3 Position Receptacle Flange Mount Connector, Pin, Grey, Reduced Diameter Seal
