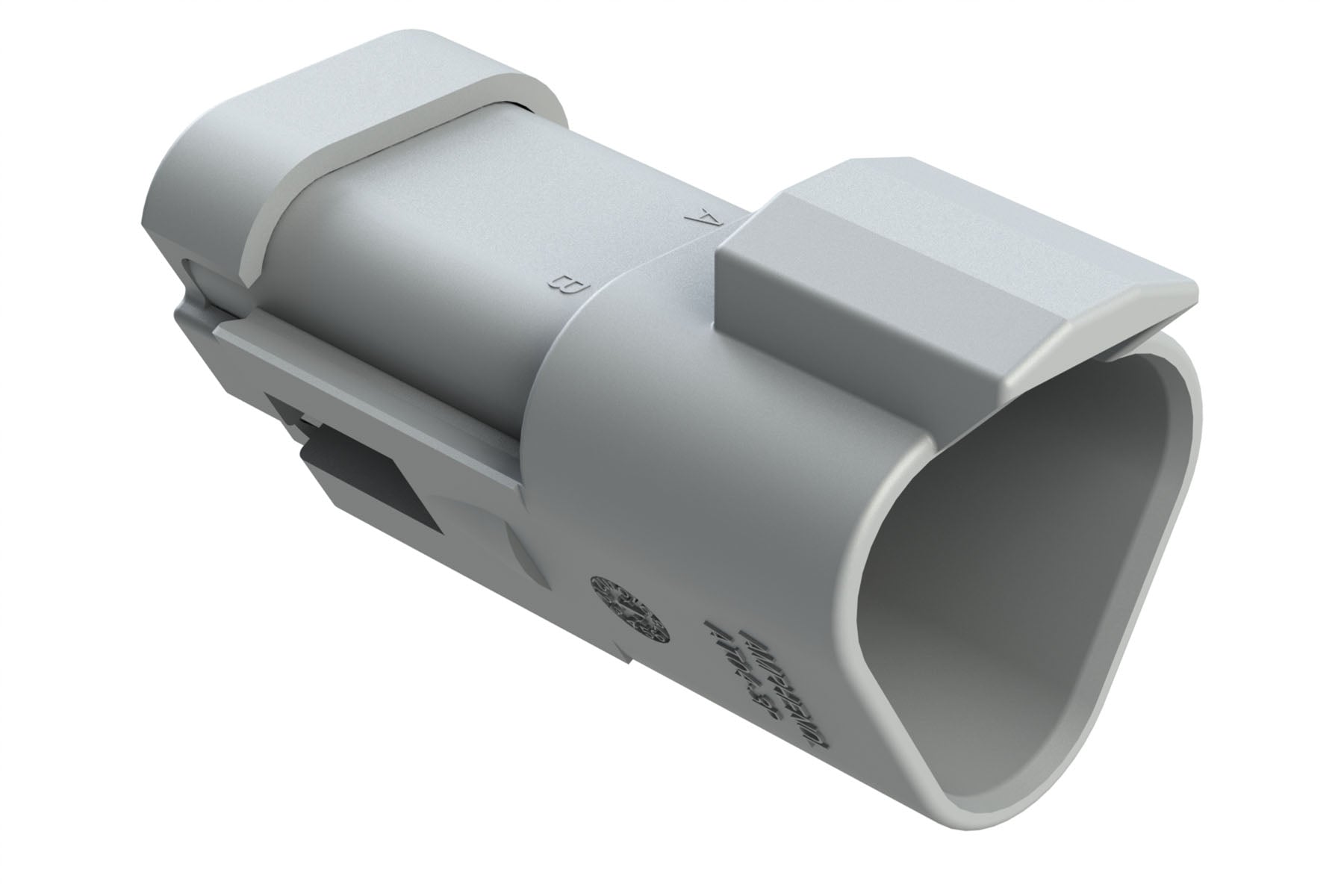

AT04-3P-RJ120 3-Way Receptacle, Male Connector with 120 OHM Terminating Resistor (J1939). DT04-3P-P006
AT04-3P-RJ120 3-Way Receptacle, Male Connector with 120 OHM Terminating Resistor (J1939). DT04-3P-P006
IMAGE MAY DIFFER
SKU:AT04-3P-RJ120
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-3S,AT06-3S-BLK,AT06-3S-EC01,AT06-3S-EC01BLK,AT06-3S-KIT01,AT06-3S-MM01,AT06-3S-R680,AT06-3S-RD01,AT06-3S-RD01BLK,AT06-3S-RJ120,AT06-3S-RJ120BK,AT06-3S-SR01BLK,AT06-3S-SR02BLK,AT06-3S-SS01,AT06-3S-BLU,AT06-3S-GRN,AT06-3S-OMGRY,AT06-3S-OMBLK,AT06-3S-OMBLU,AT06-3S-OMBRN,AT06-3S-OMGRN,AT06-3S-OMRED,AT06-3S-OMWHT,AT06-3S-OMYEL,AT06-3S-RED,AT06-3S-SR01GRN,AT06-3S-SR01RED,AT06-3S-SR01WHT,AT06-3S-SR01YEL,AT06-3S-YEL,AT06-3S-RJL120,AT06-3S-SR01GRY,AT06-3S-MM01BLK
Wedge Part: AW3P-1939 included
Seal Diameter: Blocked
Wire Range: 14-20 AWG
Shape: triangular
3-Way Receptacle, Male Connector with 120 OHM Terminating Resistor (J1939)
