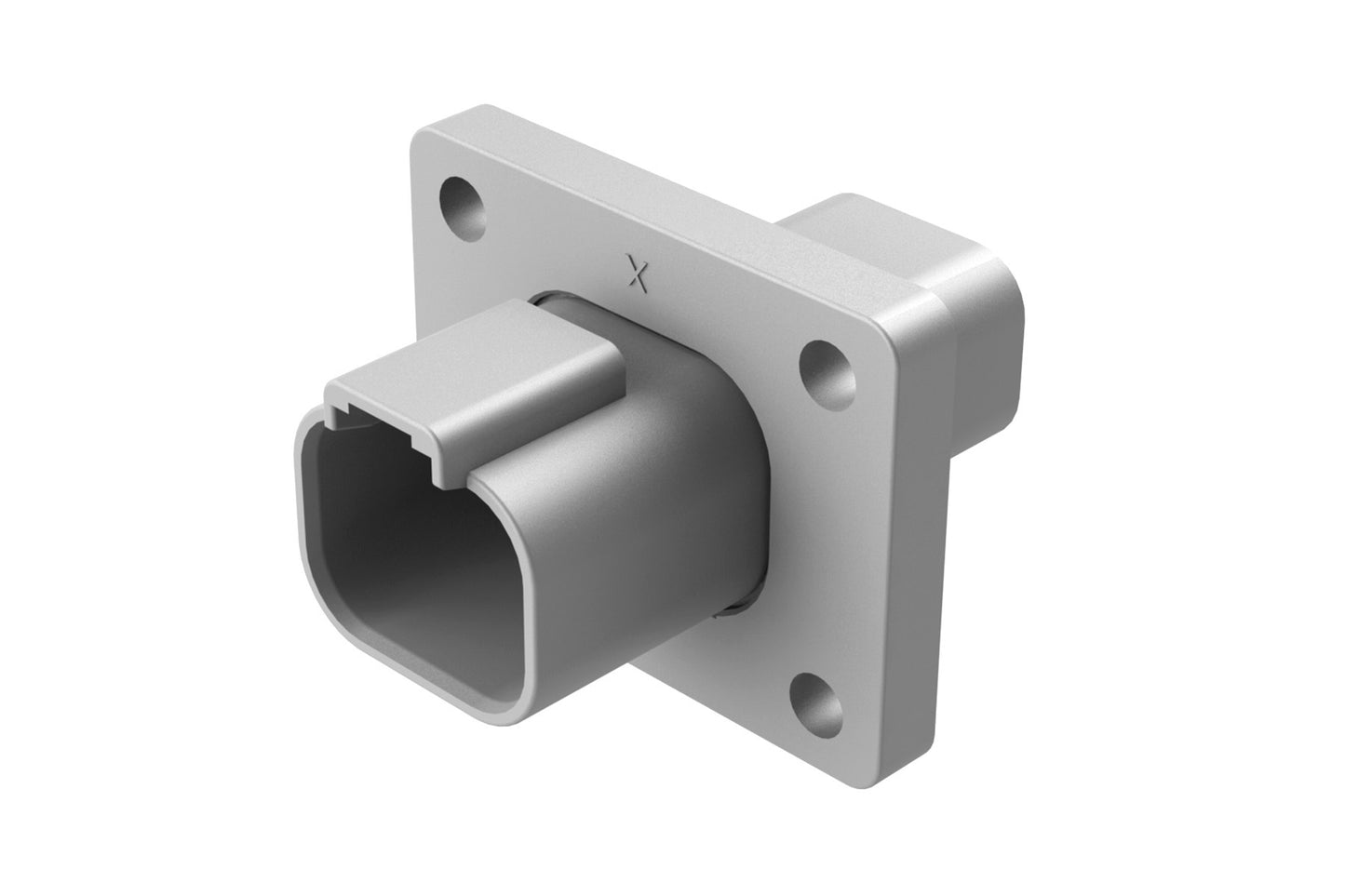

AT04-4P-L012 4 Position Receptacle Flange Mount Connector, Pin, Grey. DT04-4P-L012

AT04-4P-L012 4 Position Receptacle Flange Mount Connector, Pin, Grey. DT04-4P-L012

IMAGE MAY DIFFER

SKU:AT04-4P-L012

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 4
Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone rubber
Mating Part: AT06-4S* PLUG
Wedge Part: AW4P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Shape: Rectangular

4 Position Receptacle Flange Mount Connector, Pin, Grey
