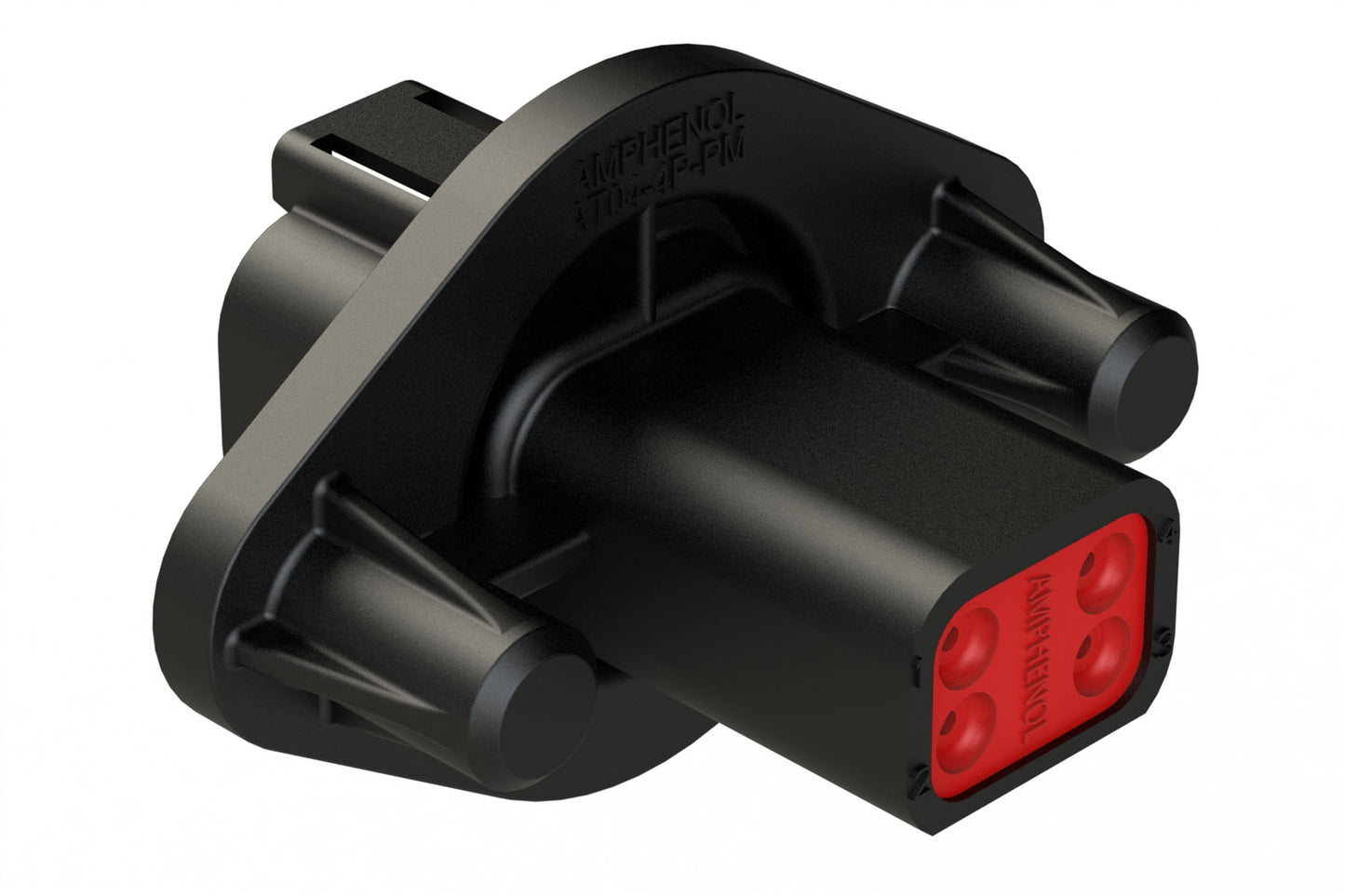

AT04-4P-PM11 4 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading

Name: AT04-4P-PM11 4 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading
Brand: Amphenol Sine Systems
SKU: AT04-4P-PM11
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-4P-PM11

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 4
Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-4S* Plug
Wedge Part: AW4P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20AWG
Shape: Rectangular

4 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading
