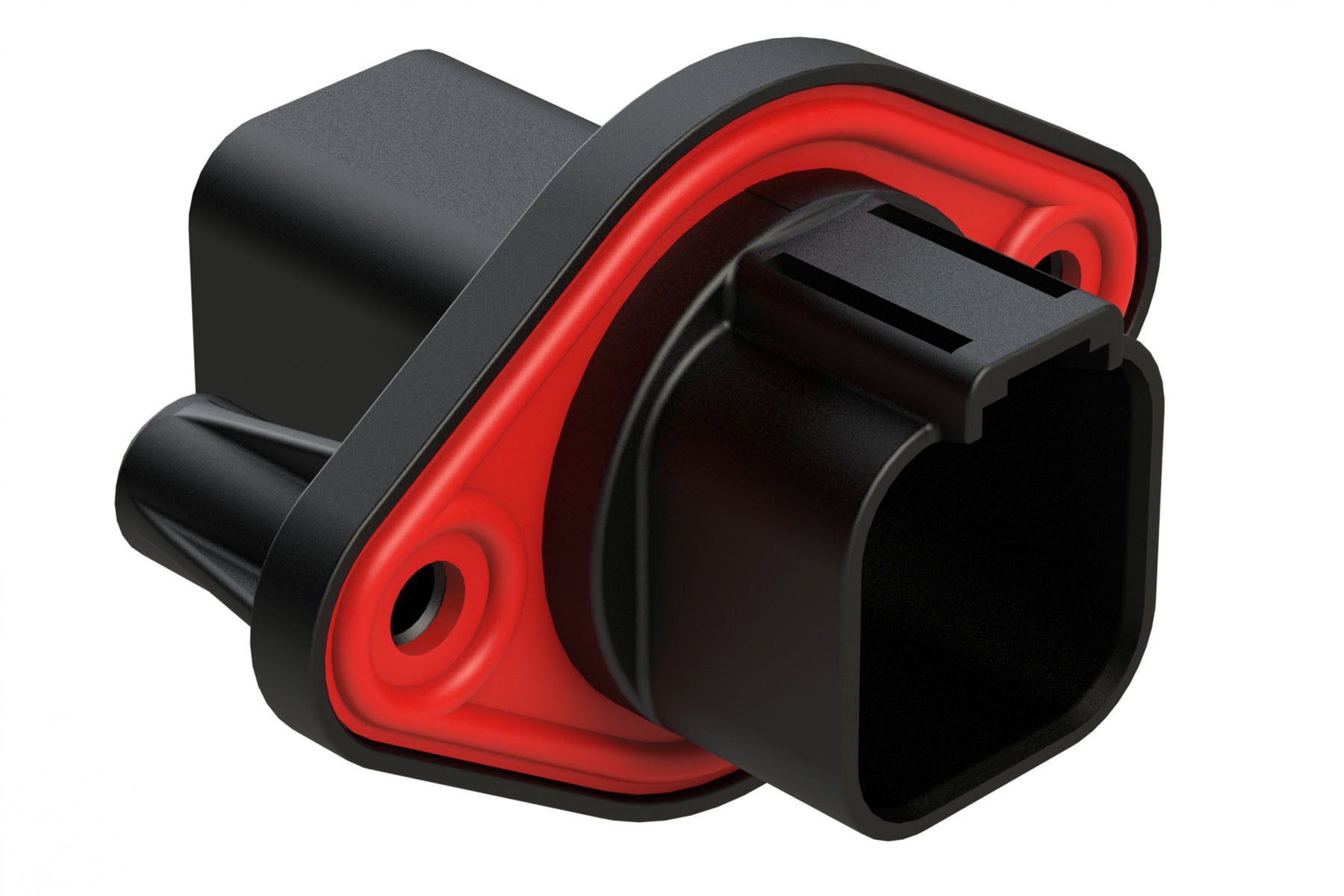

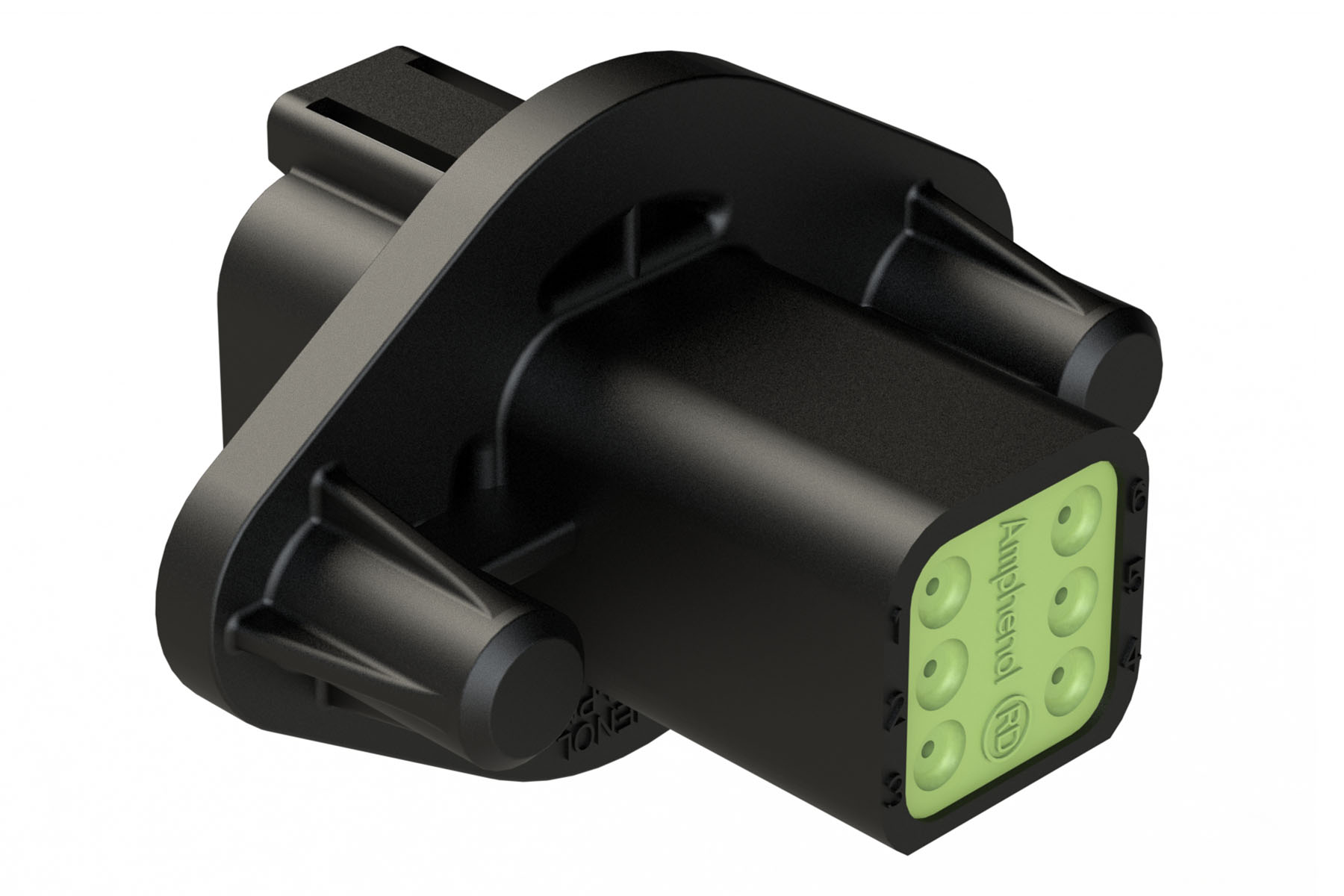

AT04-6P-PM12 6 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal

Name: AT04-6P-PM12 6 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal
Brand: Amphenol Sine Systems
SKU: AT04-6P-PM12
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-6P-PM12

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 6
Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-6S* Plug
Wedge Part: AW6P
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Wire Range: 16-20AWG
Shape: Rectangular

6 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal
