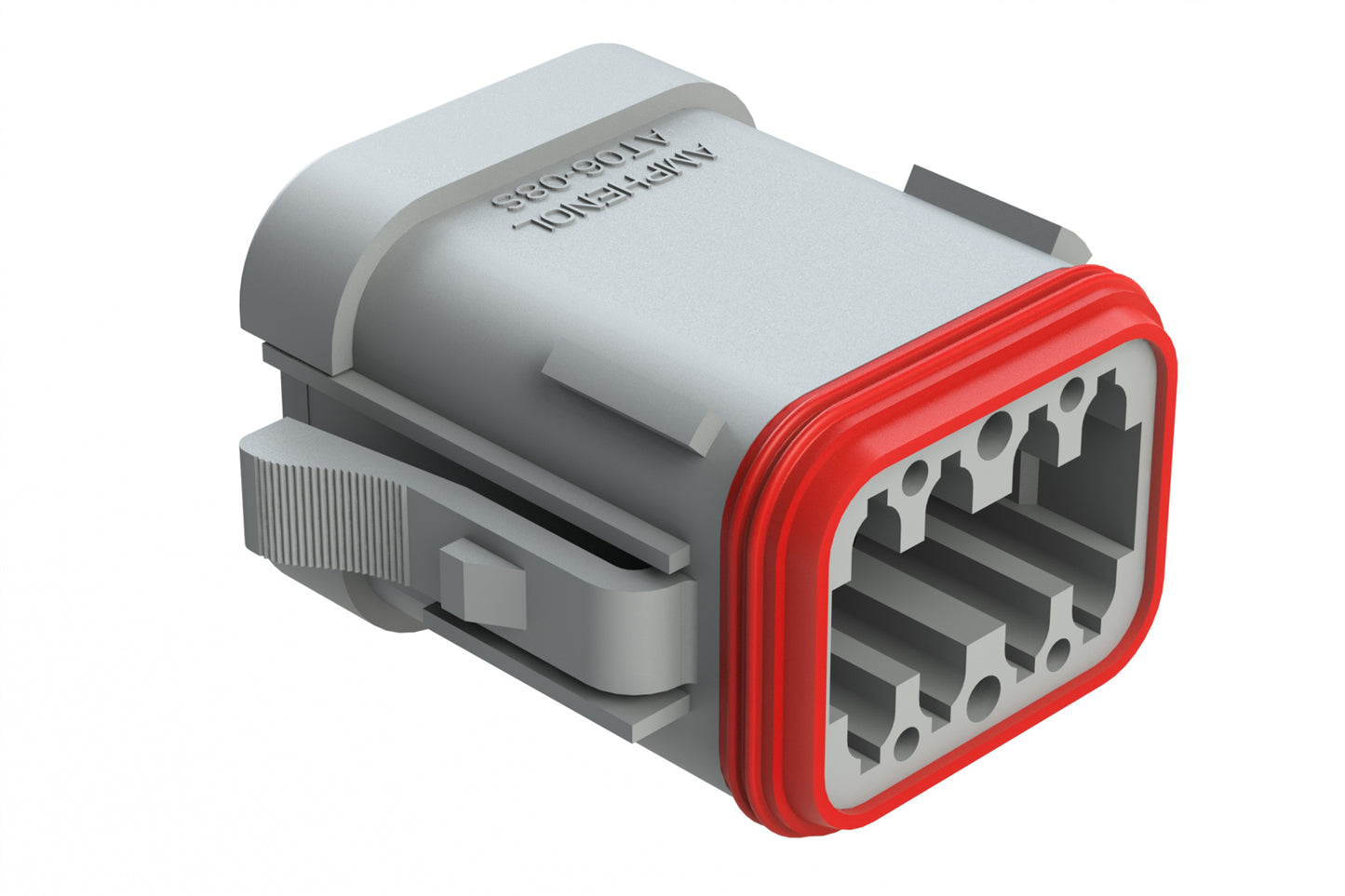

AT06-08SA-EC01 8-Way Plug, Female Connector with A Position Key and End Cap. DT06-08SA-E003, DT06-08SA-EP06
AT06-08SA-EC01 8-Way Plug, Female Connector with A Position Key and End Cap. DT06-08SA-E003, DT06-08SA-EP06
IMAGE MAY DIFFER
SKU:AT06-08SA-EC01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8 A Position KeyGender: Female
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT04-08PA* Receptacle
Wedge Part: AW8S
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
8-Way Plug, Female Connector with A Position Key and End Cap
