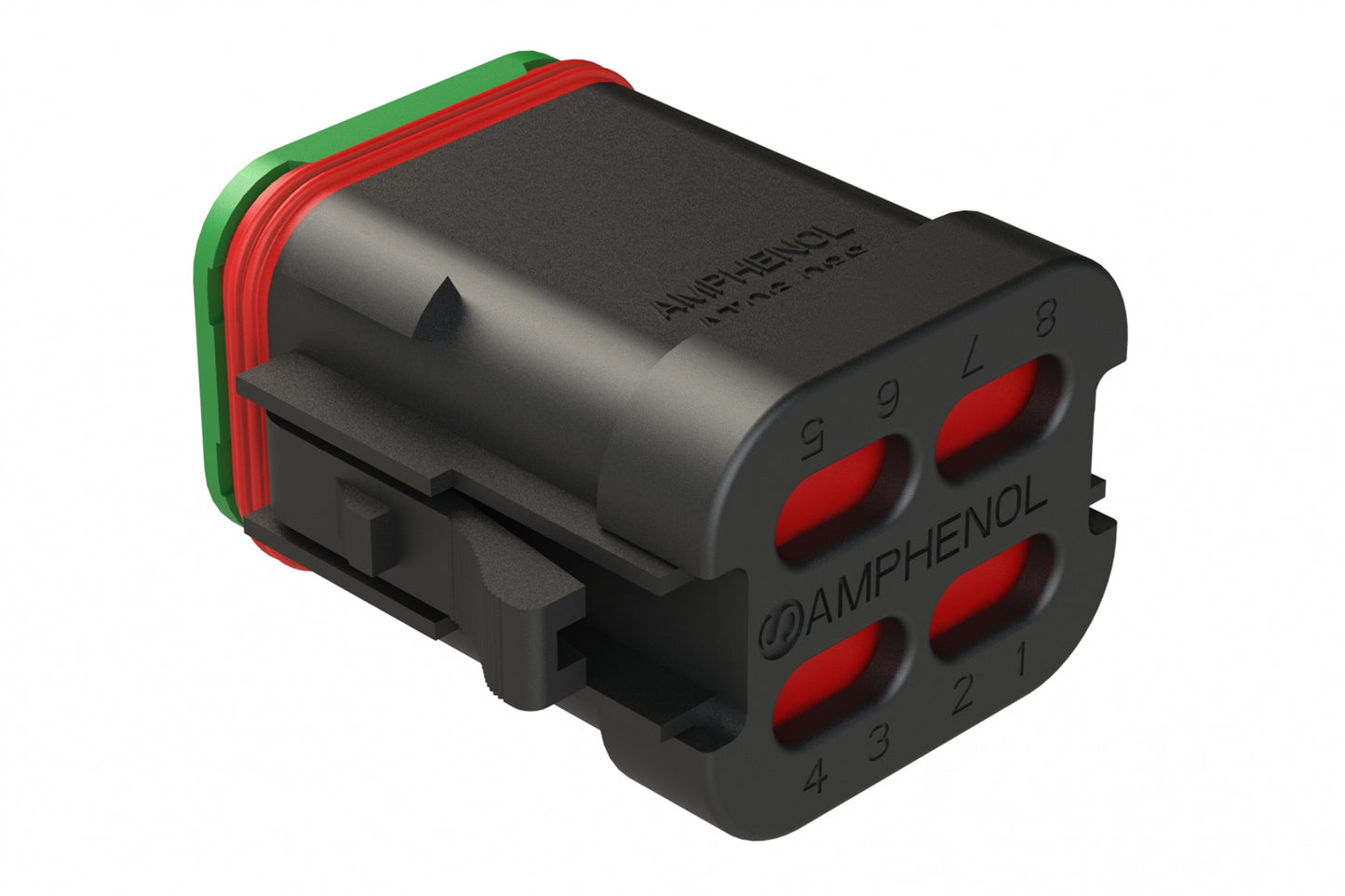

AT06-08SD-SSBLK 8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Black
AT06-08SD-SSBLK 8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Black
IMAGE MAY DIFFER
SKU:AT06-08SD-SSBLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT04-08PD* Receptacle
Seal Diameter: Blocked Grommet
Wire Range: 14-20 AWG
Shape: Rectangular
8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Black
