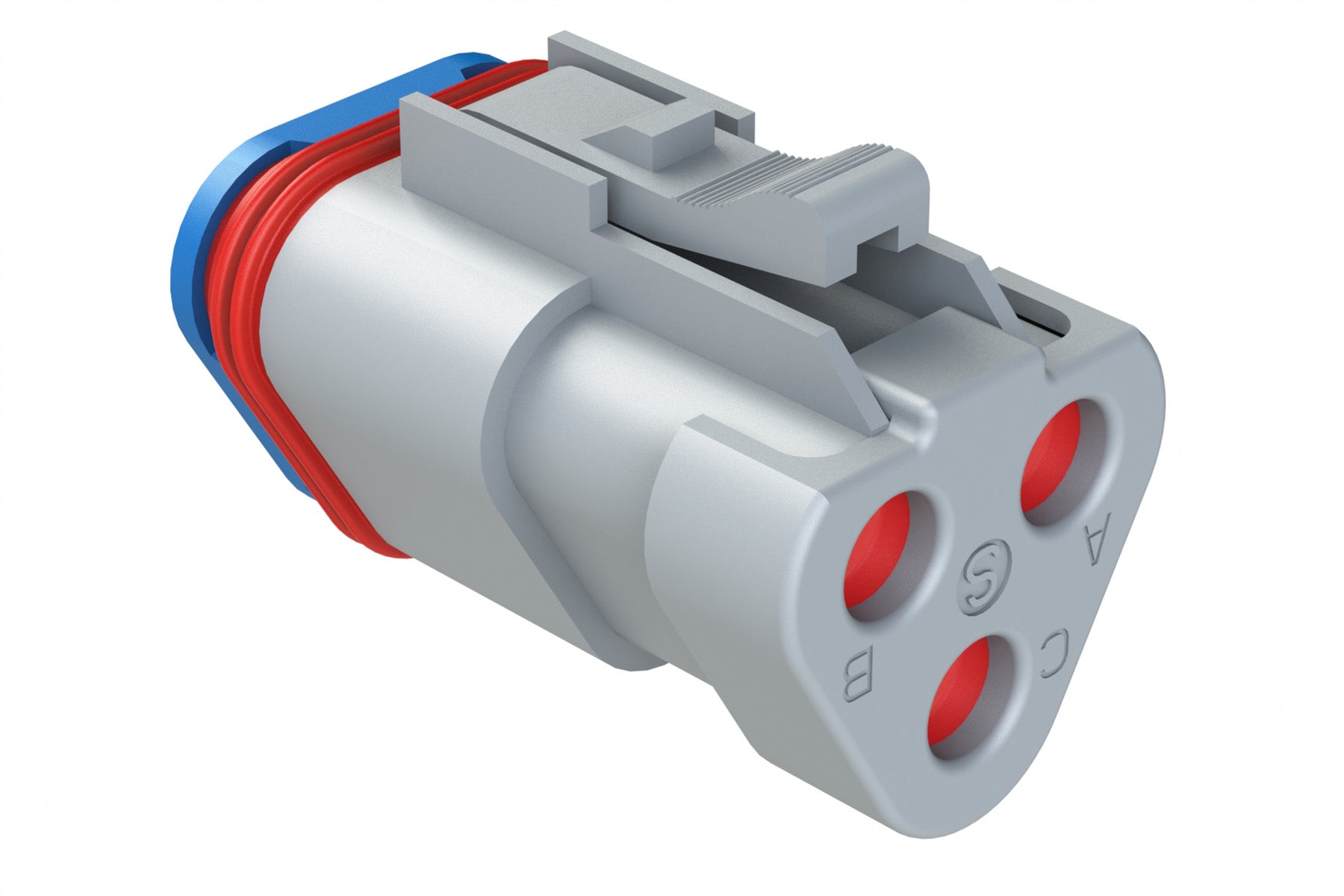

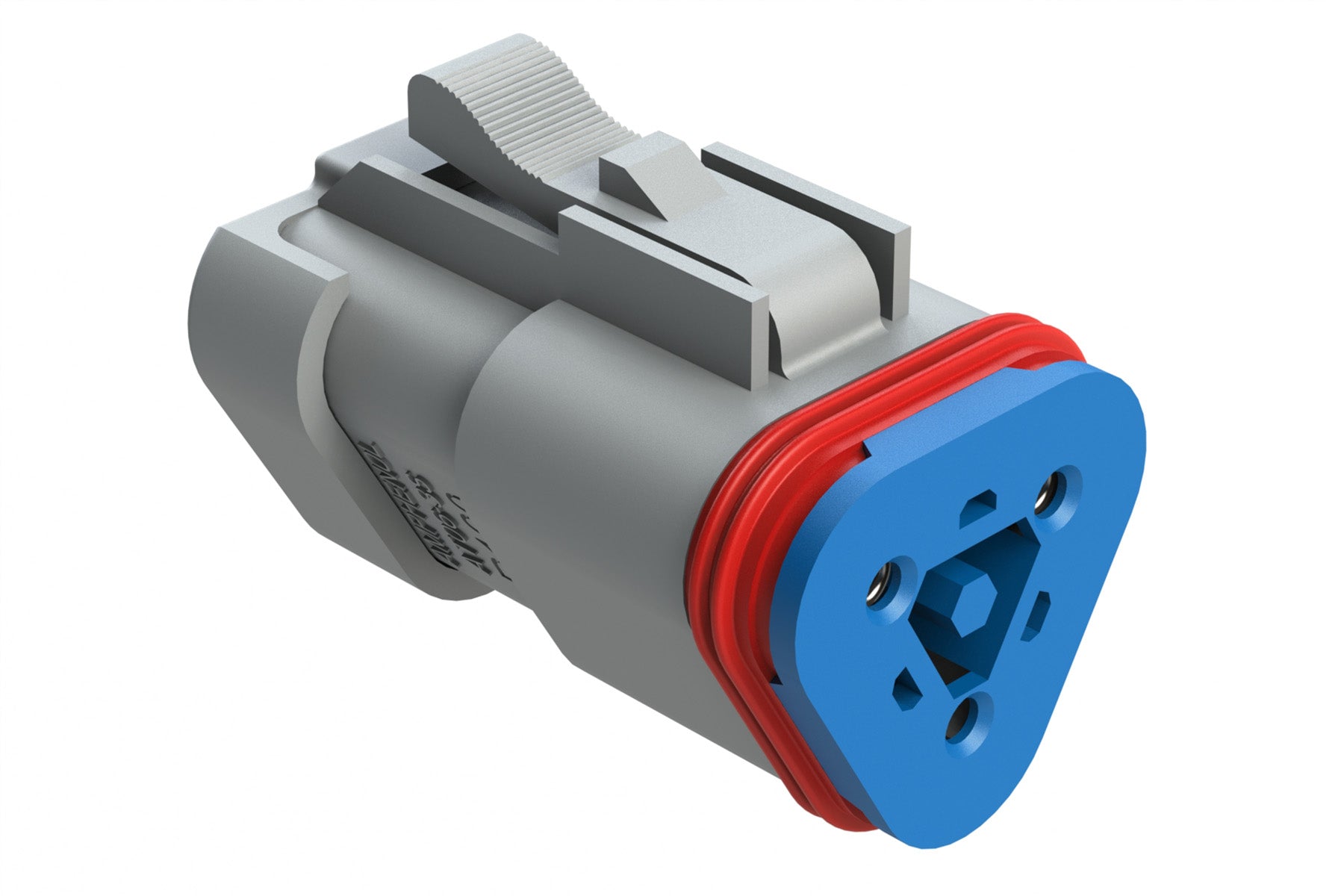

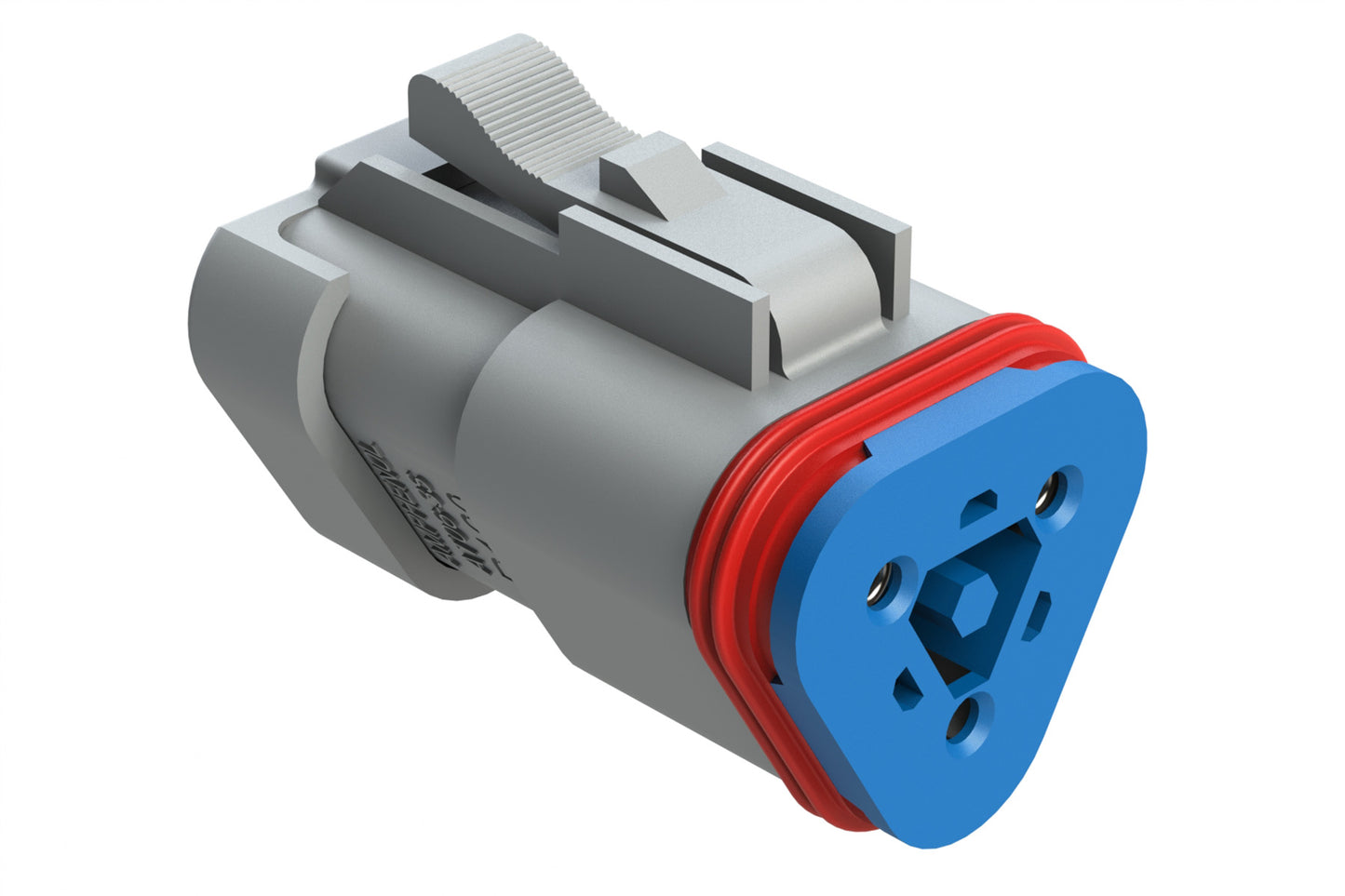

AT06-3S-RJ120 3-Way Plug, Female Connector with 120 OHM Terminating Resistor (J1939). DT06-3S-P006
AT06-3S-RJ120 3-Way Plug, Female Connector with 120 OHM Terminating Resistor (J1939). DT06-3S-P006
IMAGE MAY DIFFER
SKU:AT06-3S-RJ120
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Female
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT04-3P,AT04-3P-BLK,AT04-3P-EC01,AT04-3P-EC01BLK,AT04-3P-KIT01,AT04-3P-MM01,AT04-3P-MM01BLK,AT04-3P-PM05,AT04-3P-RD01,AT04-3P-RD01BLK,AT04-3P-RJ120,AT04-3P-RJ120BK,AT04-3P-RY01,AT04-3P-SR01BLK,AT04-3P-SR02BLK,AT04-3P-SS01,AT04-3P-BLU,AT04-3P-BRN,AT04-3P-GRN,AT04-3P-RED,AT04-3P-SR01GRN,AT04-3P-SR01GRY,AT04-3P-SR01WHT,AT04-3P-PM15,AT04-3P-PM16,AT04-3P-BM01,AT04-3P-BM02,AT04-3P-BM03,AT04-3P-BM04,AT04-3P-PM11,AT04-3P-PM12,AT04-3P-PM13,AT04-3P-PM14
Wedge Part: AW3S-1939 included
Seal Diameter: Blocked
Wire Range: 14-20 AWG
Shape: Rectangular / Other
3-Way Plug, Female Connector with 120 OHM Terminating Resistor (J1939)
