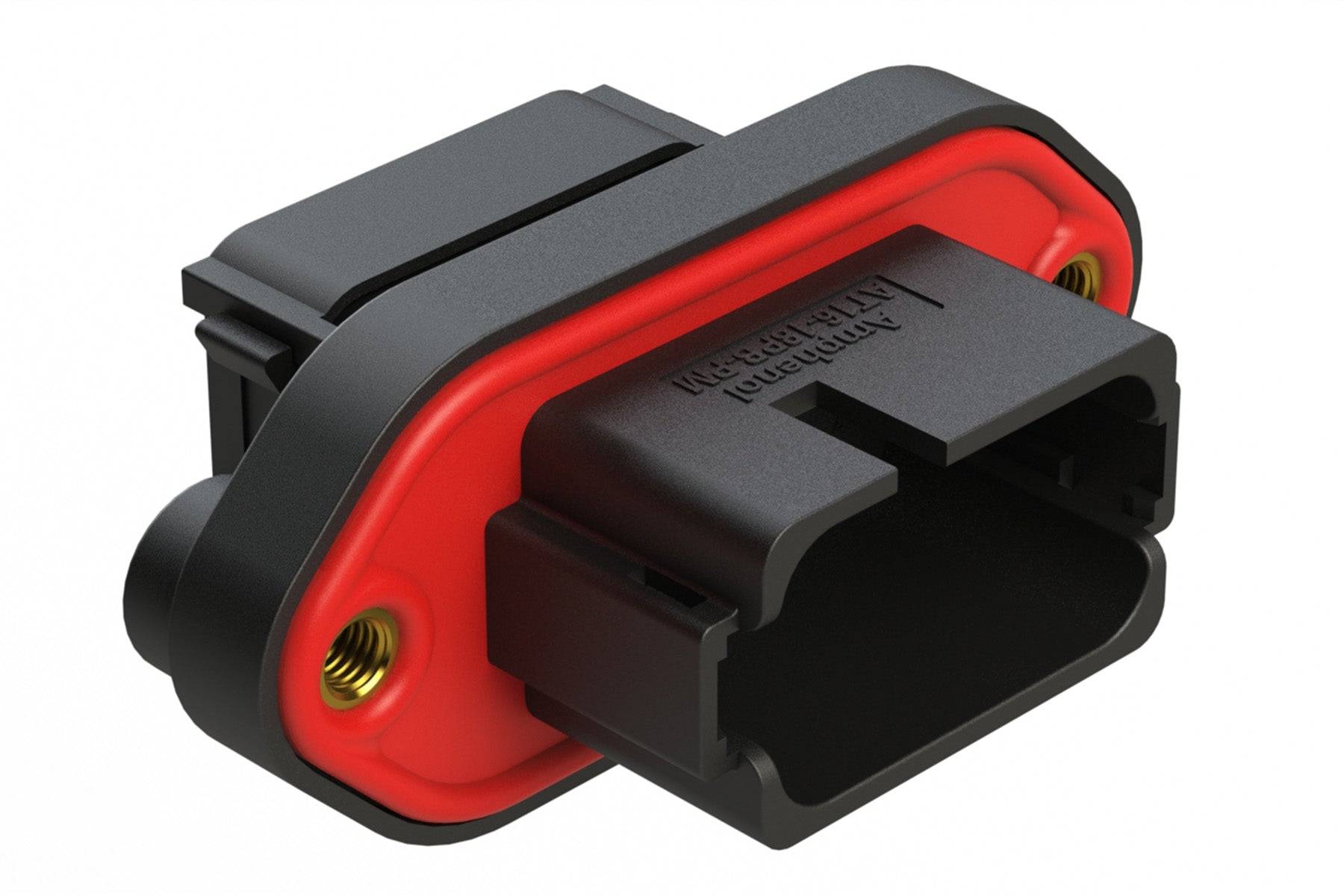

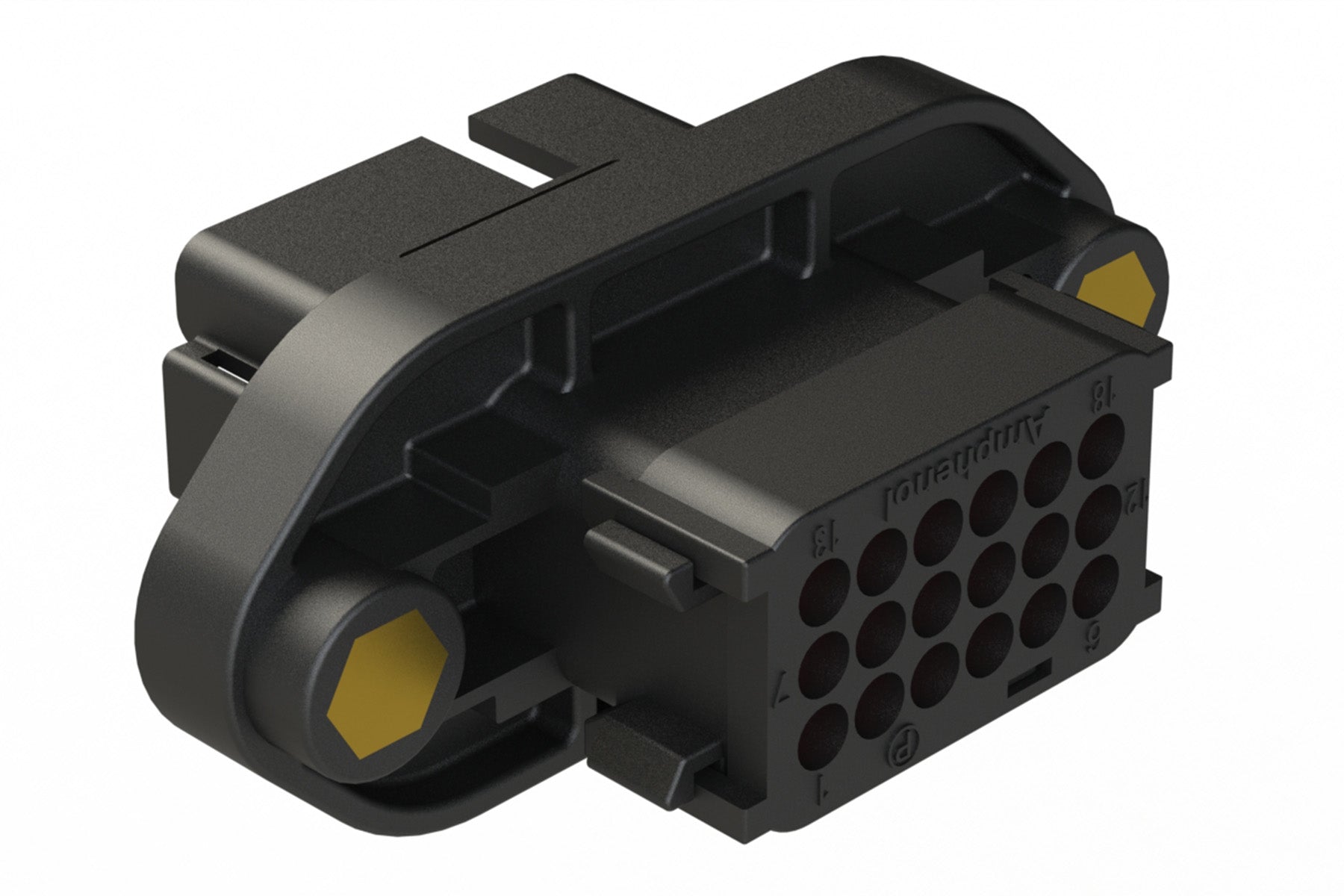

AT16-18PB-PM11 18 Position Panel Mount Receptacle, Keyed B, Pin, Black

AT16-18PB-PM11 18 Position Panel Mount Receptacle, Keyed B, Pin, Black

IMAGE MAY DIFFER

AT16-18PB-PM11

Downloads

Datasheet
3D Model
Assembly Instructions
Assembly Instructions

Specifications

No. of Positions: 18
Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT16-18SB* Receptacle
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular

18 Position Panel Mount Receptacle, Keyed B, Pin, Black
