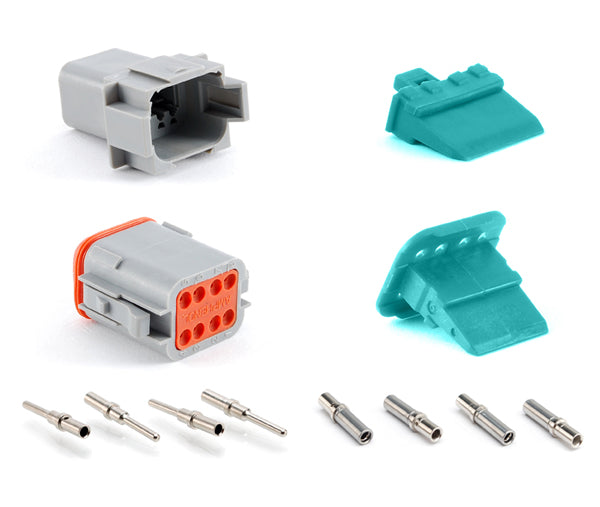

AT8PS-CKIT 8-Way Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
AT8PS-CKIT 8-Way Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
IMAGE MAY DIFFER
SKU:AT8PS-CKIT
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Male & Female
Contact Size: 16
Contact Material: Copper Alloy, Nickel Plated
Colour: Grey / Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: All mating parts included
Wedge Part: AW8S, AW8P included
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
8-Way Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
