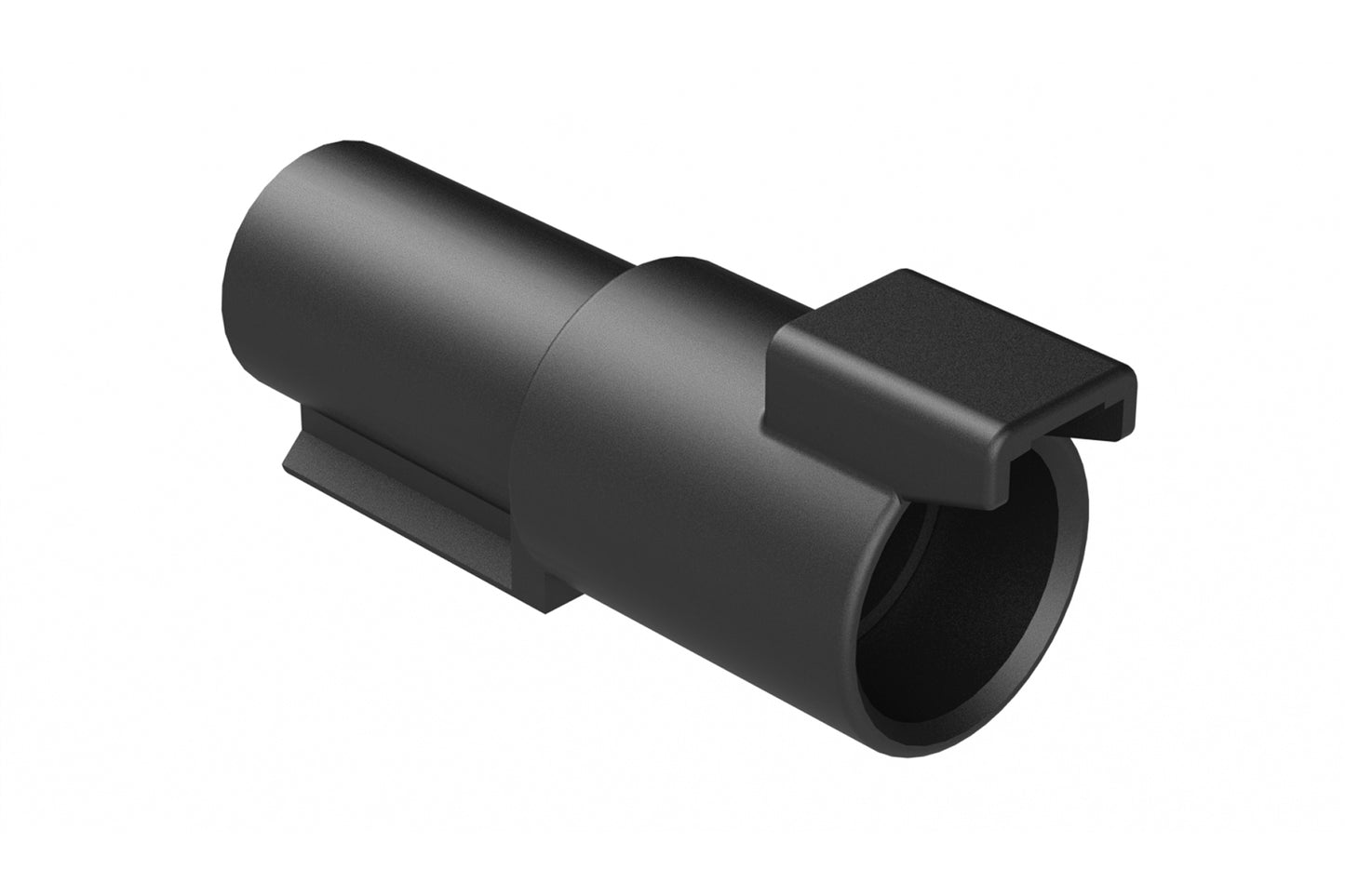

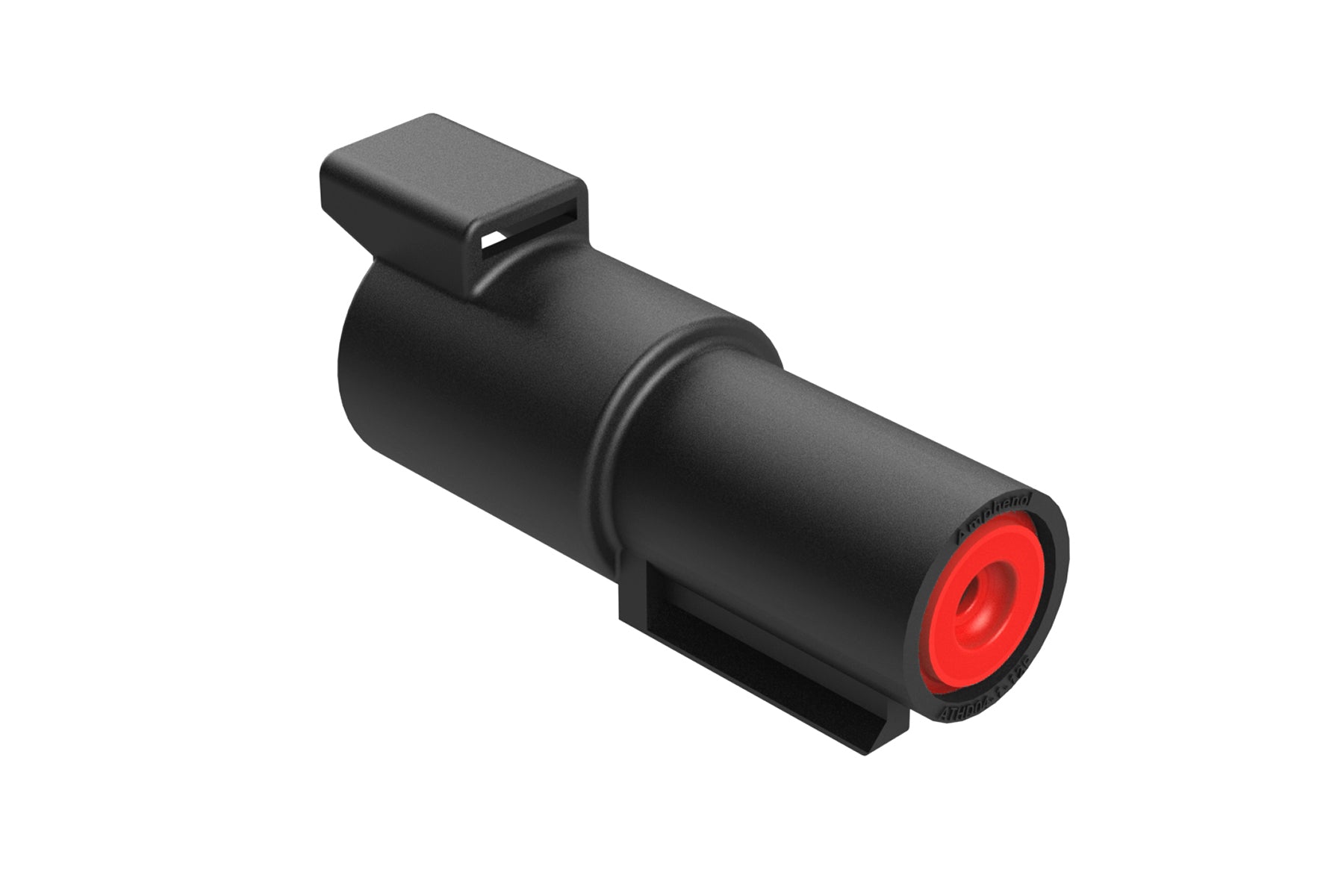

ATHD04-1-12P 1 Position Receptacle, Pin, Contact Size 12. DTHD04-1-12P
ATHD04-1-12P 1 Position Receptacle, Pin, Contact Size 12. DTHD04-1-12P
IMAGE MAY DIFFER
SKU:ATHD04-1-12P
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 1Gender: Male
Contact Size: 12
Contact Material: Copper Alloy, Nickel Plated
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHD06-1-12S* Plug
Seal Diameter: 3.40mm (.134") - 4.32mm (.170mm)
Wire Range: 12-14 AWG
Shape: Circular
1 Position Receptacle, Pin, Contact Size 12
