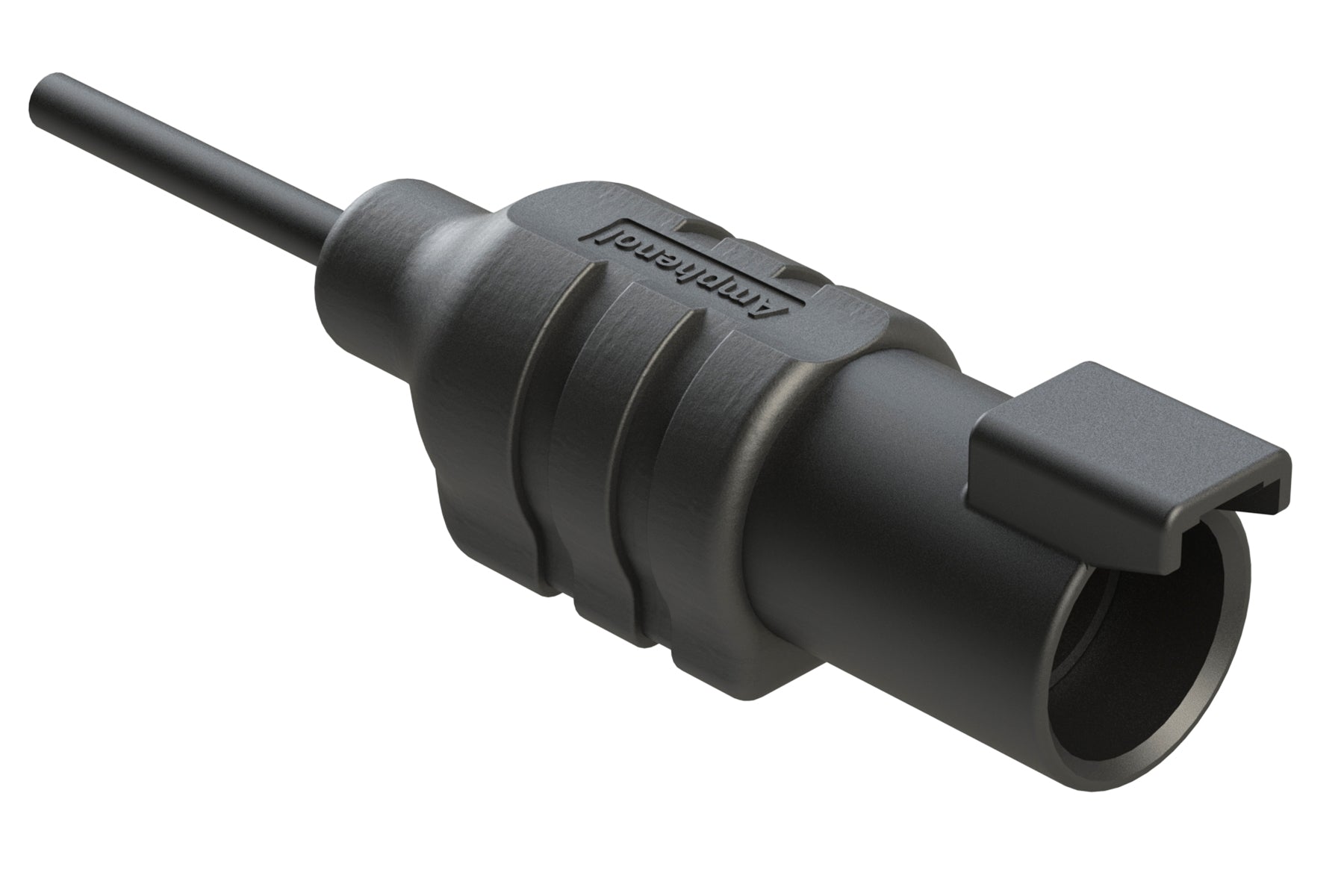

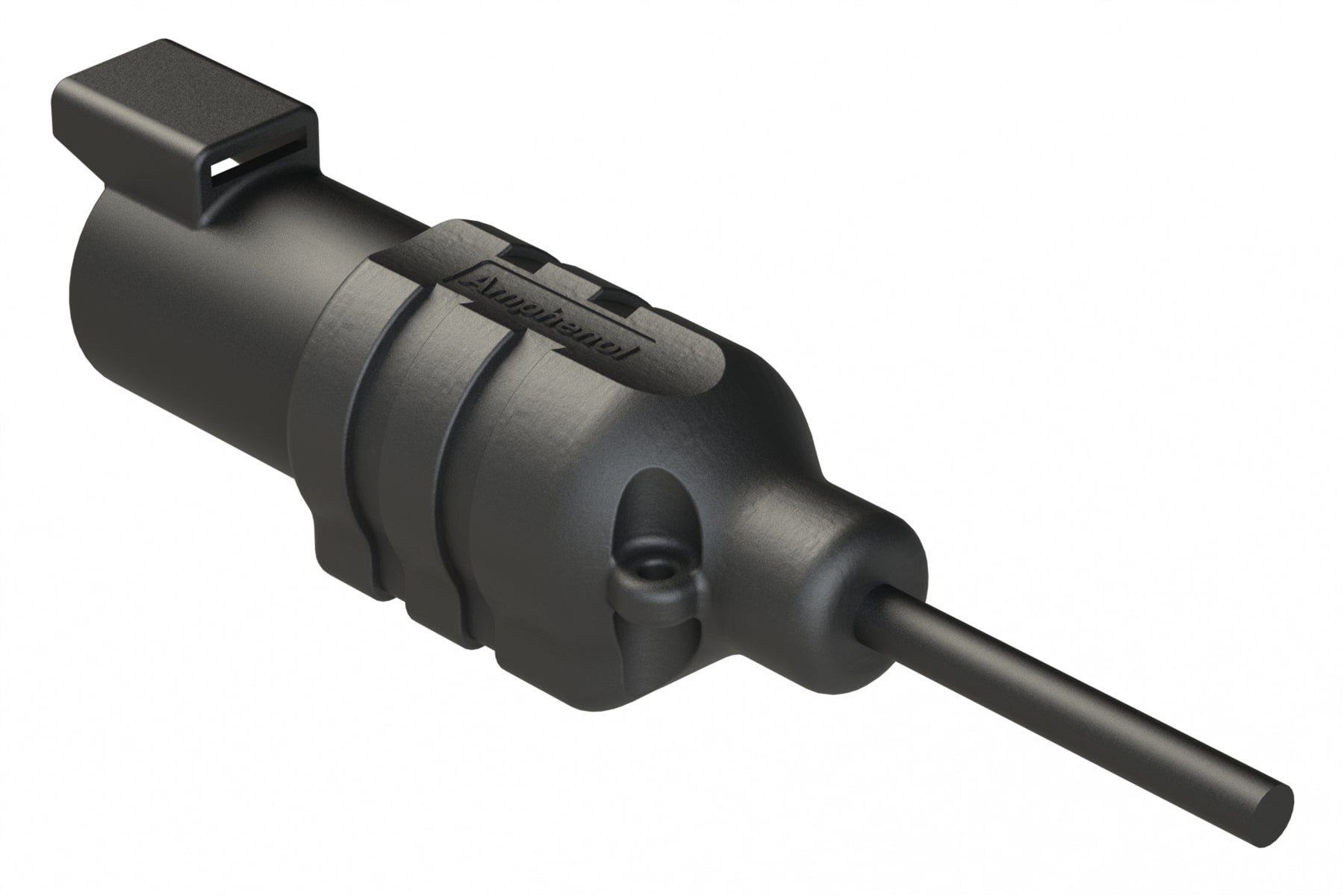

ATHD04-1-12P-12G-M5 1 Position Single-ended Overmolded Cable Assembly, Receptacle, Pin Contact Size 12, 12AWG, 5 Meter Length
ATHD04-1-12P-12G-M5 1 Position Single-ended Overmolded Cable Assembly, Receptacle, Pin Contact Size 12, 12AWG, 5 Meter Length
IMAGE MAY DIFFER
SKU:ATHD04-1-12P-12G-M5
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 1Gender: Male
Contact Size: 12
Contact Material: Copper Alloy, Nickel Plated
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -40°C+100°C
Mating Cycle Durability: >100
Housing Material: PA66
Seal Material: Silicone Rubber
Mating Part: ATHD06-1-12S RECEPTACLE, ATHD06-1-12S-8G-M* Cable Assembly
Wire Range: 12AWG
Shape: Circular
1 Position Single-ended Overmolded Cable Assembly, Receptacle, Pin Contact Size 12, 12AWG, 5 Meter Length
