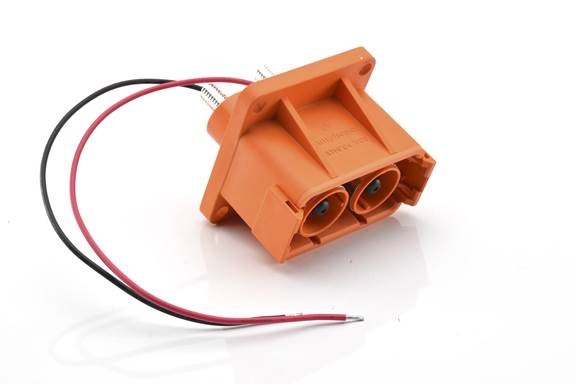

ATHP042P08EL16-M1 2 Position EMC Receptacle, Flange Mounting with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Contacts included
ATHP042P08EL16-M1 2 Position EMC Receptacle, Flange Mounting with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Contacts included
IMAGE MAY DIFFER
SKU:ATHP042P08EL16-M1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 2Gender: Male
Contact Size: 8mm
Contact Material: (Power) Copper Alloy, Silver Plated
Colour: Orange
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 500 MEGOHMS MIN @ 25°C.
Operating Temperature: -40°C to +130°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Wire Range: 50mm²
Shape: Rectangular
2 Position EMC Receptacle, Flange Mounting with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Contacts included
