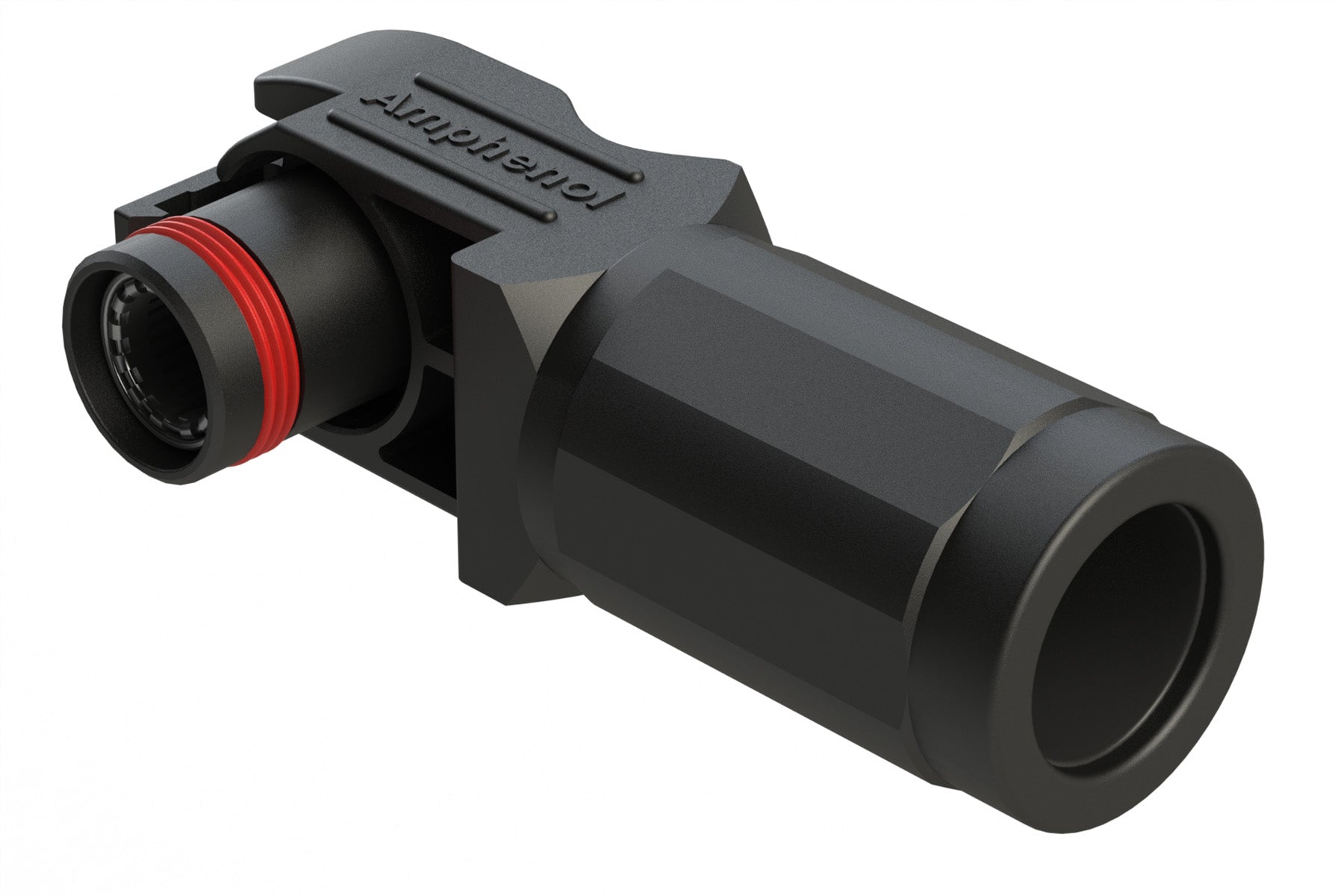

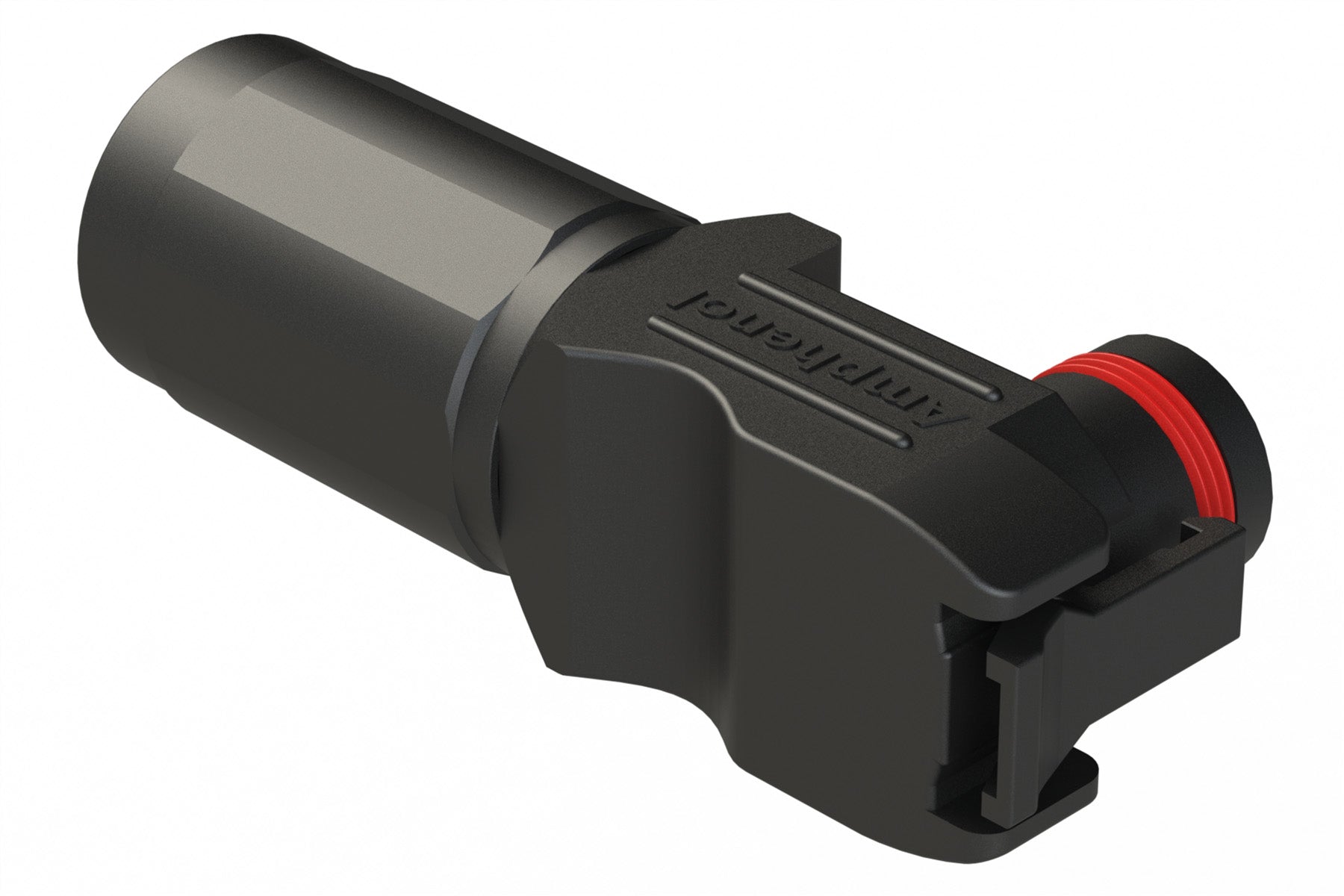

ATHP061RS08NN-50 8mm right angle plug, 180A/1000V, Socket, black, wire range 50 mm²

ATHP061RS08NN-50 8mm right angle plug, 180A/1000V, Socket, black, wire range 50 mm²

IMAGE MAY DIFFER

ATHP061RS08NN-50

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 1
Gender: Female
Contact Size: 8mm
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >50
Housing Material: UL94 V0
Seal Material: Silicone rubber
Wire Range: 50mm²
Shape: Circular

8mm right angle plug, 180A/1000V, Socket, black, wire range 50 mm²
