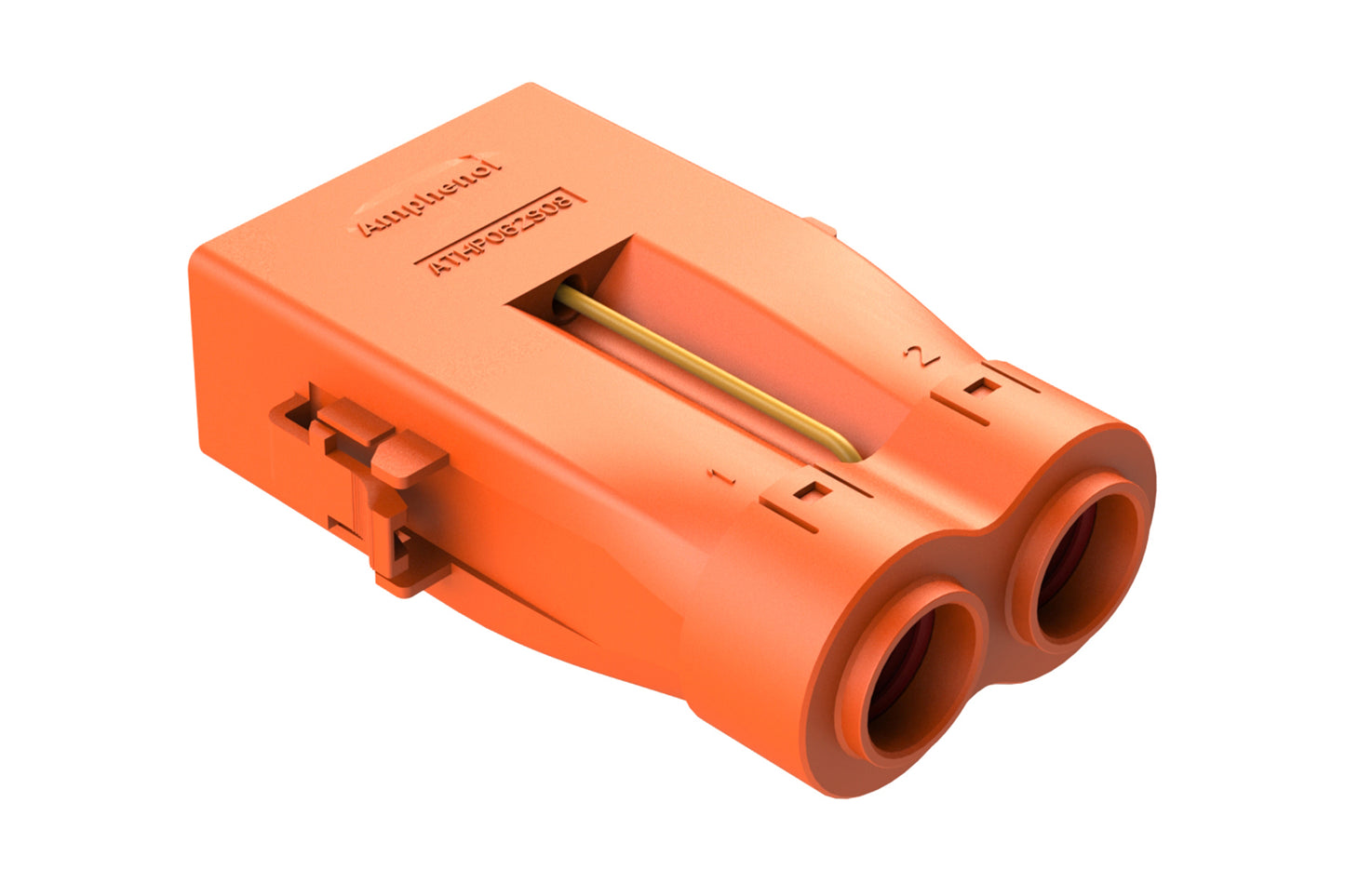

ATHP062S08NL16-50S1 2 position Standard Plug with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included
ATHP062S08NL16-50S1 2 position Standard Plug with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included
IMAGE MAY DIFFER
SKU:ATHP062S08NL16-50S1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 2Gender: Female
Contact Size: 8mm, 16
Contact Material: (Power) Copper Alloy, Silver Plated
Colour: Orange
IP Rating: IP67 (in mated condition)
Insulation Resistance: 500 MEGOHMS MIN @25-40°C TO +130°C
Operating Temperature: -40°C to +130°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHP042P08NL16-50
Wire Range: 50mm²
Shape: Rectangular
2 position Standard Plug with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included
