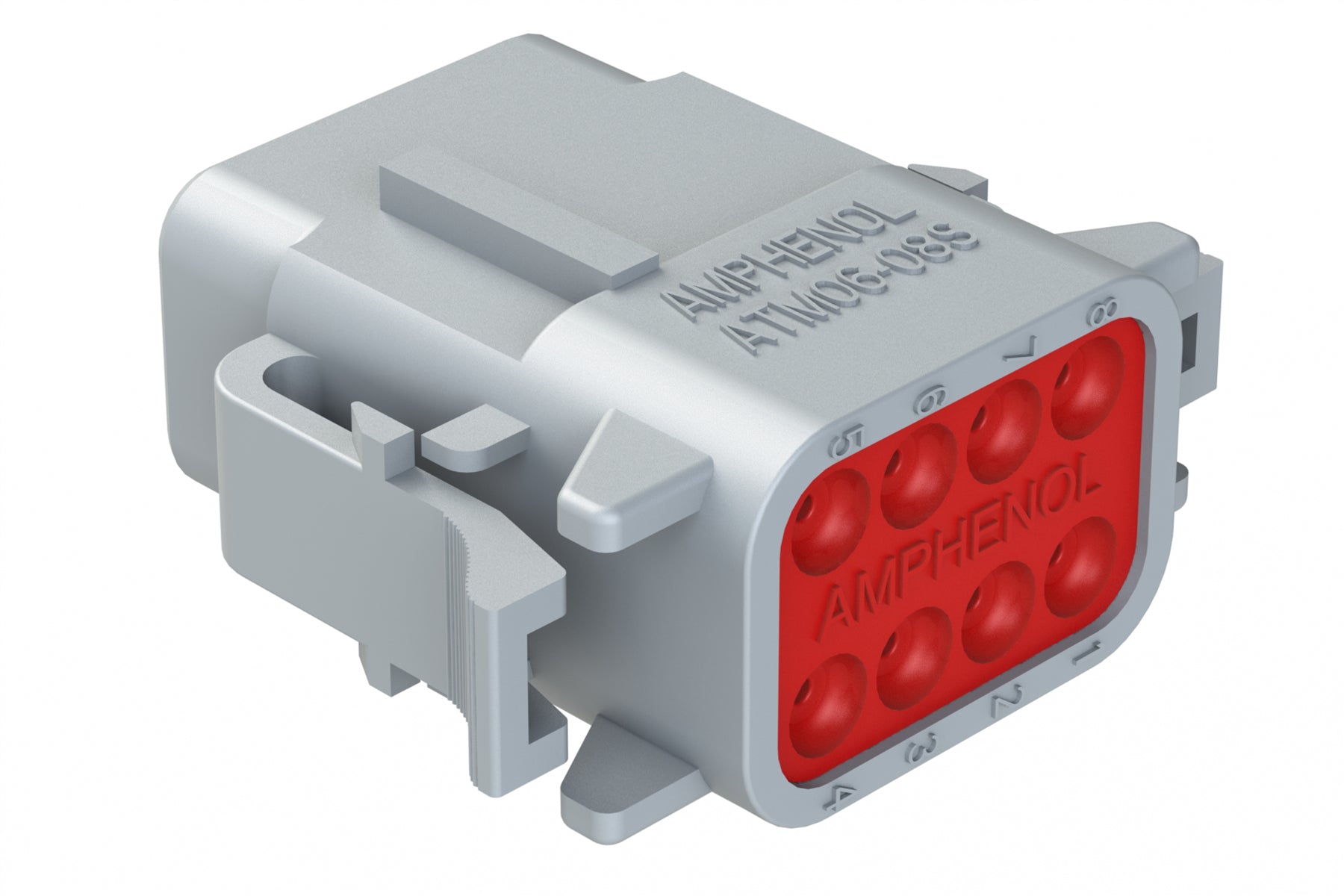

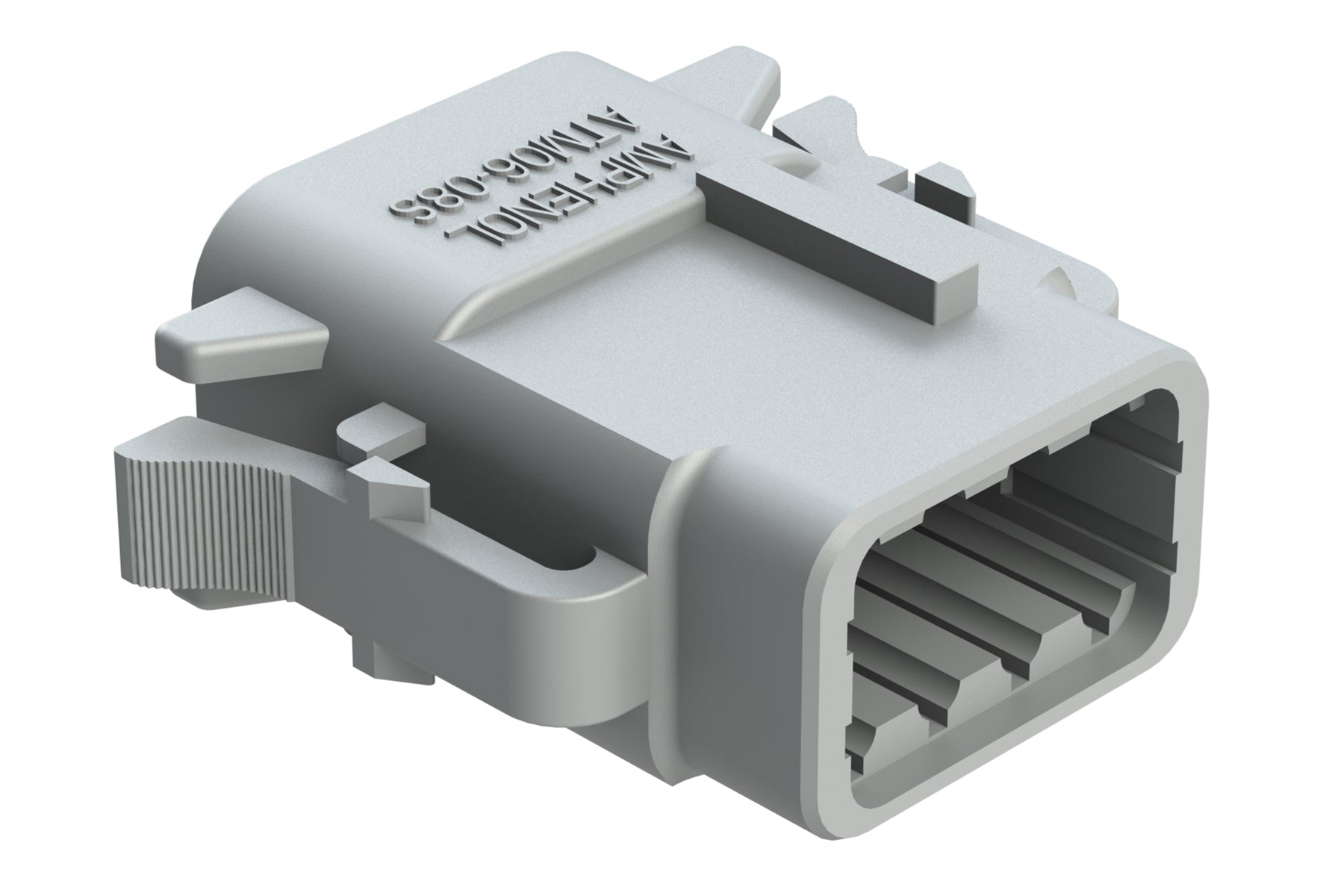

ATM06-08SA 8-Way Plug, Female Connector with A Position Key. DTM06-08SA

ATM06-08SA 8-Way Plug, Female Connector with A Position Key. DTM06-08SA

IMAGE MAY DIFFER

SKU:ATM06-08SA

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet
3D Model
Assembly Instructions
Assembly Instructions

Specifications

No. of Positions: 8 A Position Key
Gender: Female
Contact Size: 20
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: ATM04-08PA* Receptacle
Wedge Part: AWM-8S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG
Shape: Rectangular

8-Way Plug, Female Connector with A Position Key
