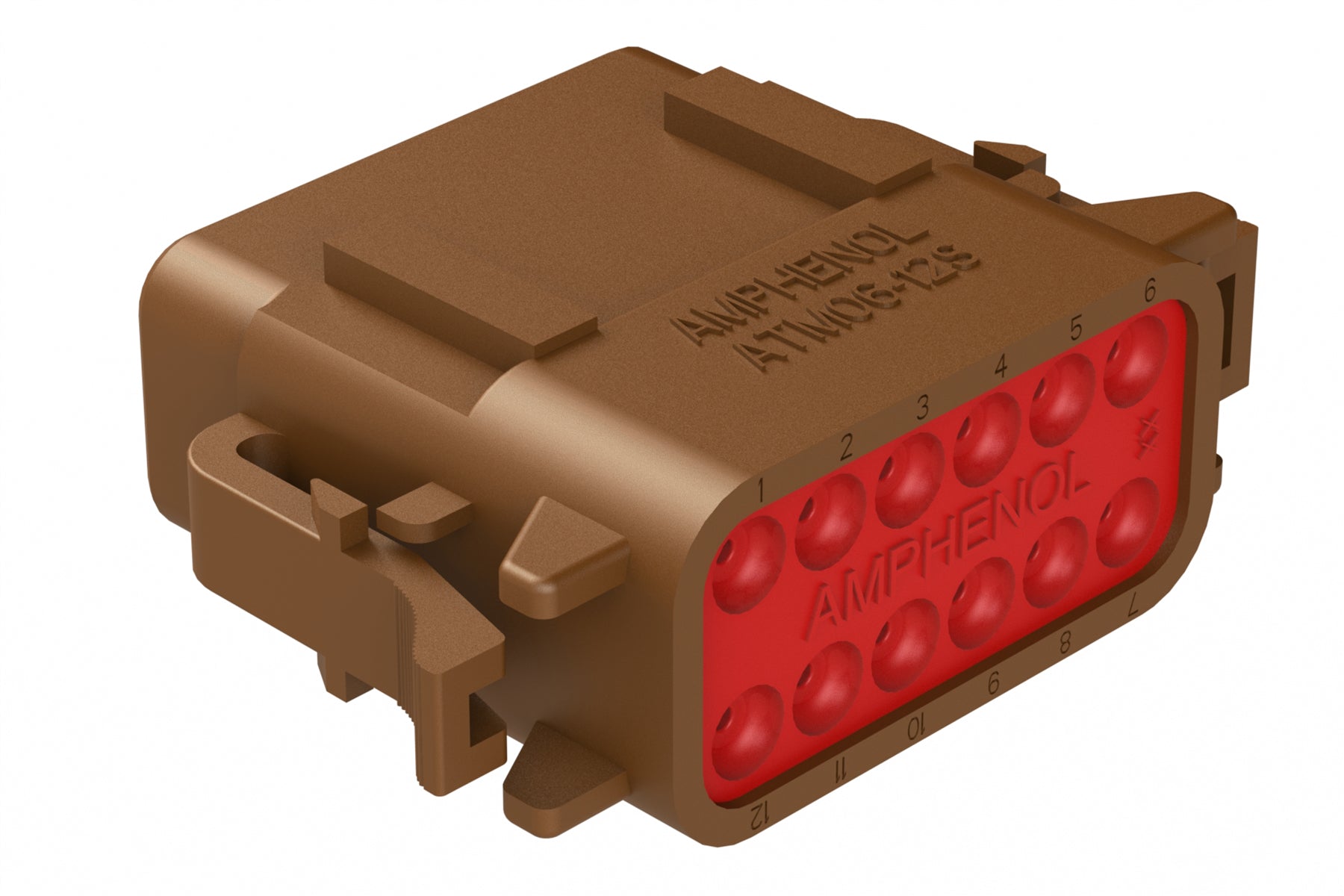

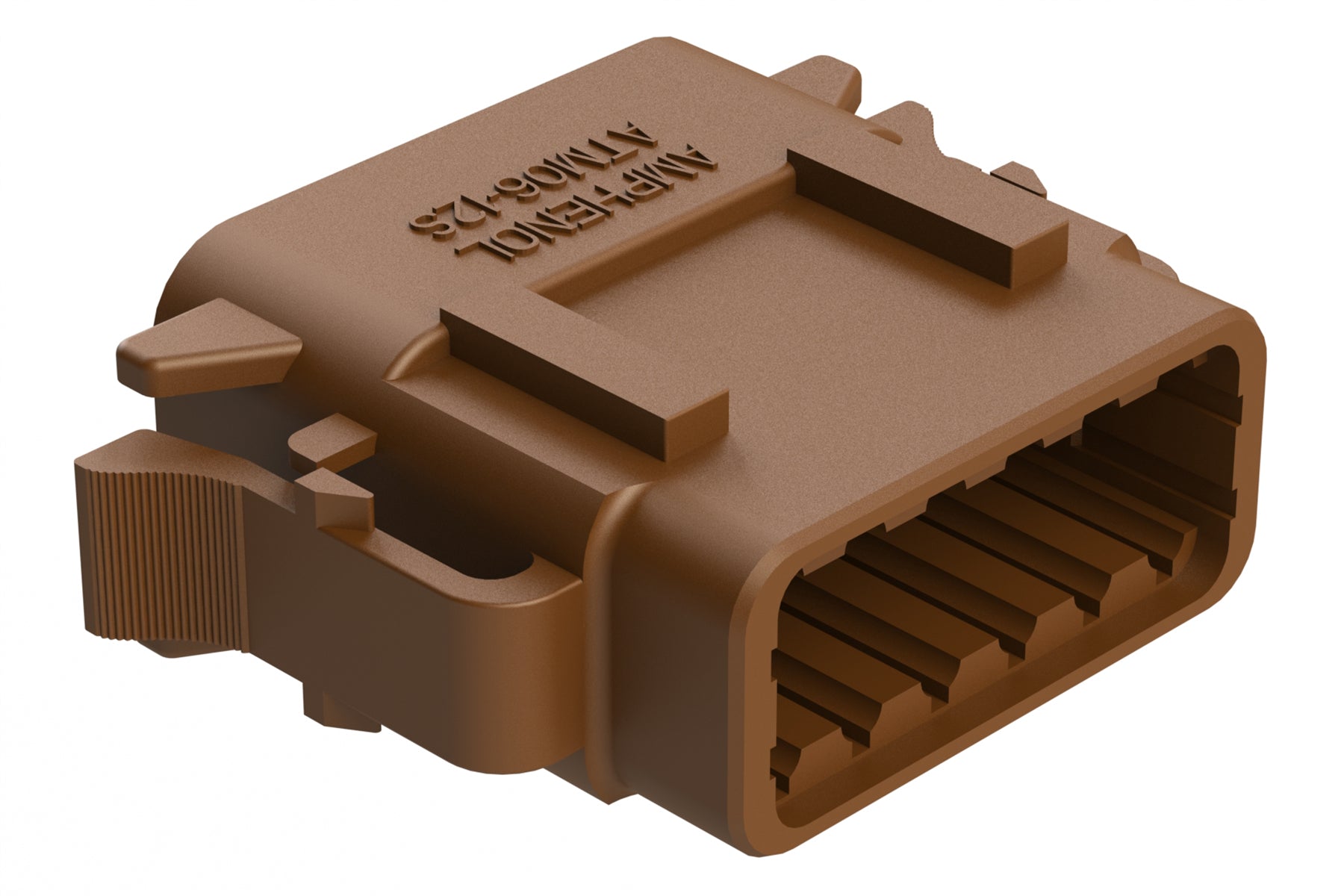

ATM06-12SD 12-Way Plug, Female Connector, D Position Key. DTM06-12SD
ATM06-12SD 12-Way Plug, Female Connector, D Position Key. DTM06-12SD
IMAGE MAY DIFFER
SKU:ATM06-12SD
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Stock Level
0 Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12 D Position KeyGender: Female
Contact Size: 20
Colour: Brown
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: ATM04-12PD* Receptacle
Wedge Part: AWM-12S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG
Shape: Rectangular
12-Way Plug, Female Connector, D Position Key
