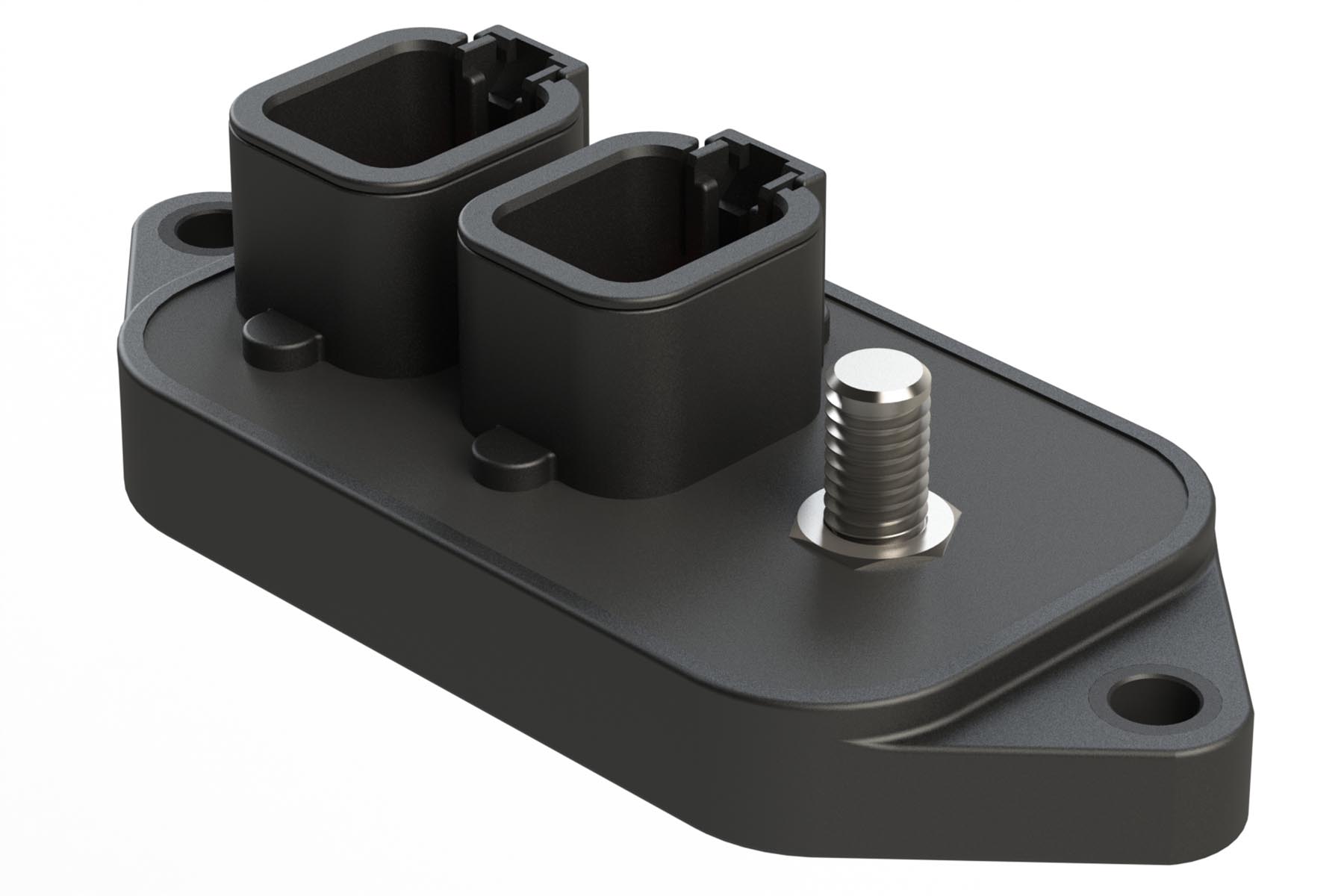

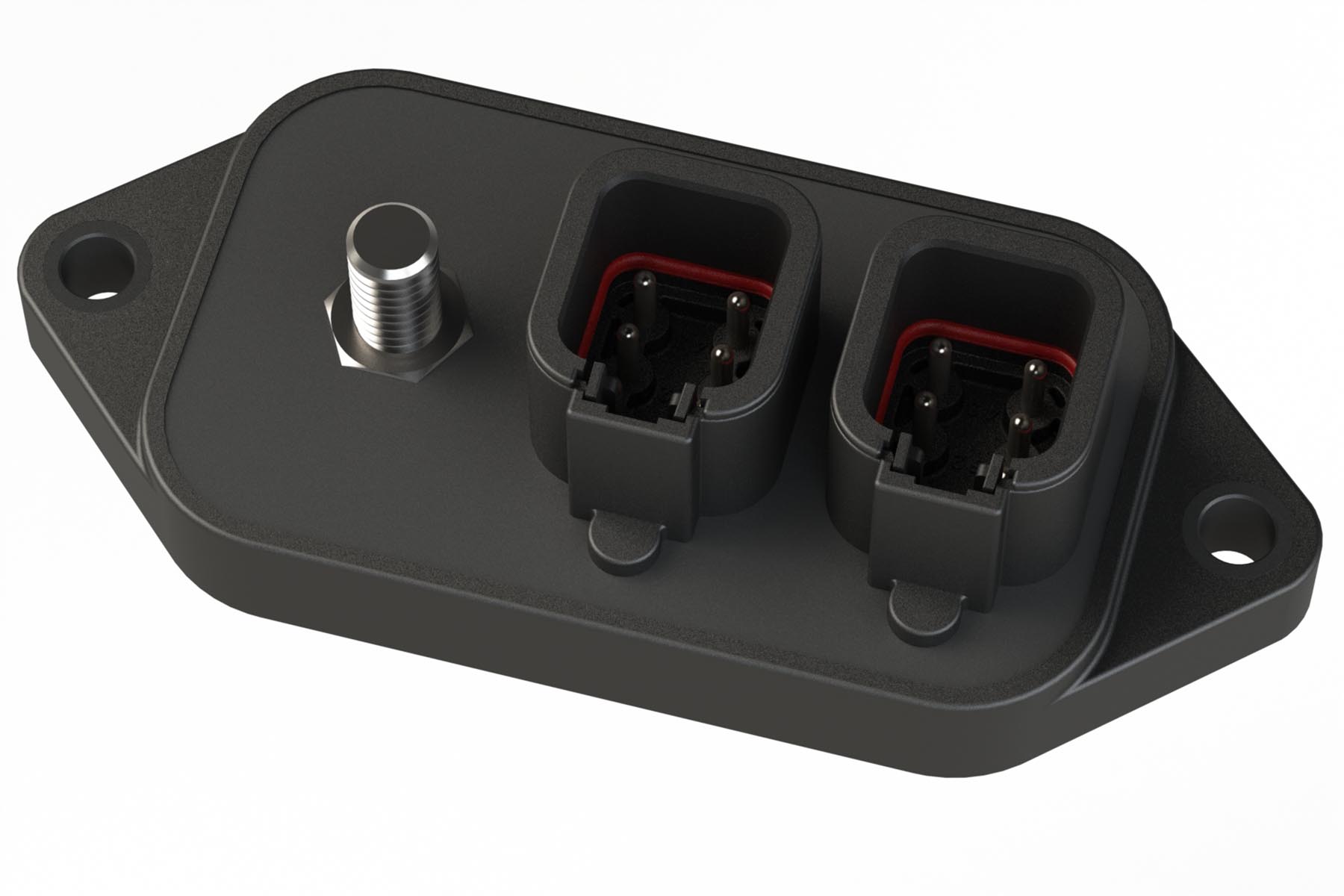

ATP04-06PBM14-X2-TS01 13 Position Power Splitter Control Module, 1 Threaded Stud and 6 Pin x 2 Device Layout, Nickel Contacts, 300A, Potted, Black
ATP04-06PBM14-X2-TS01 13 Position Power Splitter Control Module, 1 Threaded Stud and 6 Pin x 2 Device Layout, Nickel Contacts, 300A, Potted, Black
IMAGE MAY DIFFER
SKU:ATP04-06PBM14-X2-TS01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 13Gender: Male
Contact Size: 12
Contact Material: Copper Alloy
Amperage: 300
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-6S,ATP06-6SA-KIT01,ATP06-6SB-KIT01,ATP06-6S-BLK,ATP06-6S-CAP,ATP06-6S-EC01,ATP06-6S-EC01BK,ATP06-6S-KIT01,ATP06-6S-MM01,ATP06-6S-MM01BK,ATP06-6S-OMBLK,ATP06-6S-OMBLU,ATP06-6S-OMBRN,ATP06-6S-OMGRN,ATP06-6S-OMGRY,ATP06-6S-OMRDBLK,ATP06-6S-OMRDBLU,ATP06-6S-OMRDBRN,ATP06-6S-OMRDGRN,ATP06-6S-OMRDGRY,ATP06-6S-OMRDRED,ATP06-6S-OMRDWHT,ATP06-6S-OMRDYEL,ATP06-6S-OMRED,ATP06-6S-OMWHT,ATP06-6S-OMYEL,ATP06-6S-RD01,ATP06-6S-RD01BK,ATP06-6S-SR01,ATP06-6S-SR01BK,ATP06-6S-SR02,ATP06-6S-SR02BK
Shape: Rectangular
13 Position Power Splitter Control Module, 1 Threaded Stud and 6 Pin x 2 Device Layout, Nickel Contacts, 300A, Potted, Black
