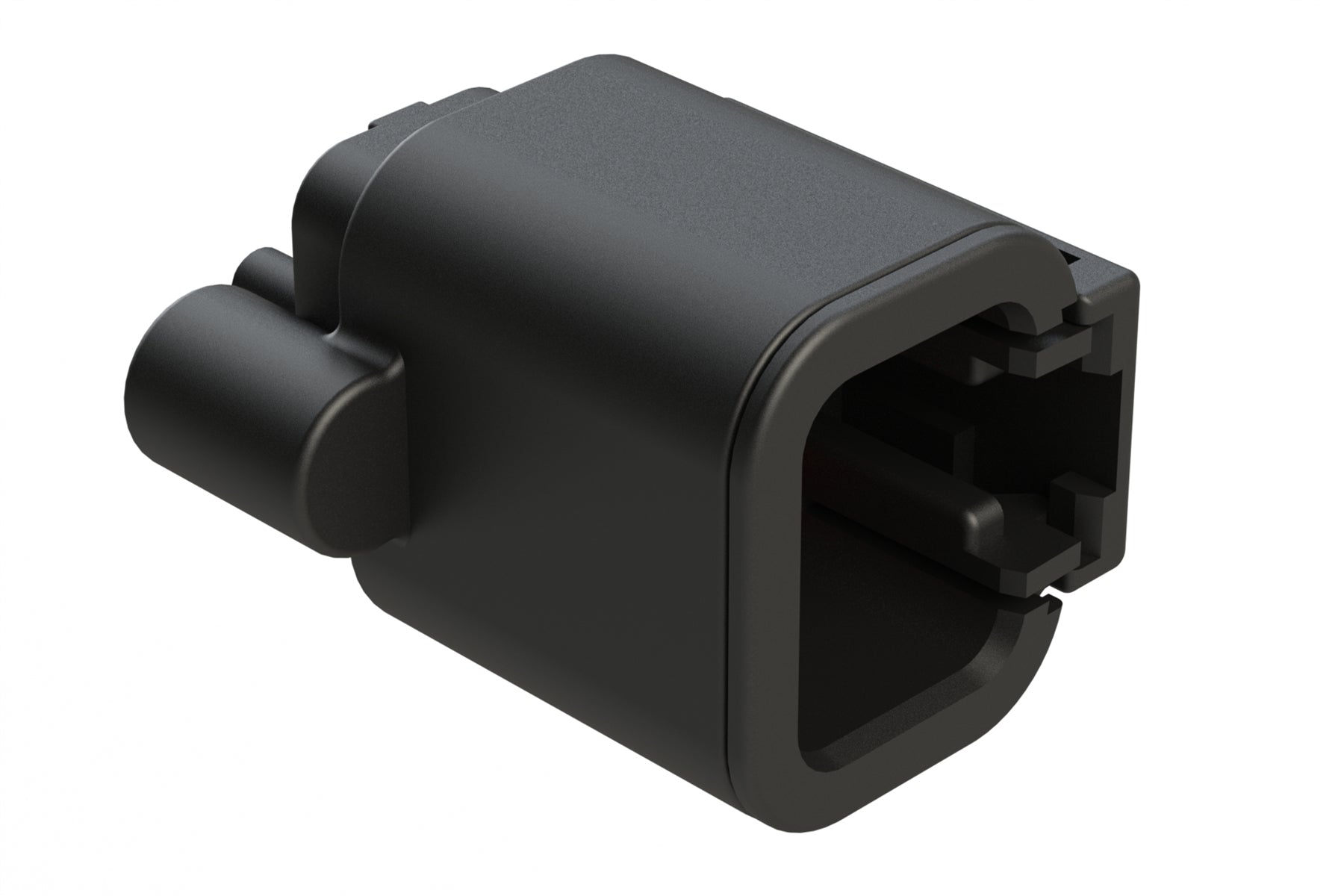

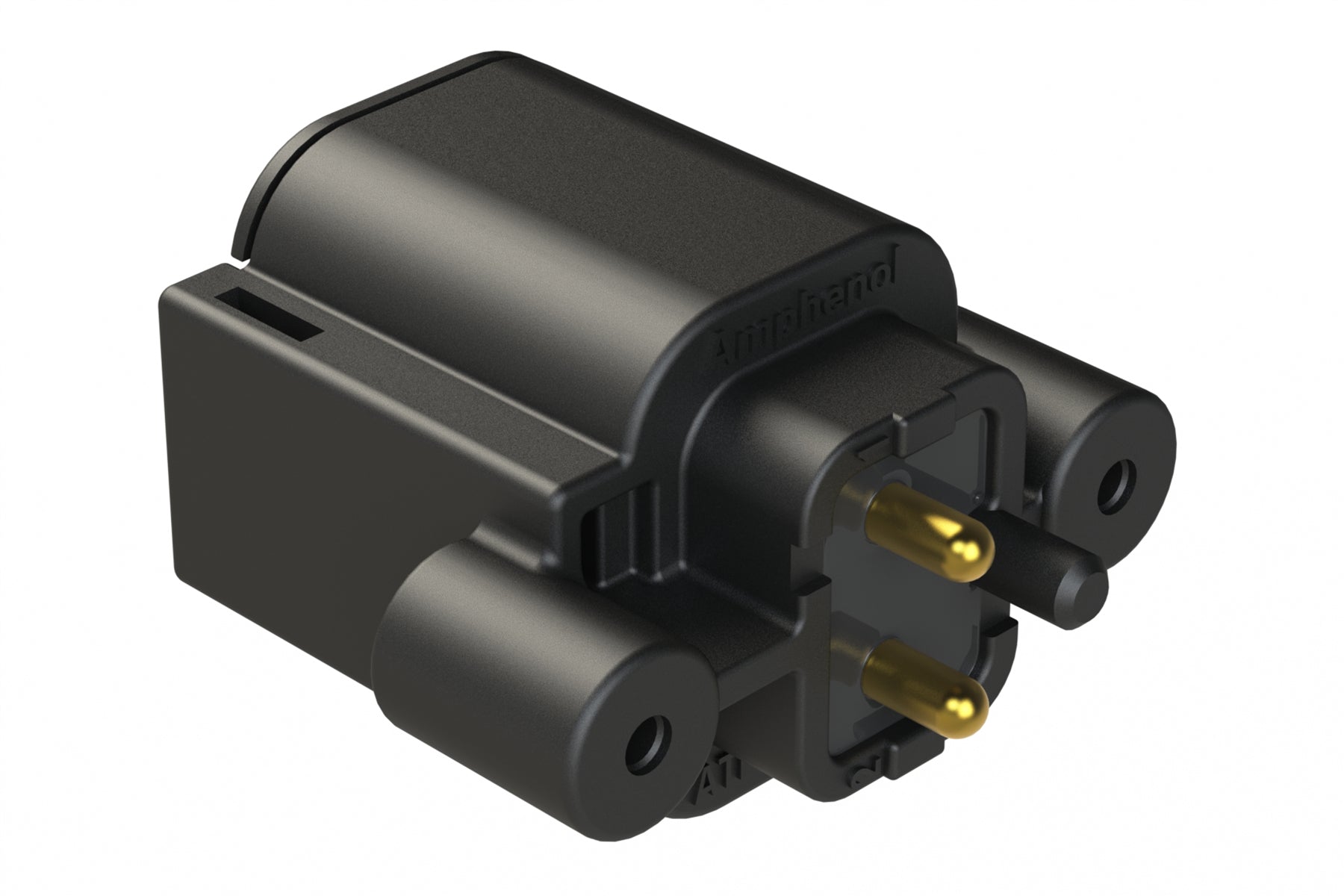

ATP04-2P-BM12 2 Position, Straight PCB Receptacle, Pin, Board Mount, Self-Threading, Gold Plated Contacts, Potting, Black
ATP04-2P-BM12 2 Position, Straight PCB Receptacle, Pin, Board Mount, Self-Threading, Gold Plated Contacts, Potting, Black
IMAGE MAY DIFFER
SKU:ATP04-2P-BM12
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 2Gender: Male
Contact Size: 12
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: <100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-2S*Plug
Wire Range: 10-14AWG
Shape: Rectangular
2 Position, Straight PCB Receptacle, Pin, Board Mount, Self-Threading, Gold Plated Contacts, Potting, Black
