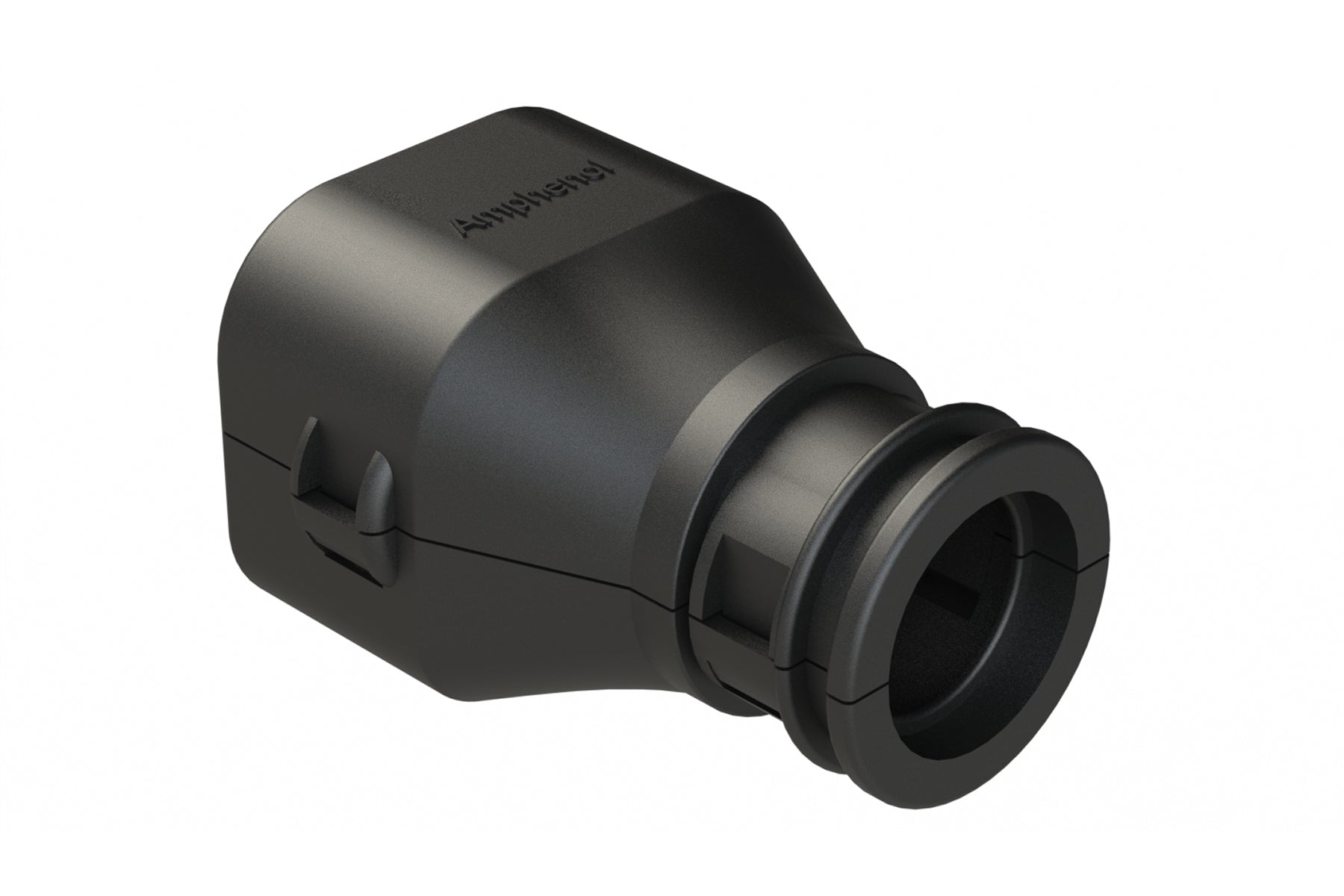

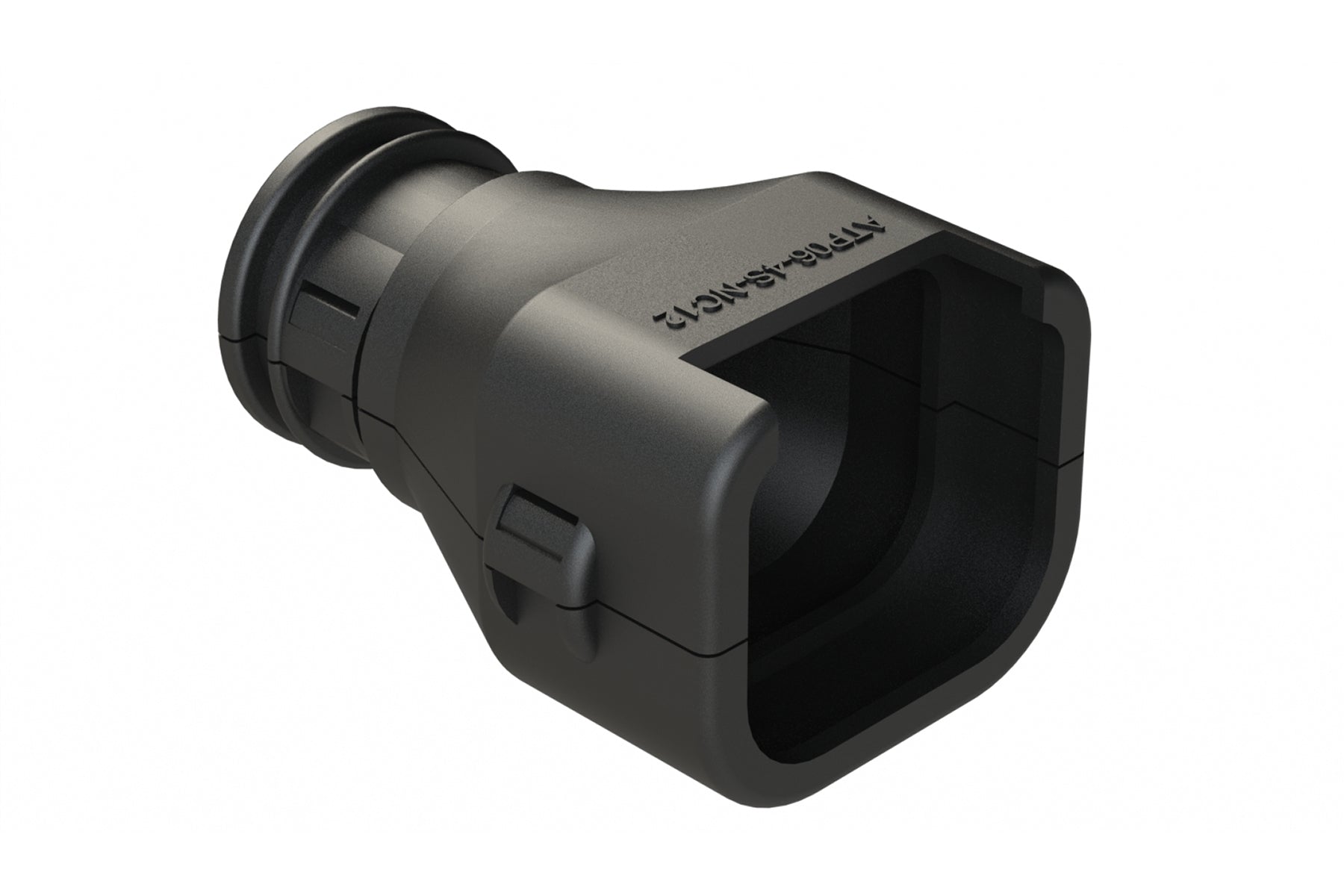

ATP06-4S-NC12 Backshell for 4 Position Plug or Receptacle

Name: ATP06-4S-NC12 Backshell for 4 Position Plug or Receptacle
Brand: Amphenol Sine Systems
SKU: ATP06-4S-NC12
Availability: InStock

IMAGE MAY DIFFER

SKU:ATP06-4S-NC12

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 4
Gender: Female
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-4S* Plug, ATP04-4P* Receptacle
Wedge Part: AWP-4S,AWP-4SA,AWP-4SB,AWP-4SC,AWP-4SD
Wire Range: 10-14 AWG
Shape: Rectangular

Backshell for 4 Position Plug or Receptacle
