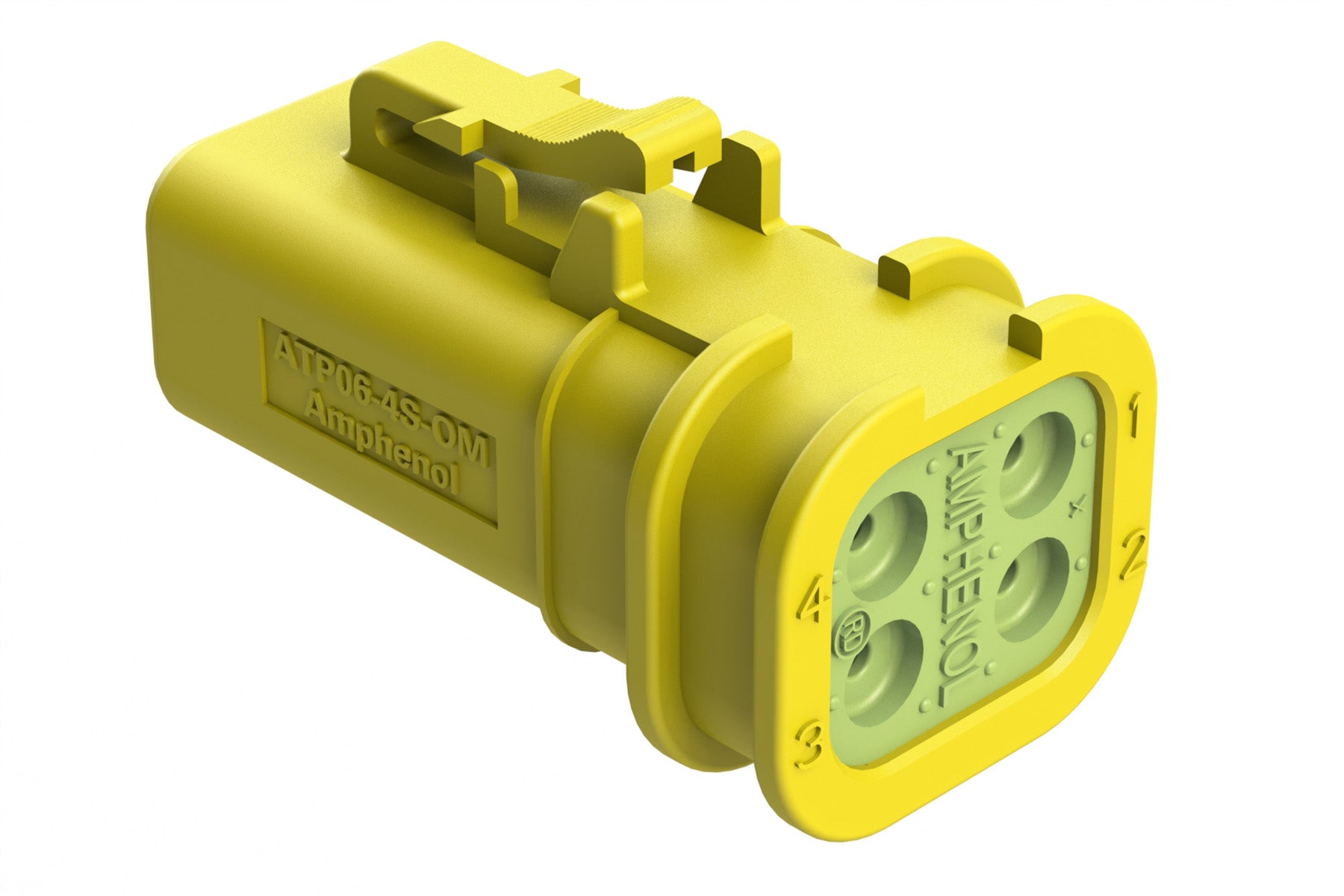

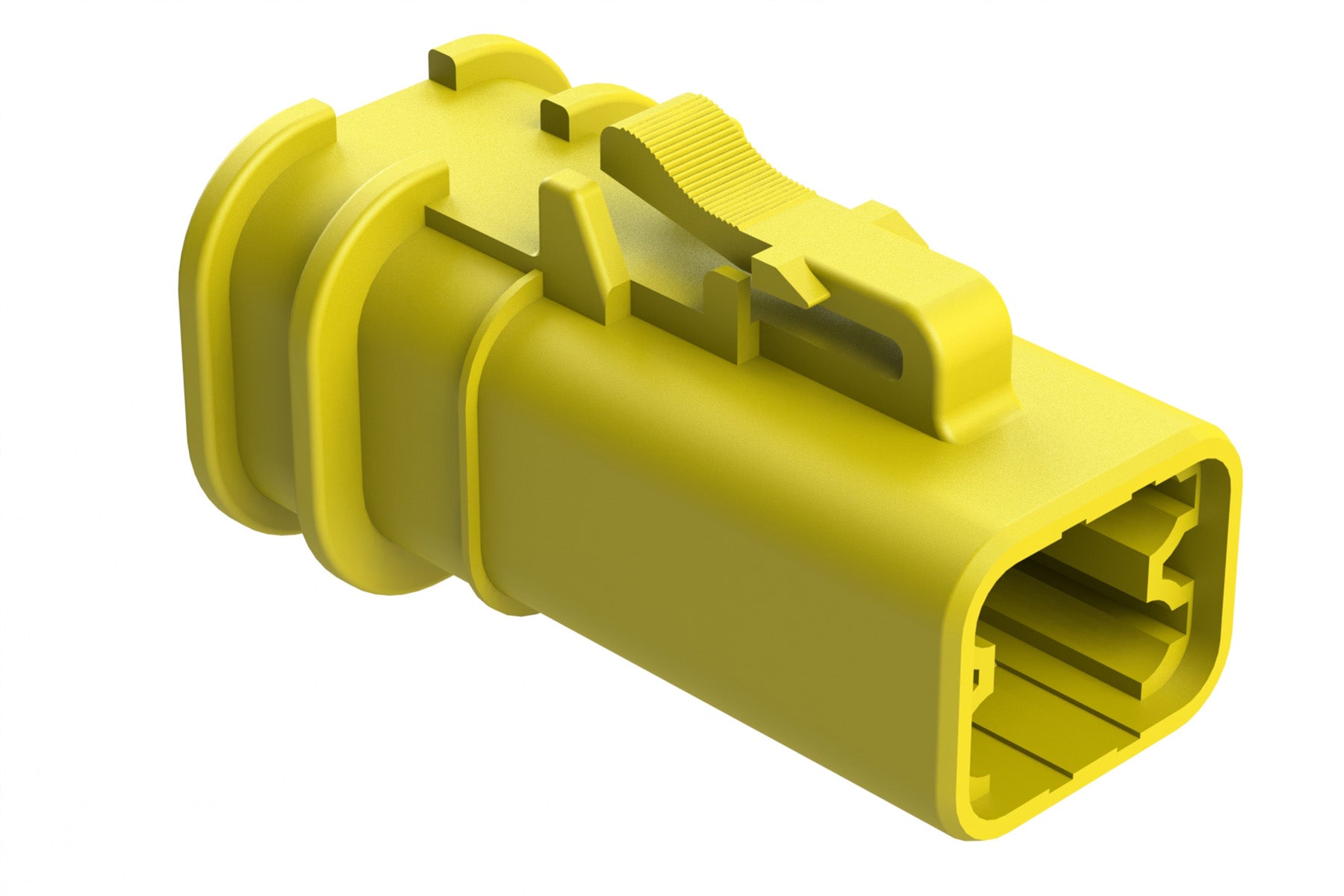

ATP06-4S-OMRDYEL 4 Position Plug, Socket,Overmold Compatible,, Reduced Diameter Rear Seal, Yellow
ATP06-4S-OMRDYEL 4 Position Plug, Socket,Overmold Compatible,, Reduced Diameter Rear Seal, Yellow
IMAGE MAY DIFFER
SKU:ATP06-4S-OMRDYEL
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 4Gender: Female
Contact Size: 12
Colour: Yellow
IP Rating: IP68 (1M of water for a period of 24 hrs, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP04-4P*
Wedge Part: AWP-4S,AWP-4SA,AWP-4SB,AWP-4SC,AWP-4SD
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG (5.0-2.0mm²)
Shape: Rectangular
4 Position Plug, Socket,Overmold Compatible,, Reduced Diameter Rear Seal, Yellow
