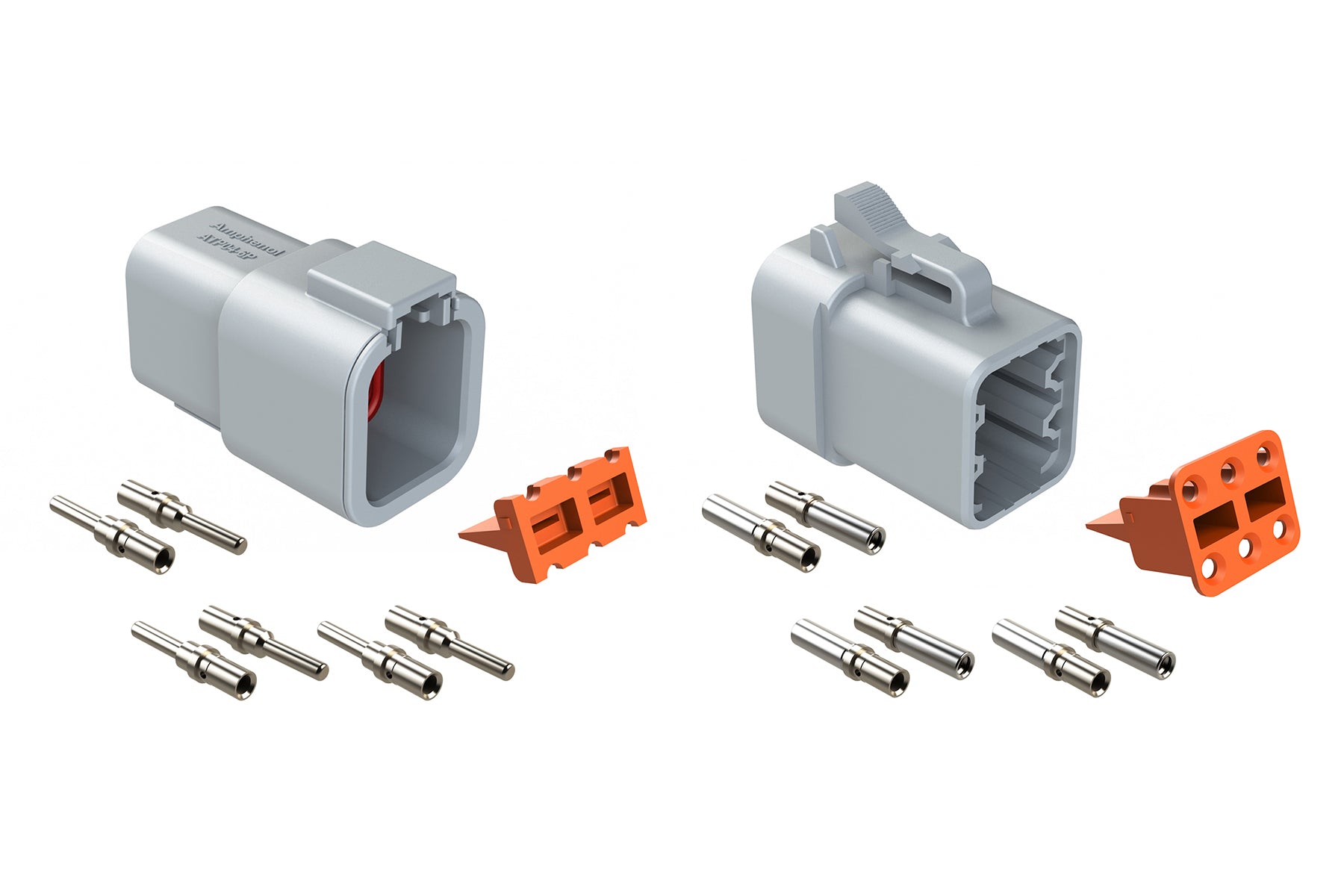

ATP6PS-CKIT 6 Position Plug & Receptacle Kit, Pin Contacts and Wedgelock Included
ATP6PS-CKIT 6 Position Plug & Receptacle Kit, Pin Contacts and Wedgelock Included
IMAGE MAY DIFFER
SKU:ATP6PS-CKIT
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Male & Female
Contact Size: 12
Contact Material: Copper Alloy, Nickel Plated
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: Complete Kit
Wedge Part: AWP-6S,AWP-6P
Seal Diameter: 3.40mm (.134") - 4.95mm (.195")
Wire Range: 12-14 AWG
Shape: Rectangular
6 Position Plug & Receptacle Kit, Pin Contacts and Wedgelock Included
