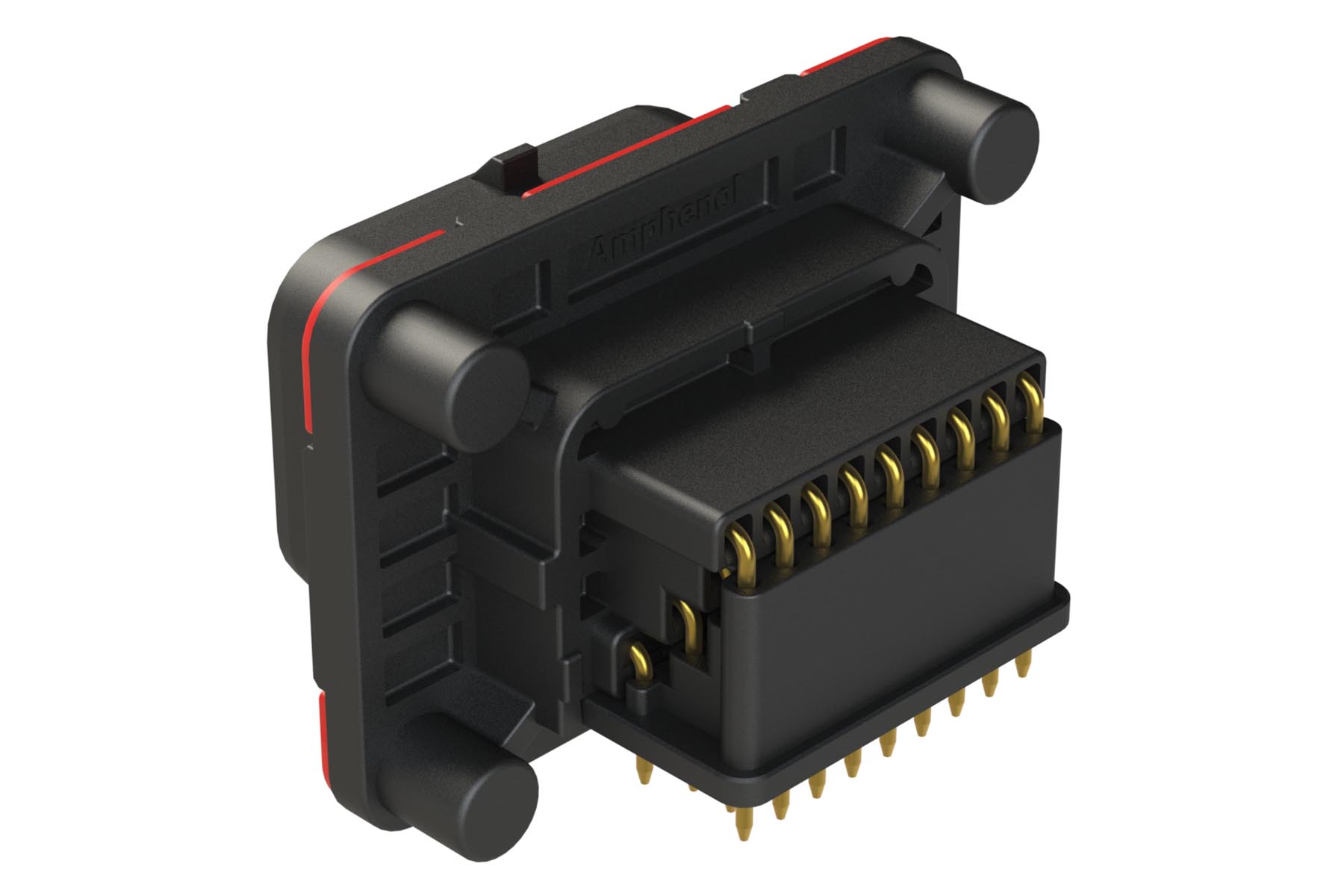

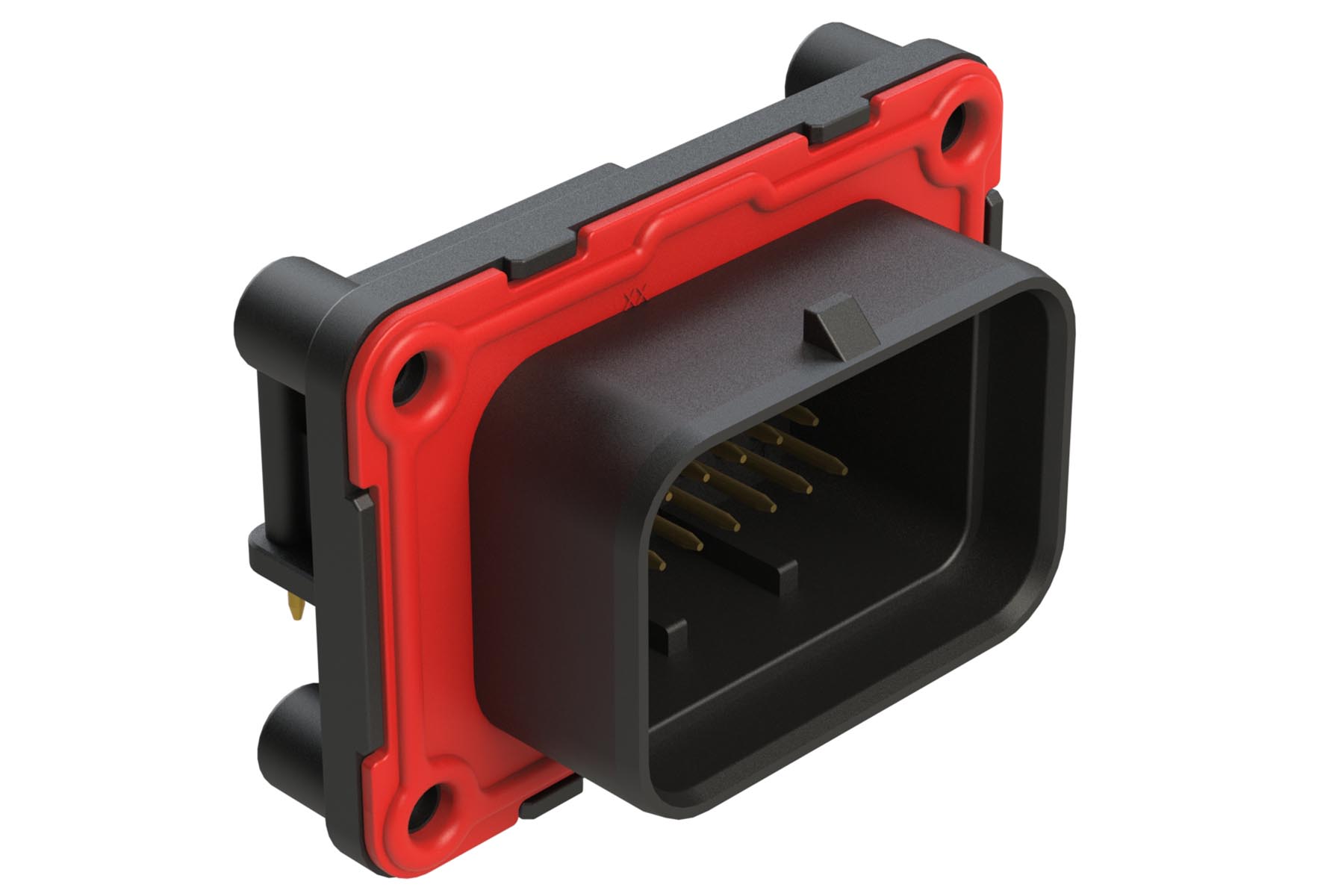

ATS13-34PB1-BM01 34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Single Latch, Self-Threading, Keyed B, Black
ATS13-34PB1-BM01 34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Single Latch, Self-Threading, Keyed B, Black
IMAGE MAY DIFFER
SKU:ATS13-34PB1-BM01
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 34Gender: Male
Contact Size: 20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: 500
Housing Material: Thermoplastic
Seal Material: Silicon Rubber
Mating Part: ATS06-34SB1-* PLUG
Wire Range: 18-28 AWG
Shape: Rectangular
34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Single Latch, Self-Threading, Keyed B, Black
