DuraMate™ AHDP

Size 18 with 8 insert arrangements 2, 6, 8, 14(x3), 20 and 21
Size 24 with 16 insert arrangements 7(x2), 9, 14, 16, 18(x2), 19, 21, 23, 27, 29, 31, 33, 35 and 47

DuraMate™ AHDM

Size 18 with 6 insert arrangements 2, 6, 8, 14, 20 and 21
Size 24 with 15 insert arrangements 7(x2), 9, 14, 16, 18, 19, 21, 23, 27, 29, 31, 33, 35 and 47

DuraMate™ AHDP ISOBUS 91 Series

Size 24, 9 Position

DuraMate™ AHDM/AHDBM ISOBUS 91 Series

Size 24, 9 Position

Amphenol Sine Systems’ DuraMate™ Family of environmentally-sealed, multi-pin, heavy duty, plastic (AHDP) or metal (AHDM/AHDBM) circular connectors provide an economical, quick-connect, bayonet-locking system manufactured to withstand the challenges and complexities of harsh-environment, off-road applications. Our ISOBUS products specifically meet ISO 11783 standards (for control and communications between tractors, implements and software) for agricultural applications.

Features

3 key-way bayonet design ensures proper mating of connectors
High density signal and mixed power insert configurations
Operating temperature range: -55°C to +125°C
High current configurations incorporating revolutionary RADSOK® contacts
High strength impact resistant & lightweight thermoplastic or zinc-alloy metal housings
Low insertion force stamped terminals offer improved manufacturing efficiencies
Environmentally-sealed and engineered rapid and secure mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
Utilizes A Series™ standard contact system (Stamped & Formed or Machined)
Wire entry sealing available in three separate ranges for discrete wire applications
Smooth Ring Adapters (SRA) are designed for use without backshells for a smaller footprint
Small Thread Adapters (STA) provide an enhanced “step down” threading for use with screw-on or clamshell backshells
Wide Thread Adapters (WTA) provide an enhanced threading for use with our wide variety of screw-on or clamshell backshells
Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells

Applications: Harsh Environment, Off-Road and Agricultural applications

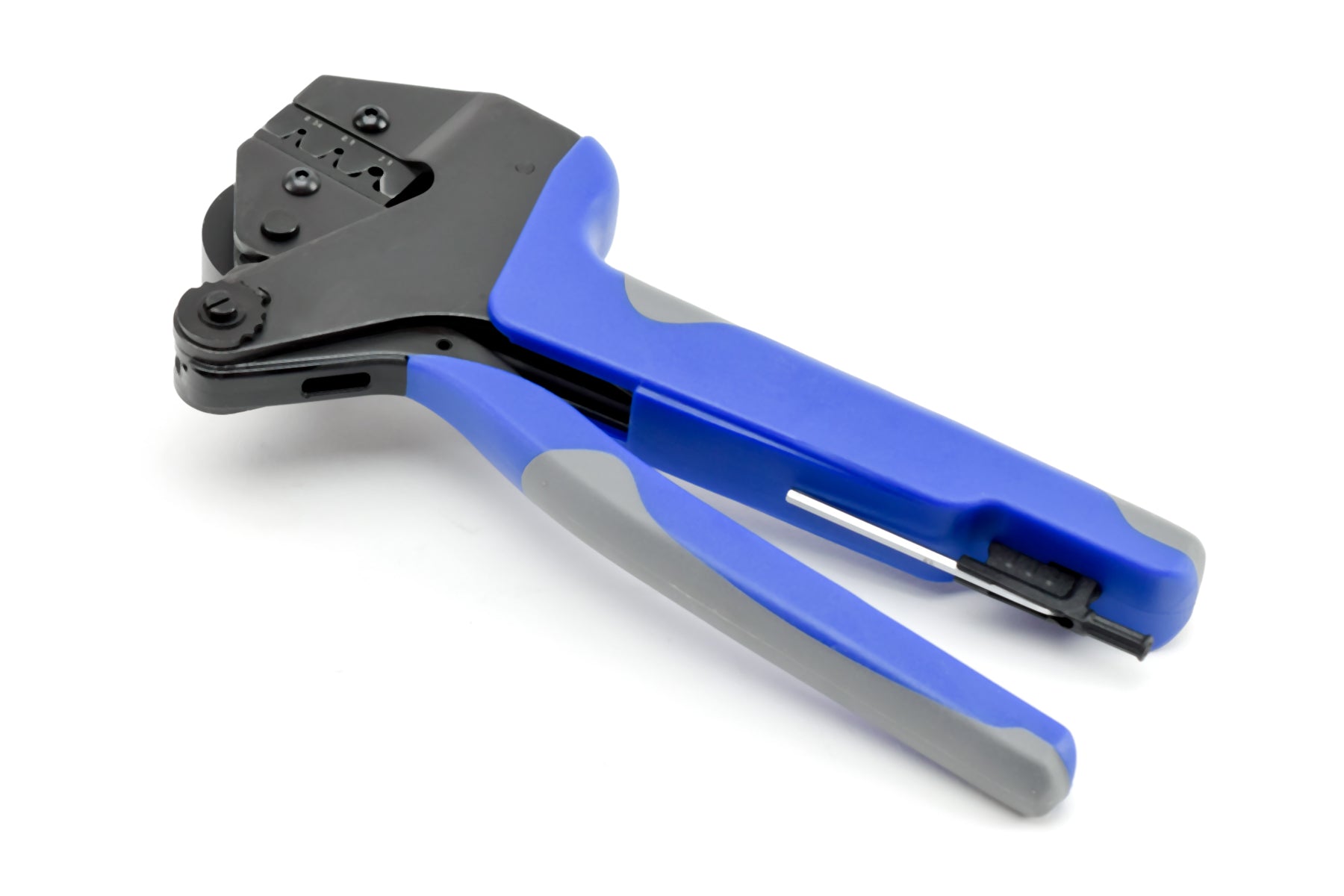

ATT-8M-01 Hand Crimp Tool for Machined Contacts #8 with 6 and 10mm²
