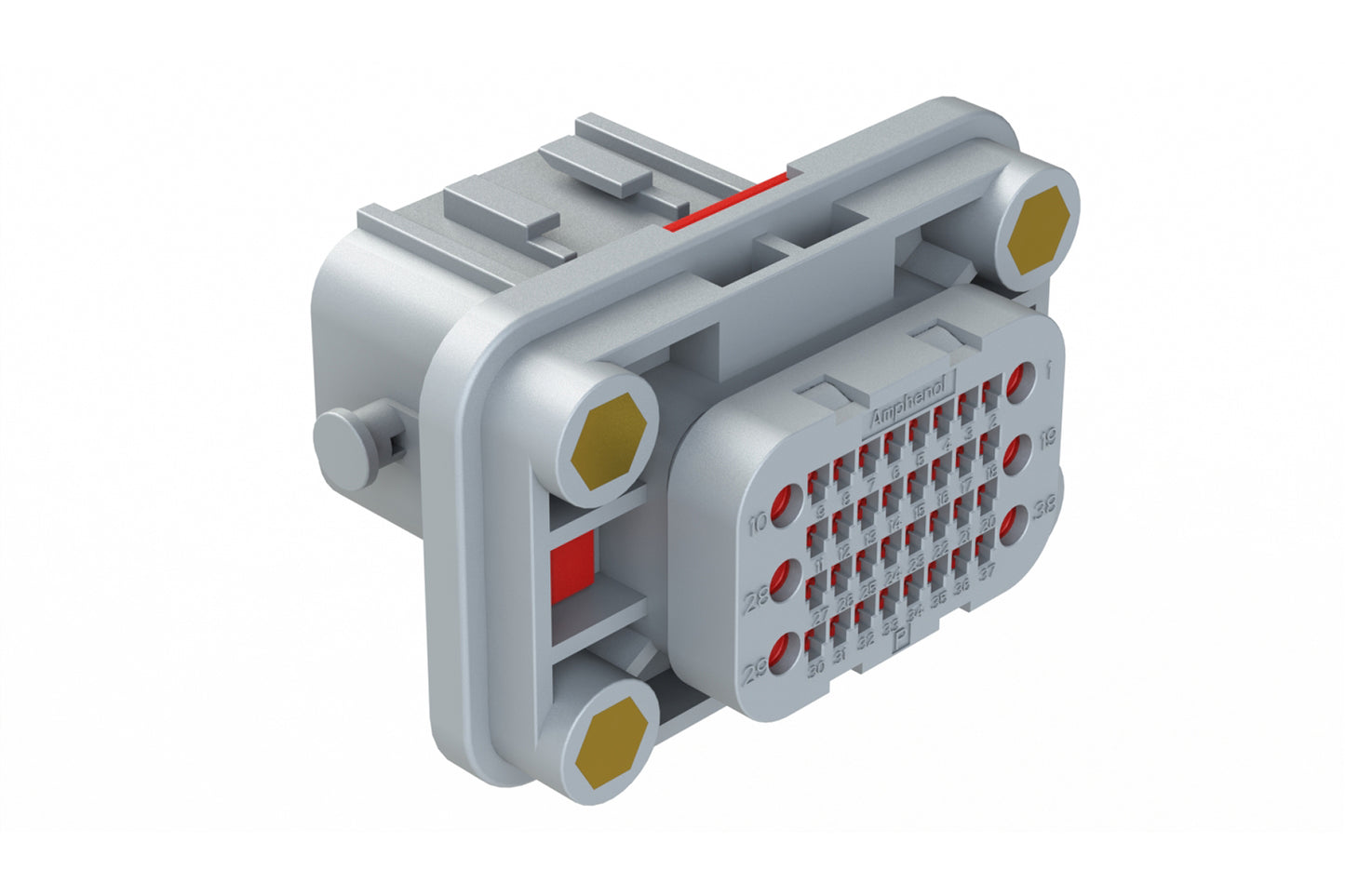

ATV04-38PA-S2 38 position receptacle, Pin, power and signal, keyed A

Name: ATV04-38PA-S2 38 position receptacle, Pin, power and signal, keyed A
Brand: Amphenol Sine Systems
SKU: ATV04-38PA-S2
Availability: InStock

IMAGE MAY DIFFER

SKU:ATV04-38PA-S2

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 38
Gender: Male
Contact Size: 16,1.0mm x.064mm
Colour: Grey
IP Rating: IP68 and IP69K (in mated condition)
Insulation Resistance: 500 Megohms minimum
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94
Mating Part: ATV06-38SA-S2
Wire Range: Ø1.5-1.8mm(20AWG) / Ø1.6-2.8mm (22-14AWG)
Shape: Rectangular

38 position receptacle, Pin, power and signal, keyed A
