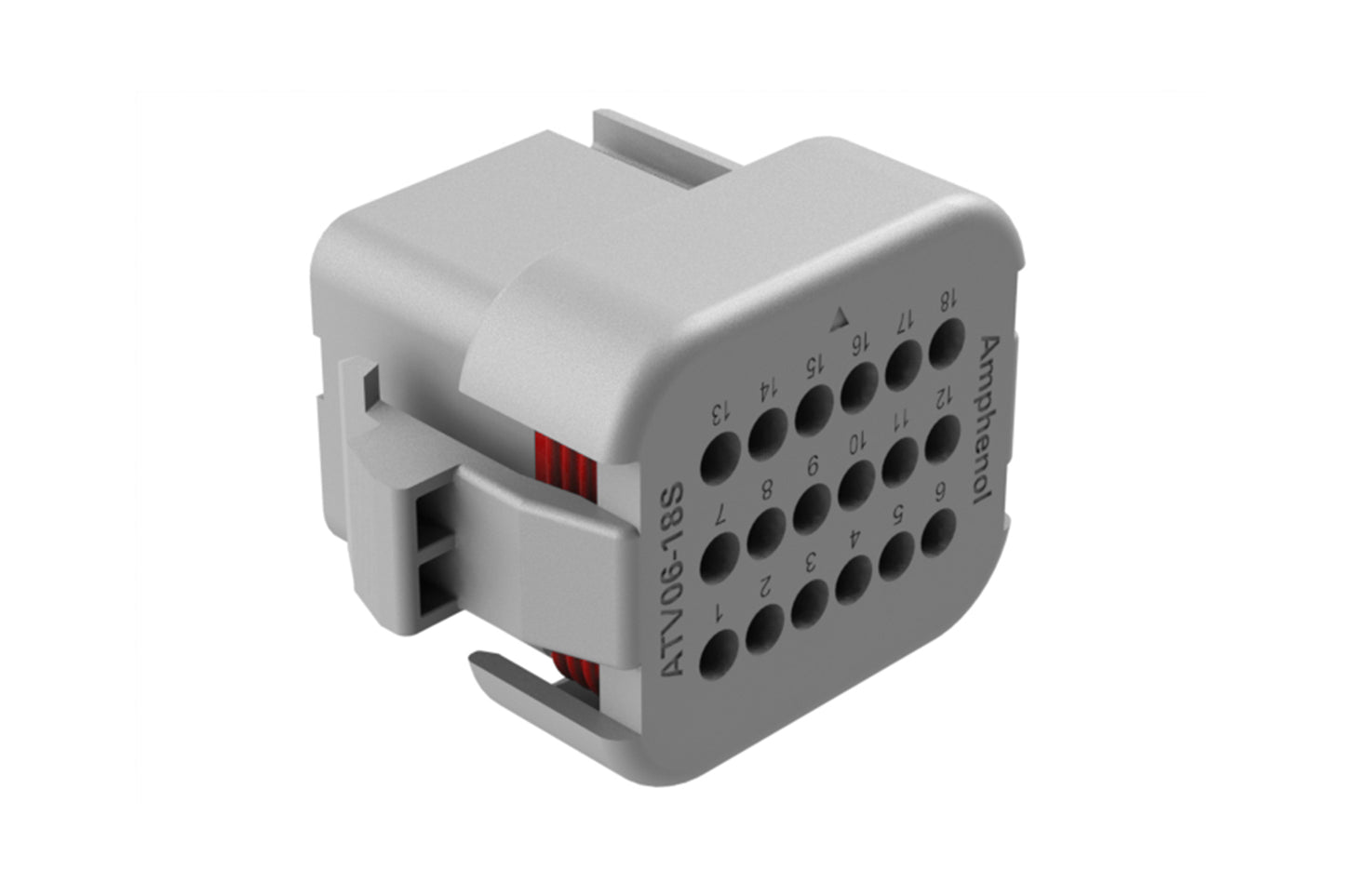

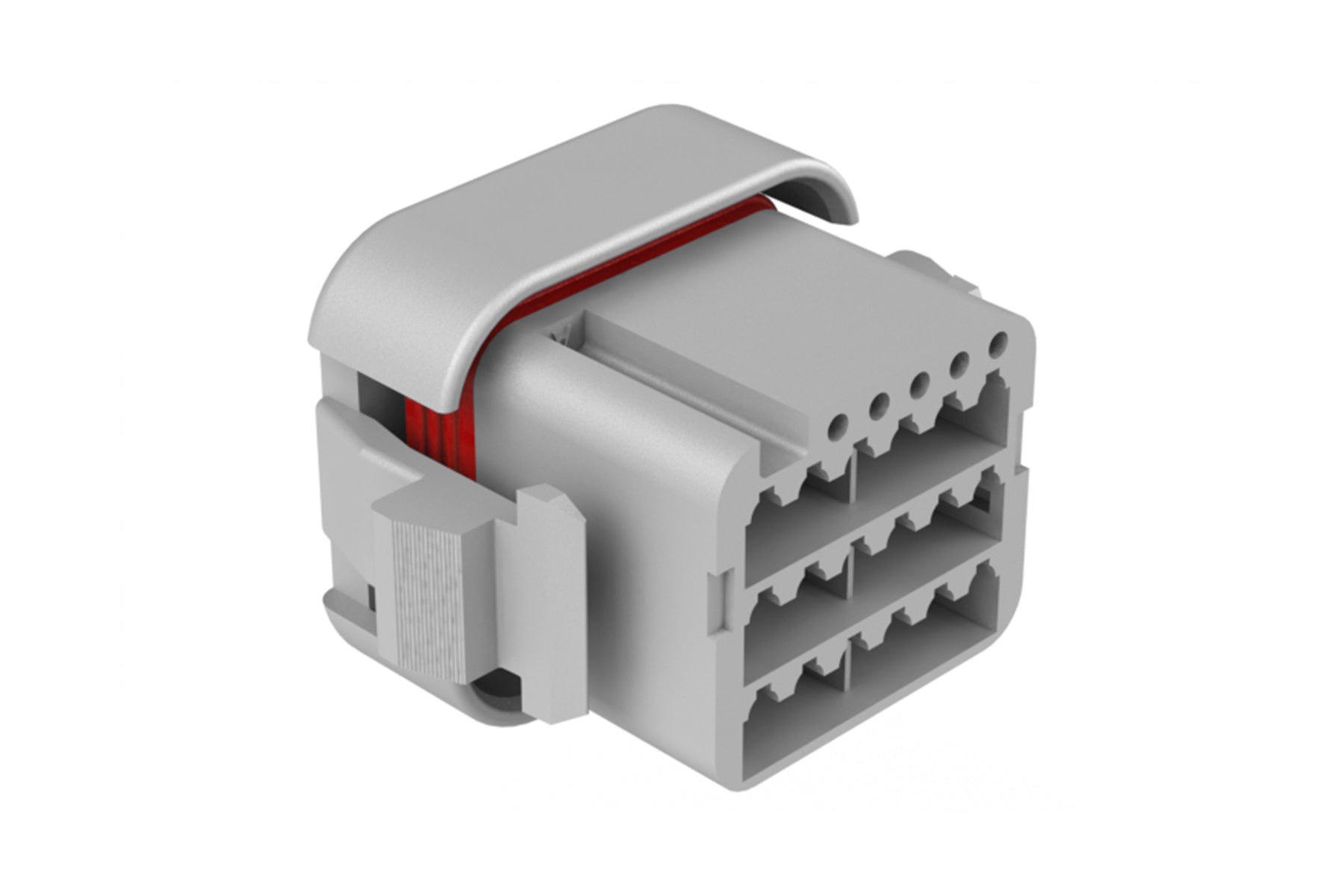

ATV06-18SA 18 position plug, Size 16 contact, key A, Standard Seal. DTV06-18SA
ATV06-18SA 18 position plug, Size 16 contact, key A, Standard Seal. DTV06-18SA
IMAGE MAY DIFFER
SKU:ATV06-18SA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 18Gender: Female
Contact Size: 16
Colour: Grey
IP Rating: IP68 (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: - 55C° to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATV02-18PA, ATV04-18PA
Wedge Part: AWV-18S
Seal Diameter: 2.23mm (.088") - 3.00mm (.118")
Wire Range: 14-20 AWG
Shape: Rectangular
18 position plug, Size 16 contact, key A, Standard Seal
