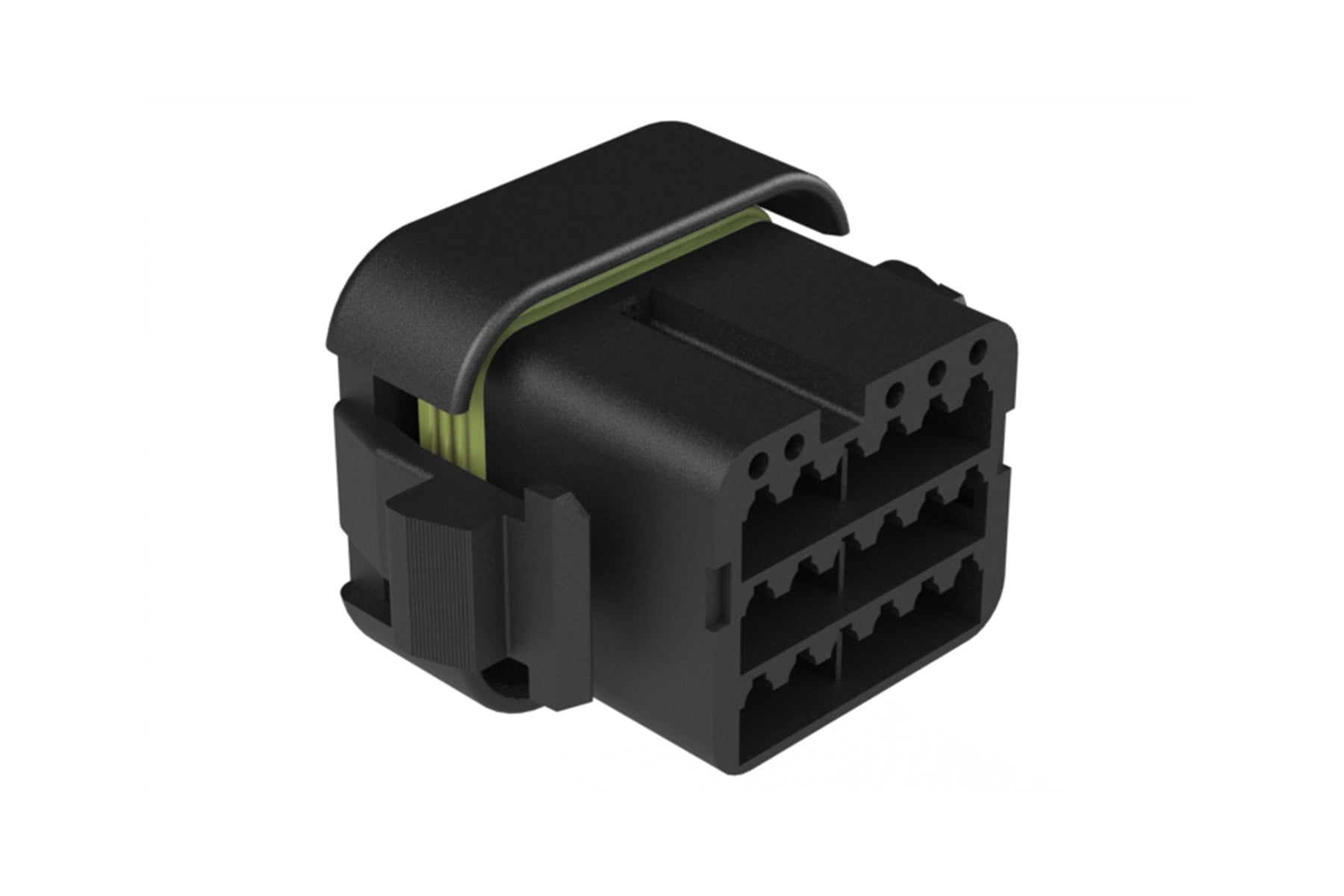

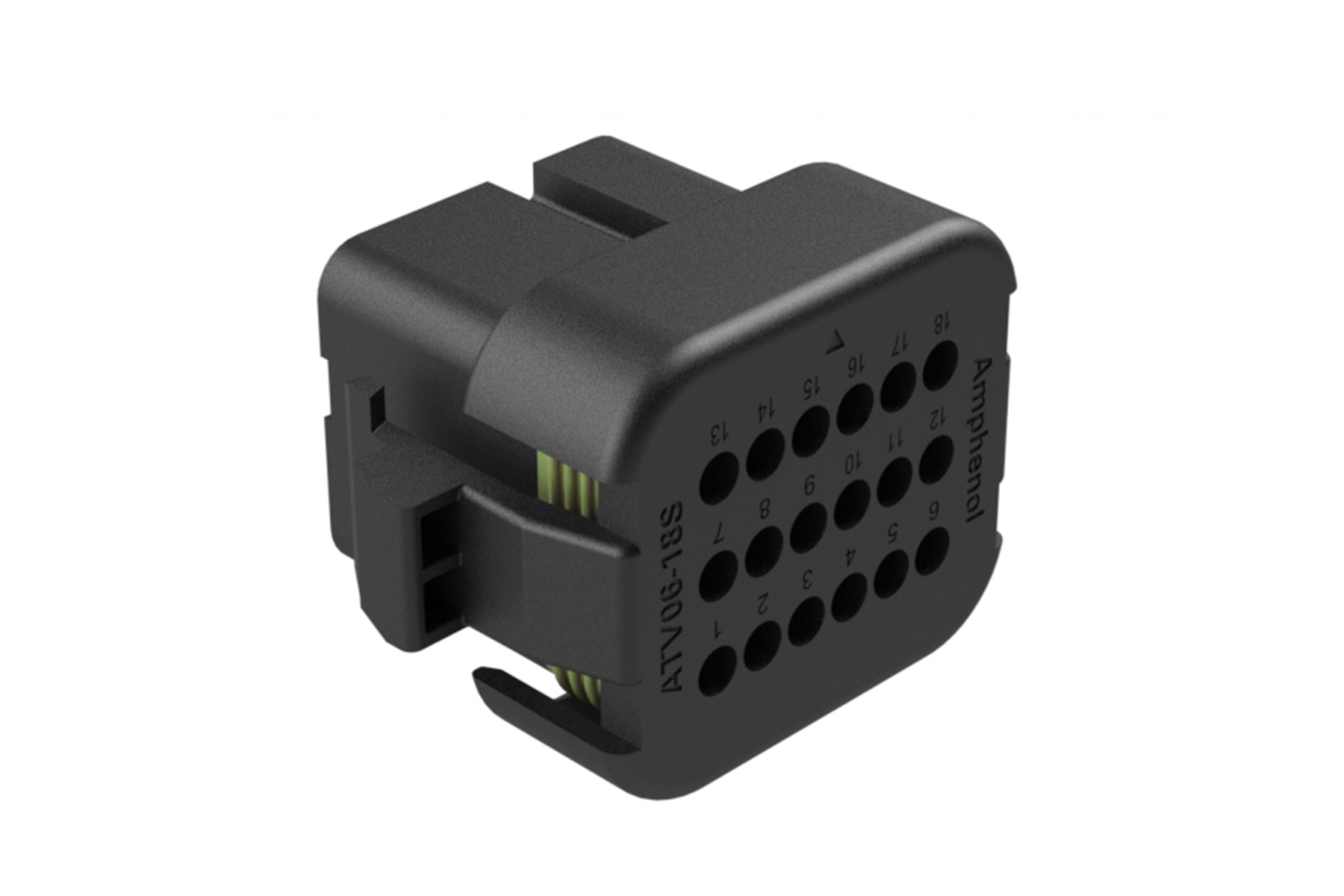

ATV06-18SB-RR01 18 position plug, Size 16 contact, key B, double reduced seal. DTV06-18SB-C015
ATV06-18SB-RR01 18 position plug, Size 16 contact, key B, double reduced seal. DTV06-18SB-C015
IMAGE MAY DIFFER
SKU:ATV06-18SB-RR01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 18Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP68 (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: - 55C° to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATV02-18PB-RR01,ATV04-18PB-RR01
Wedge Part: AWV-18S
Seal Diameter: 1.12mm (.044") - 2.31mm (.091")
Wire Range: 16-22 AWG
Shape: Rectangular
18 position plug, Size 16 contact, key B, double reduced seal
