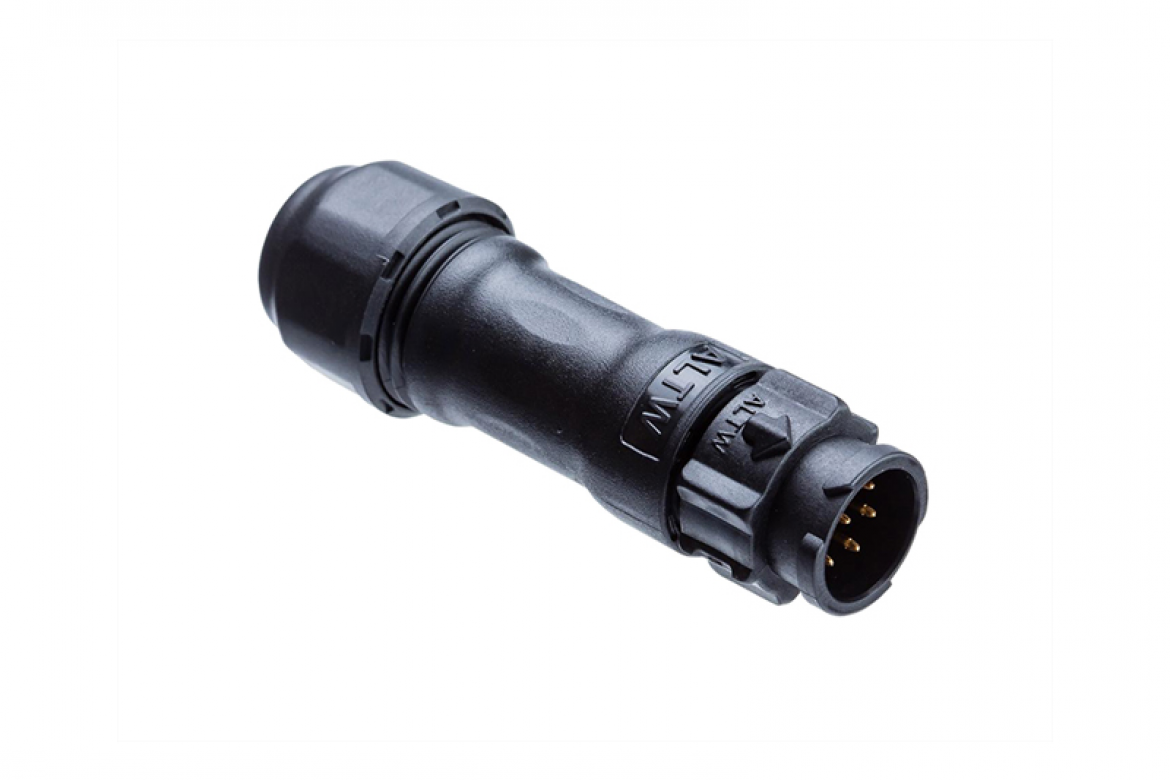

BD-02BMMA-QL8AP0 X-Lok Push Lock Connector
BD-02BMMA-QL8AP0 X-Lok Push Lock Connector
IMAGE MAY DIFFER
SKU:BD-02BMMA-QL8AP0
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Specifications
No. of Positions: 02Contact Material: Plastic, Non-shielded
AWG: 20 - 22 AWG
Amperage: 5A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 1000
Shape: Straight
Cable Diameter: Φ5.0-Φ6.0mm, Φ6.0-Φ8.0mm, Φ8.0-Φ10.0mm
Connector Gender: Male
Contact Gender: Male
Salt Spray: 48h
Operating Voltage: 300V
Receptacle Nut Thread: N/A
Mating Style: Push Lock
Fasten Style: N/A
Assembly Style: Crimp
Length (mm): N/A
Panel Thickness: N/A
X-Lok, Standard Size, Plastic, 5A, 02 pins, Male Connector, Male Contact, Straight, Push Lock, Crimp, Field Installable, Φ5.0 - Φ10.0mm, IP68 Mated
