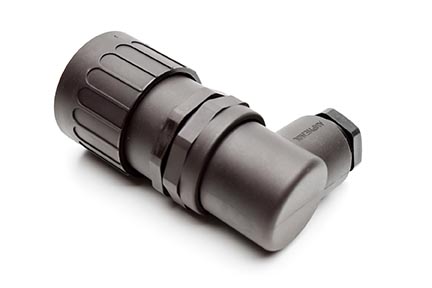

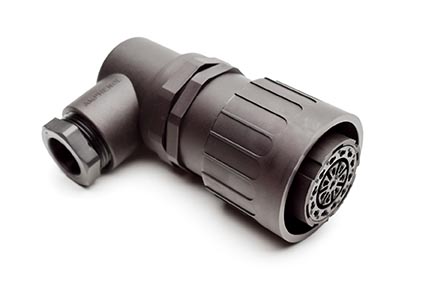

C016 10F019 004 2 19+PE Female cable connector with strain relief and clamping ring. For use with crimp contacts (sold separately).

C016 10F019 004 2 19+PE Female cable connector with strain relief and clamping ring. For use with crimp contacts (sold separately).

IMAGE MAY DIFFER

C01610F0190042

$0.00 AUD
$0.00 AUD
Sale Sold out

Downloads

Stock Level

0 Datasheet

Specifications


Style: F
Current Carrying Capacity: 6A
Current Rating: 6A
Contact Size: 1.5mm
Contact Quantity: 20
IP Rating: IP65
Contact Plating: Silver/Gold
Termination: Crimp
Insulation Resistance: ≥ 10(8)  Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Housing Material: Polyamid 6.6
Wire Range: 0.14 - 1.0mm² (26-18 AWG)
Shape: circular View full details
