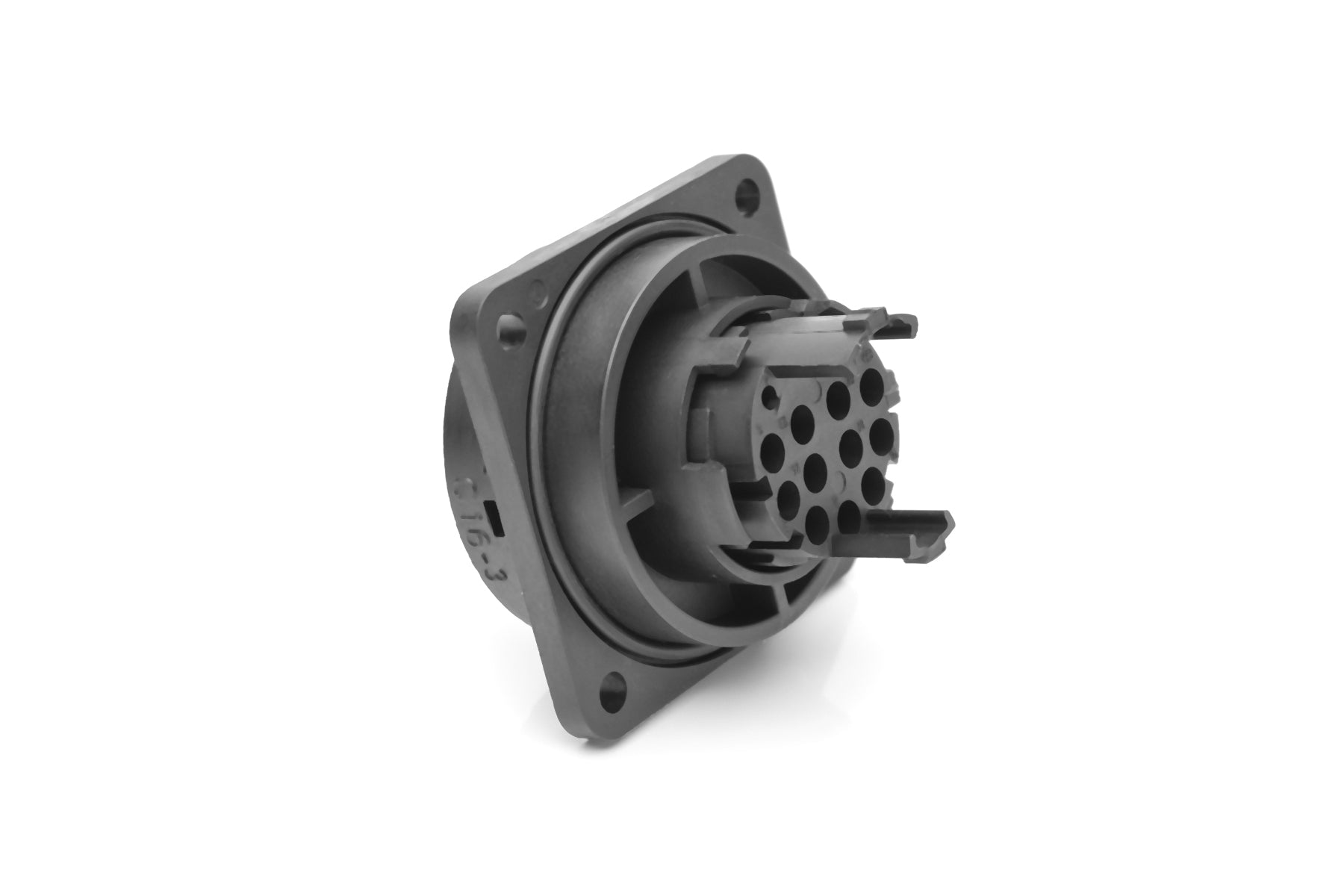

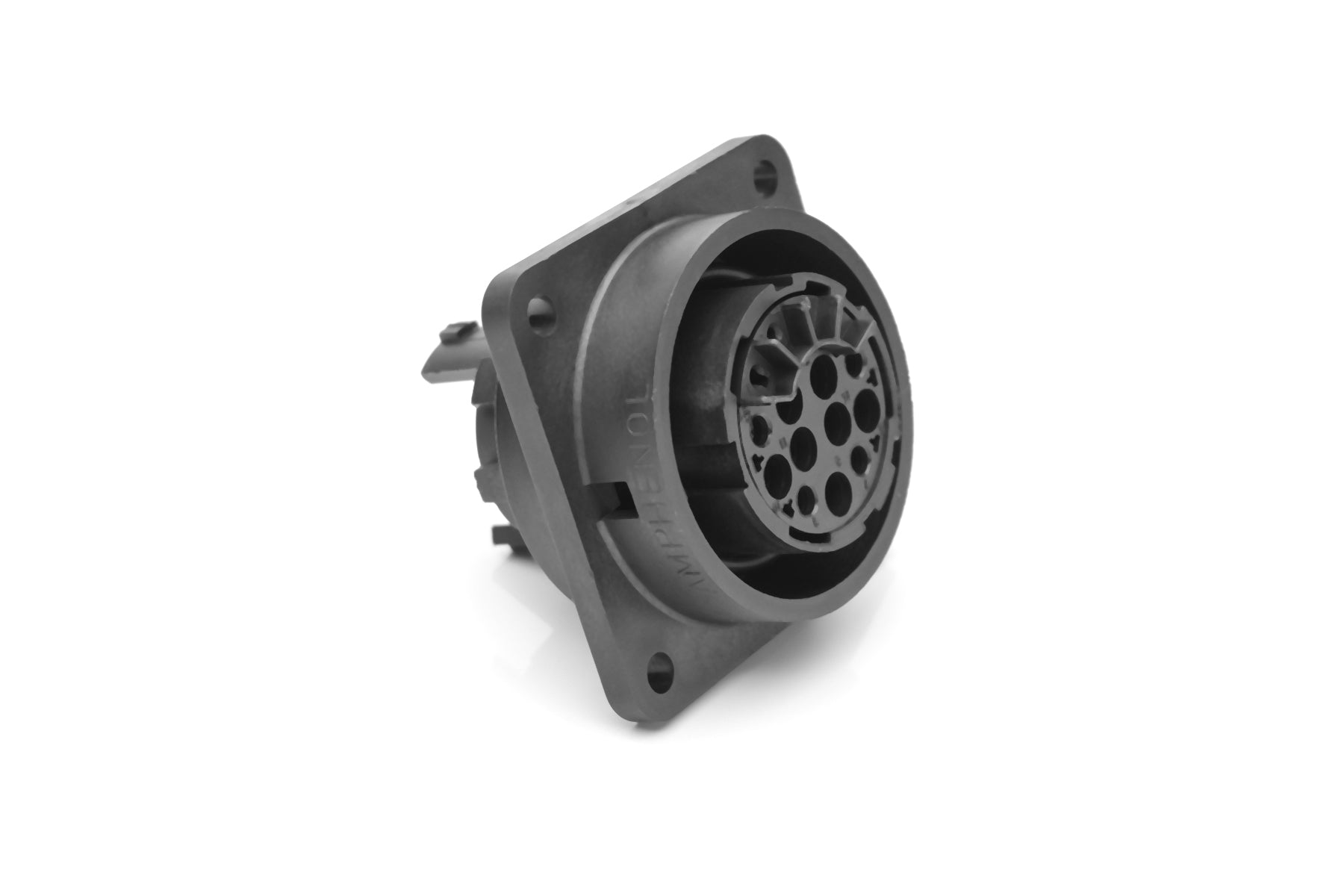

C016 10G014 000 2 14+PE Female receptacle with mounted gasket. Mounting hole Ø43.2. Suitable sealing for fixing screws must be provided. For use with crimp contacts (sold separately).

Name: C016 10G014 000 2 14+PE Female receptacle with mounted gasket. Mounting hole Ø43.2. Suitable sealing for fixing screws must be provided. For use with crimp contacts (sold separately).
Brand: Amphenol Australia
SKU: C01610G0140002
Availability: InStock

IMAGE MAY DIFFER

SKU:C01610G0140002

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet

Specifications

Style: G
Current Carrying Capacity: 4 x 6A, 11 x 12A
Current Rating: 12A
Contact Size: 1.6mm
Contact Quantity: 15
IP Rating: IP65
Contact Plating: Silver/Gold
Termination: Crimp
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Housing Material: Polyamid 6.6
Wire Range: 0.09 - 2.5mm² (28-14 AWG)
Shape: circular View full details
