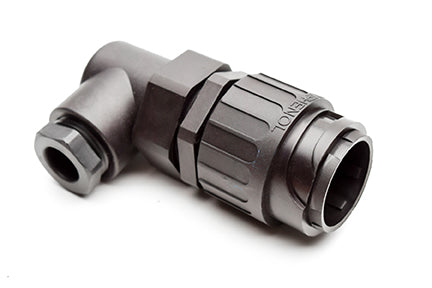

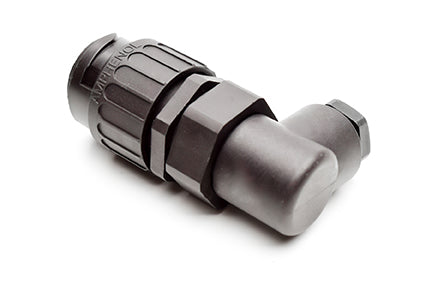

C016 10K014 002 1 14+PE Male cable connector with strain relief and clamping ring. For use with crimp contacts (sold separately).

C016 10K014 002 1 14+PE Male cable connector with strain relief and clamping ring. For use with crimp contacts (sold separately).

IMAGE MAY DIFFER

C01610K0140021

$0.00 AUD
$0.00 AUD
Sale Sold out

Downloads

Stock Level

0 Datasheet

Specifications


Style: K
Current Carrying Capacity: 11 x 6A, 4 x 16A
Current Rating: 16A
Contact Size: 1.5mm
Contact Quantity: 15
IP Rating: IP65
Contact Plating: Silver/Gold
Termination: Crimp
Insulation Resistance: ≥ 10(8)  Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Housing Material: Polyamid 6.6
Wire Range: 0.09 - 2.5mm² (28-14 AWG)
Shape: circular View full details
