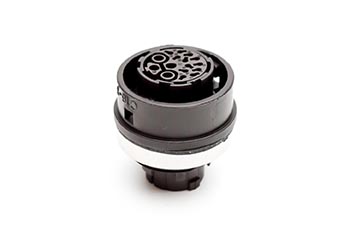

C016 10N015 006 1 12+3+PE Female receptacle with mounted gasket. Mounting hole Ø26.2. Suitable sealing for screws must be provided. For use with crimp contacts (sold separately).

Name: C016 10N015 006 1 12+3+PE Female receptacle with mounted gasket. Mounting hole Ø26.2. Suitable sealing for screws must be provided. For use with crimp contacts (sold separately).
Brand: Amphenol Australia
SKU: C01610N0150061
Availability: InStock

IMAGE MAY DIFFER

SKU:C01610N0150061

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet

Specifications

Style: N
Current Carrying Capacity: 4 x 12A, 12 x 6A
Current Rating: 16A
Contact Size: 1.6mm
Contact Quantity: 16
IP Rating: IP65
Contact Plating: Silver/Gold
Termination: Crimp
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Housing Material: Polyamid 6.6
Wire Range: 0.09 - 2.5mm² (28-14 AWG)
Shape: circular View full details
