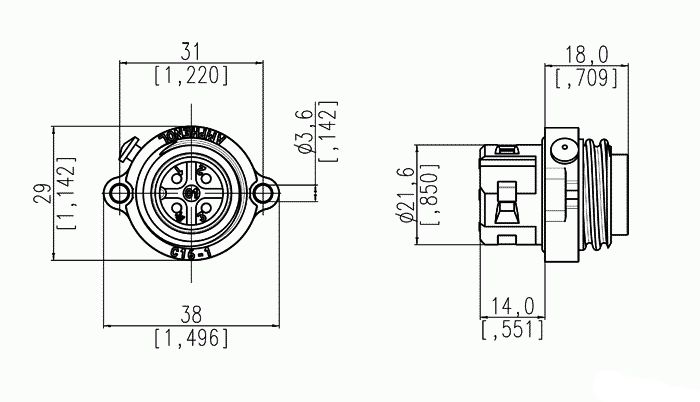

C016 20C003 200 12 3+PE Male receptacle with field installable screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Crimp contacts sold separately. Available in gold or silver plating.
C016 20C003 200 12 3+PE Male receptacle with field installable screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Crimp contacts sold separately. Available in gold or silver plating.
IMAGE MAY DIFFER
SKU:
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
Gender: Male
Current Carrying Capacity: 16A
Contact Quantity: 4
Colour: Black
IP Rating: IP65/67
Contact Plating: Gold
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +100°C
Housing Material: PA 6.6 / PA6
Mating Part: C01620D00320010,C01620D00320012,C01620D00321010,C01620D00321012,C01620F00320012
Wire Range: 2.5mm² (14 AWG)
Shape: circular
3+PE Male receptacle with field installable screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Crimp contacts sold separately. Available in gold or silver plating.
