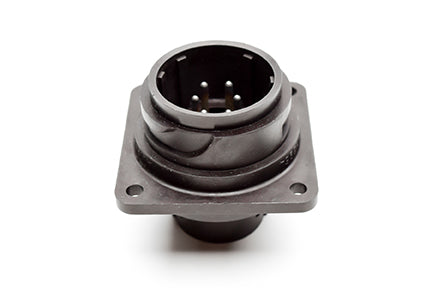

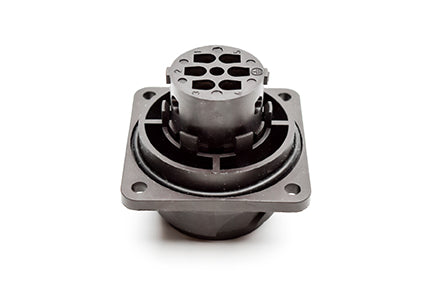

C016 20C005 100 2 5+PE Male receptacle with mounted gasket. Mounting hole Ø43.2. Suitable sealing for fixing screws must be provided. Contacts included.

Name: C016 20C005 100 2 5+PE Male receptacle with mounted gasket. Mounting hole Ø43.2. Suitable sealing for fixing screws must be provided. Contacts included.
Brand: Amphenol Australia
SKU: C01620C0051002
Availability: InStock

IMAGE MAY DIFFER

SKU:C01620C0051002

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet

Specifications

Style: C
Current Carrying Capacity: 21A
Current Rating: 21A
Contact Size: 2.5mm
Contact Quantity: 6
IP Rating: IP65
Contact Plating: Silver/Gold
Termination: Screw
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +100°C
Mating Cycle Durability: ≥ 500 mating cycles
Housing Material: Polyamid 6.6
Wire Range: 4.0mm² (12 AWG)
Shape: circular View full details
