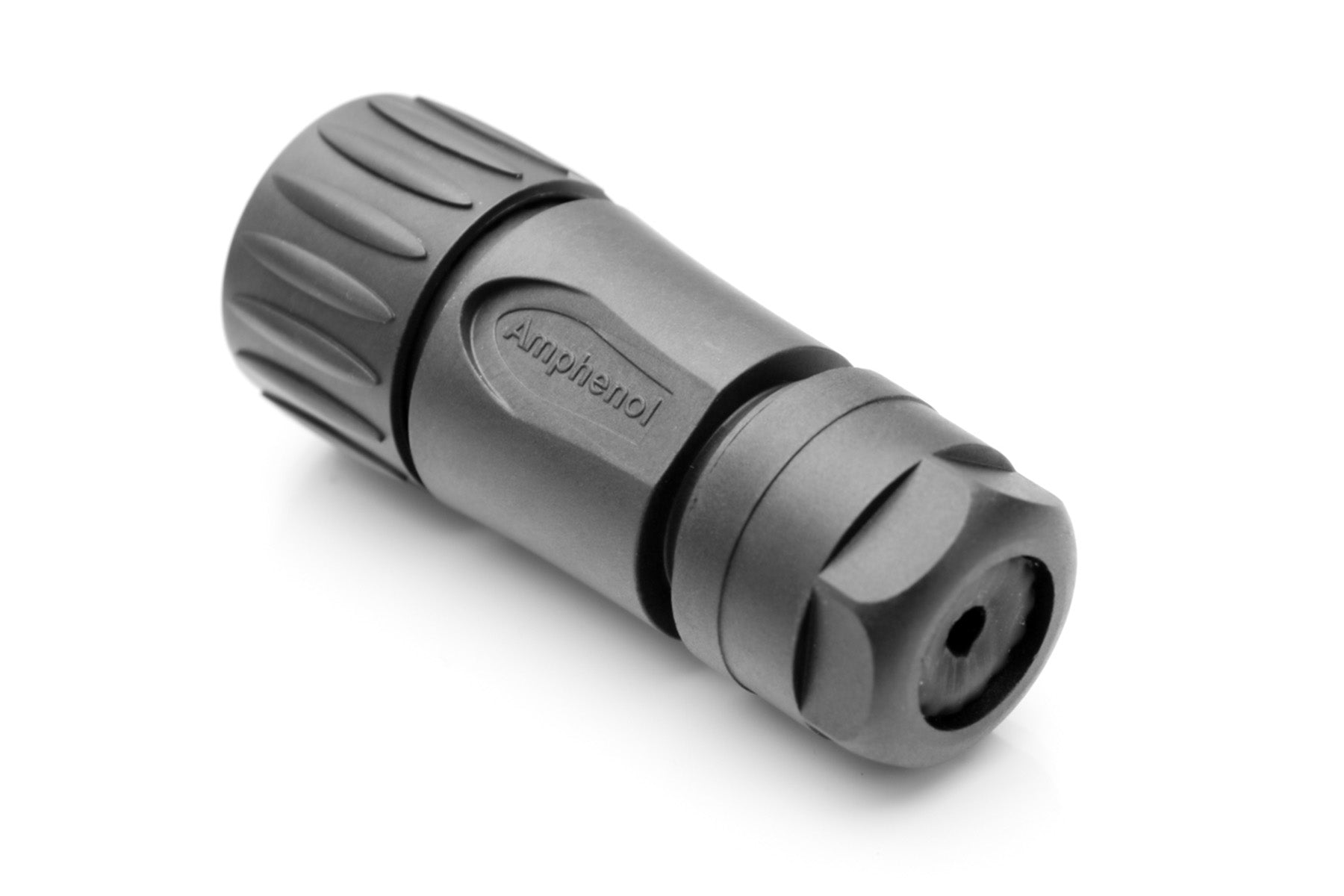

C016 20D003 100 12 3+PE Female straight cable connector with strain relief and clamping ring. Field installable screw termination.. Comparable part no: 99-0210-15-04, CA3LD
C016 20D003 100 12 3+PE Female straight cable connector with strain relief and clamping ring. Field installable screw termination.. Comparable part no: 99-0210-15-04, CA3LD
IMAGE MAY DIFFER
SKU:
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
Style: Straight
Gender: Female
Current Carrying Capacity: 16A
Contact Quantity: 4
Colour: Black
IP Rating: IP65/67
Contact Plating: Silver
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +100°C
Housing Material: PA 6.6 / PA6
Mating Part: C01620C00310012,C01620H00310010,C01620H00310012,C01620H00311010,C01620H00311012,C01620H00320010,C01620H00320012,C01620H00321010,C01620H00321012,C01620K00310010,C01620K00310012
Wire Range: 0.75 - 2.5mm² (18-14 AWG)
Shape: circular
3+PE Female straight cable connector with strain relief and clamping ring. Field installable screw termination.
