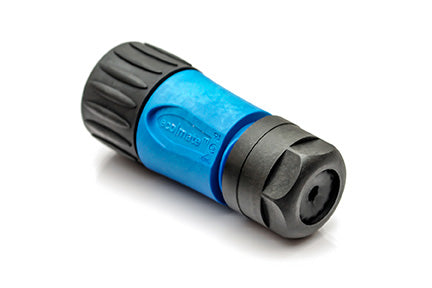

C016 30D006 200 10 6+PE Female straight cable connector with strain relief and clamping ring
C016 30D006 200 10 6+PE Female straight cable connector with strain relief and clamping ring
IMAGE MAY DIFFER
SKU:
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
Style: Straight
Gender: Female
Current Carrying Capacity: 12A
Contact Size: 1.6mm
Contact Quantity: 7
Colour: Blue
IP Rating: IP65/67
Contact Plating: Gold
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +125°C
Housing Material: PA 6.6 / PA6
Mating Part: C01630C00610012,C01630C00620012,C01630H00610010,C01630H00610012,C01630H00611010,C01630H00611012,C01630H00620010,C01630H00620012,C01630H00621010,C01630H00621012,C01630K00610010,C01630K00610012,C01630K00620010
Wire Range: Max. 0.75mm² (18 AWG)
Shape: circular
6+PE Female straight cable connector with strain relief and clamping ring
