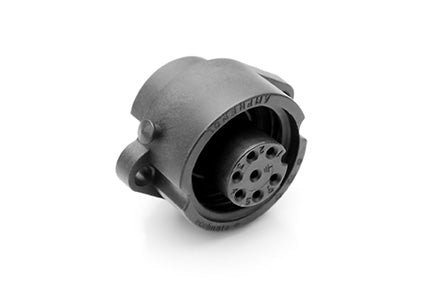

C016 30G006 200 12 6+PE Female receptacle with solder termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
C016 30G006 200 12 6+PE Female receptacle with solder termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
IMAGE MAY DIFFER
SKU:
Couldn't load pickup availability
Downloads
Datasheet3D Model
Specifications
Gender: Female
Current Carrying Capacity: 12A
Contact Size: 1.6mm
Contact Quantity: 7
Colour: Black
IP Rating: IP65/67
Contact Plating: Gold
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +125°C
Housing Material: PA 6.6 / PA6
Mating Part: C01630H00620010,C01630H00620012,C01630H00621010,C01630H00621012,C01630K00620010
Wire Range: Max. 0.75mm² (18 AWG)
Shape: circular
6+PE Female receptacle with solder termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary
