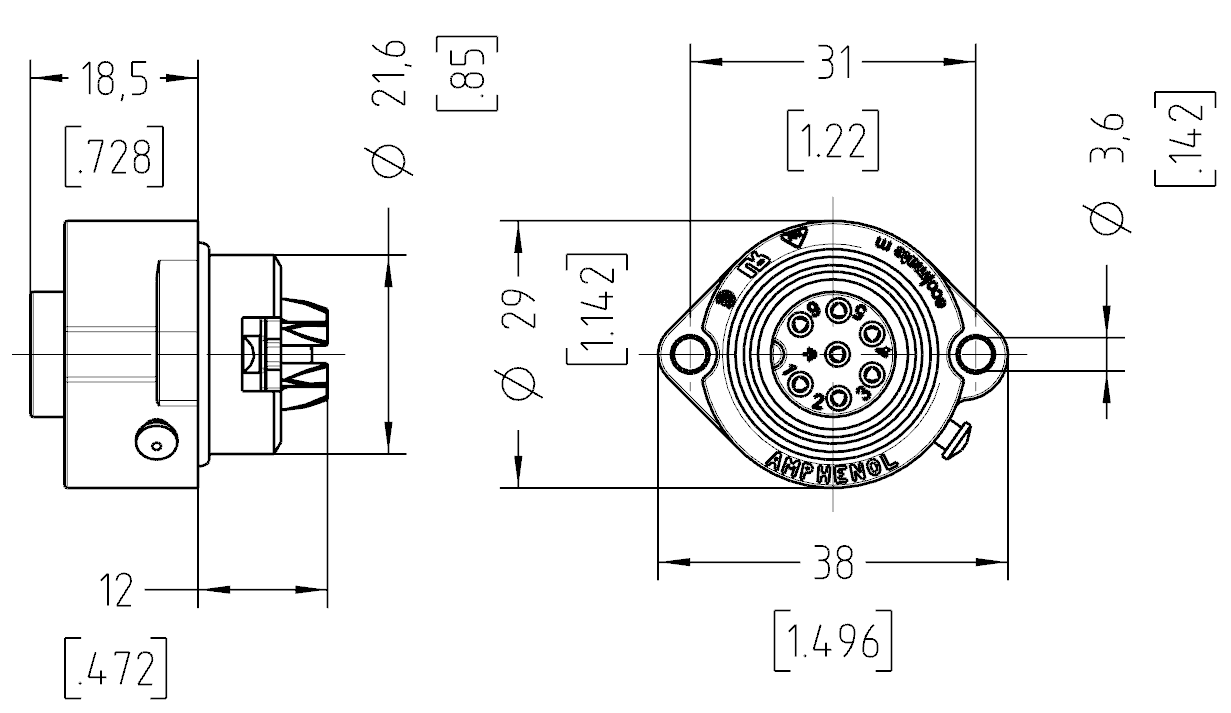

C016 30G006 800 12 6+ PE Female receptacle, solder with turned contacts, black
C016 30G006 800 12 6+ PE Female receptacle, solder with turned contacts, black
IMAGE MAY DIFFER
SKU:
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
5Downloads
Datasheet3D Model
Specifications
Gender: Female
Current Carrying Capacity: 12A
Contact Quantity: 7
Colour: Black
IP Rating: IP65/67
Contact Plating: Silver
Operating Temperature: -40°C to +125°C
Housing Material: PA 6.6 / PA6
Mating Part: C01630H00610010,C01630H00610012,C01630H00611010,C01630H00611012,C01630H00620010,C01630H00620012,C01630H00621010,C01630H00621012,C01630K00610010,C01630K00610012,C01630K00620010
Wire Range: Max. 0.75mm² (18 AWG)
Shape: circular
6+ PE Female receptacle, solder with turned contacts, black
