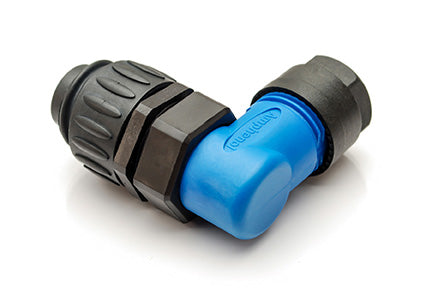

C016 30K006 100 10 6+PE Male, right angled cable connector with strain relief and clamping ring. Comparable part no: 99-4225-70-07, CA6WLS
C016 30K006 100 10 6+PE Male, right angled cable connector with strain relief and clamping ring. Comparable part no: 99-4225-70-07, CA6WLS
IMAGE MAY DIFFER
SKU:
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
Style: Right angle
Gender: Male
Current Carrying Capacity: 12A
Contact Size: 1.6mm
Contact Quantity: 7
Colour: Blue
IP Rating: IP65/67
Contact Plating: Silver
Insulation Resistance: ≥ 10(8) Ω
Operating Temperature: -40°C to +125°C
Housing Material: PA 6.6 / PA6
Mating Part: C01630D00610010,C01630D00610012,C01630D00611010,C01630D00611012,C01630D00620010,C01630D00620012,C01630D00621010,C01630D00621012,C01630D00680012,C01630F00610010,C01630F00610012,C01630F00620012,C01630G00610012,C01630G00680012
Wire Range: Max. 0.75mm² (18 AWG)
Shape: circular
6+PE Male, right angled cable connector with strain relief and clamping ring
