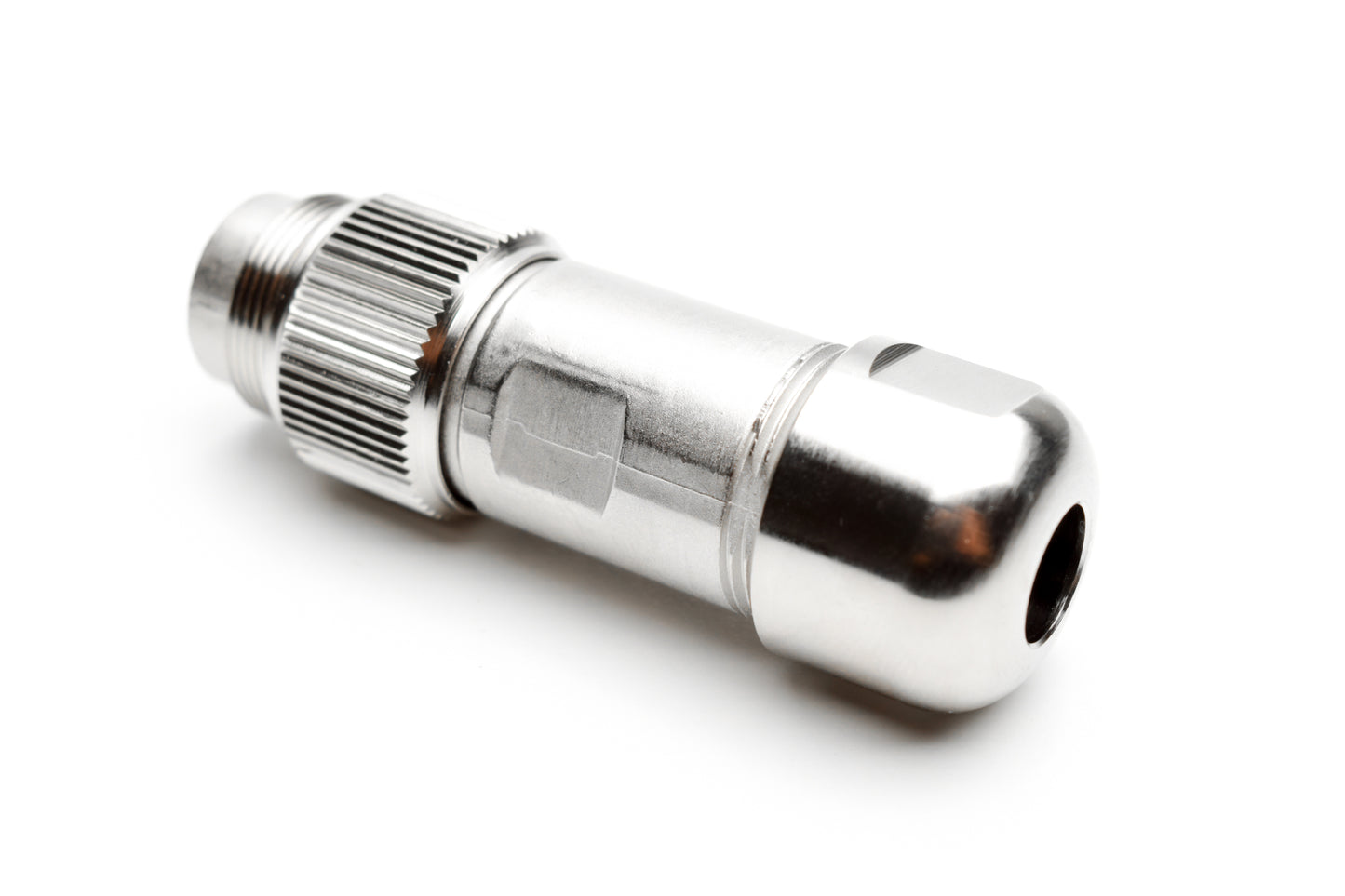

C091 11H008 000 4 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
C091 11H008 000 4 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
IMAGE MAY DIFFER
SKU:C09111H0080004
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 8
Current Rating: 7A
IP Rating: IP68 (in mated condition)
Termination: Crimp
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Zinc die cast, nickel plated
Seal Material: Chloroprene
Mating Part: C09111D0080004,C09111D0080014,C09111D0080024
Shape: circular
Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
