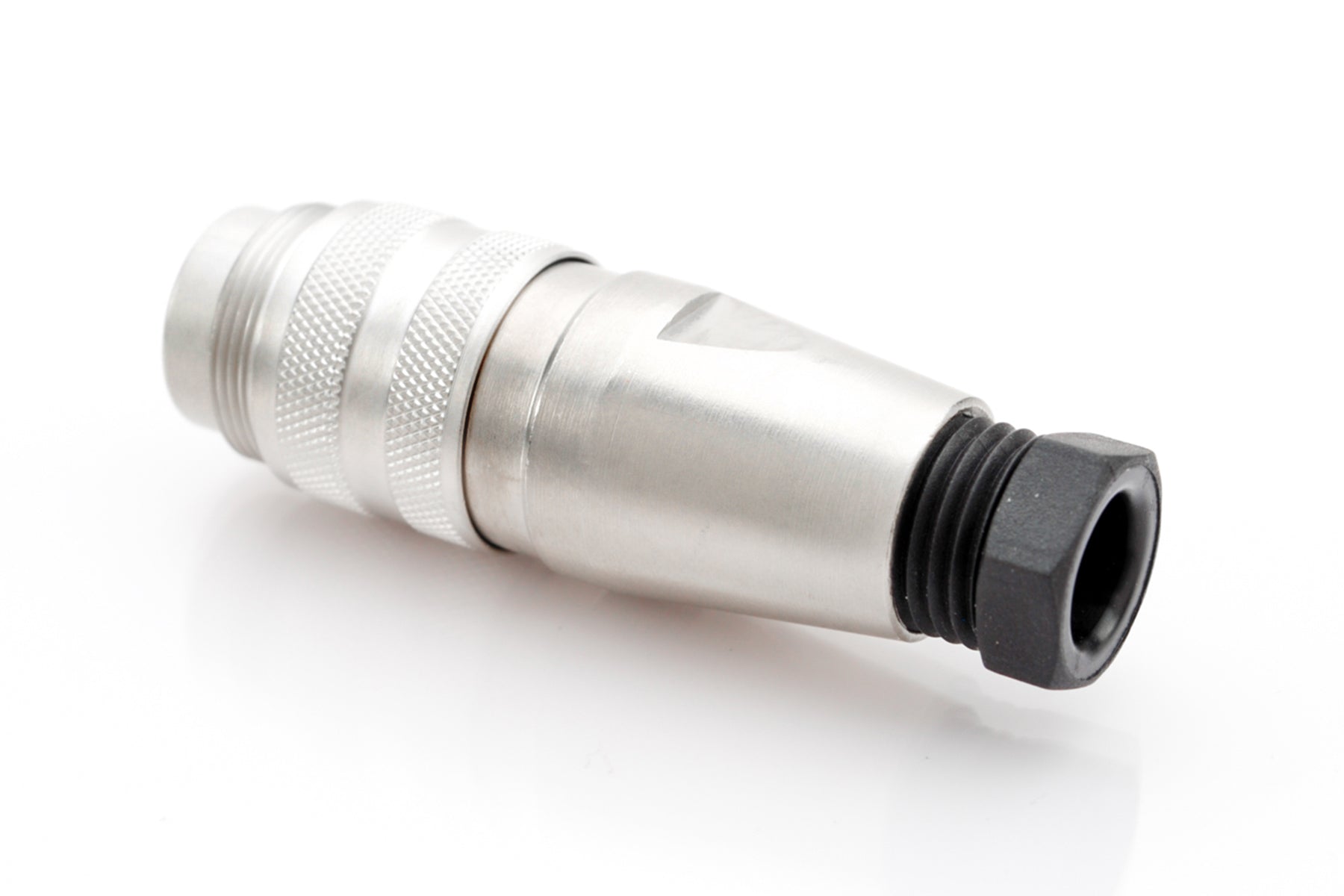

C091 31H006 100 2 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
C091 31H006 100 2 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
IMAGE MAY DIFFER
SKU:C09131H0061002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 6
Current Rating: 7A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131D0061002,C09131D0061012,C09131F0061002,C09131F0061012,C09131G0061002,C09131N0061002,C09131T0061002,C09161C0068032,C09161G0061102,C09161G0061202,C09161G0061302,C09161N0061102,C09161N0061202
Shape: circular
Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
